Volume 51,Issue 10,2022 Table of Contents

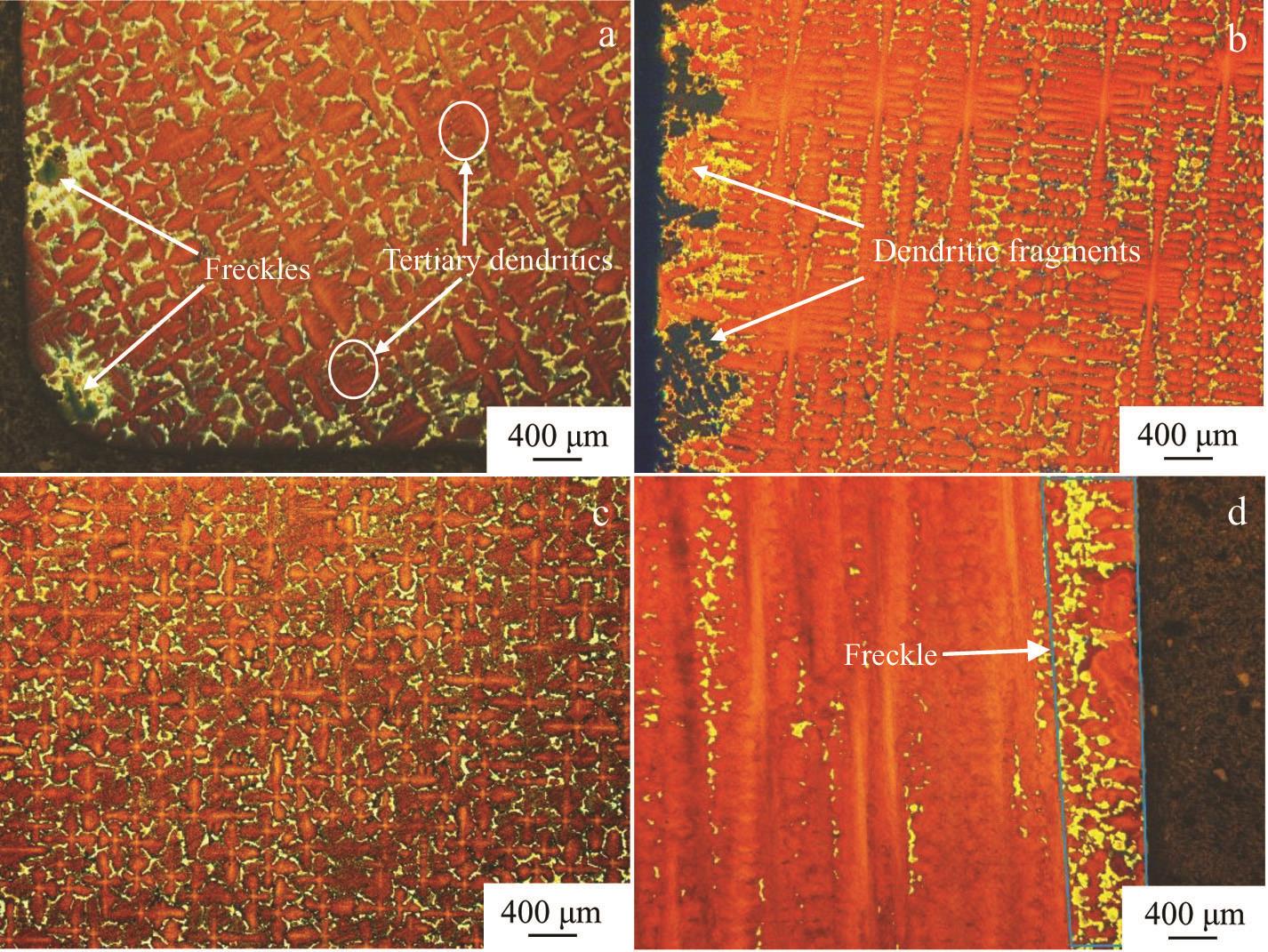

2022, 51(10):3533-3541.
DOI: 10.12442/j.issn.1002-185X.20210889
Abstract:

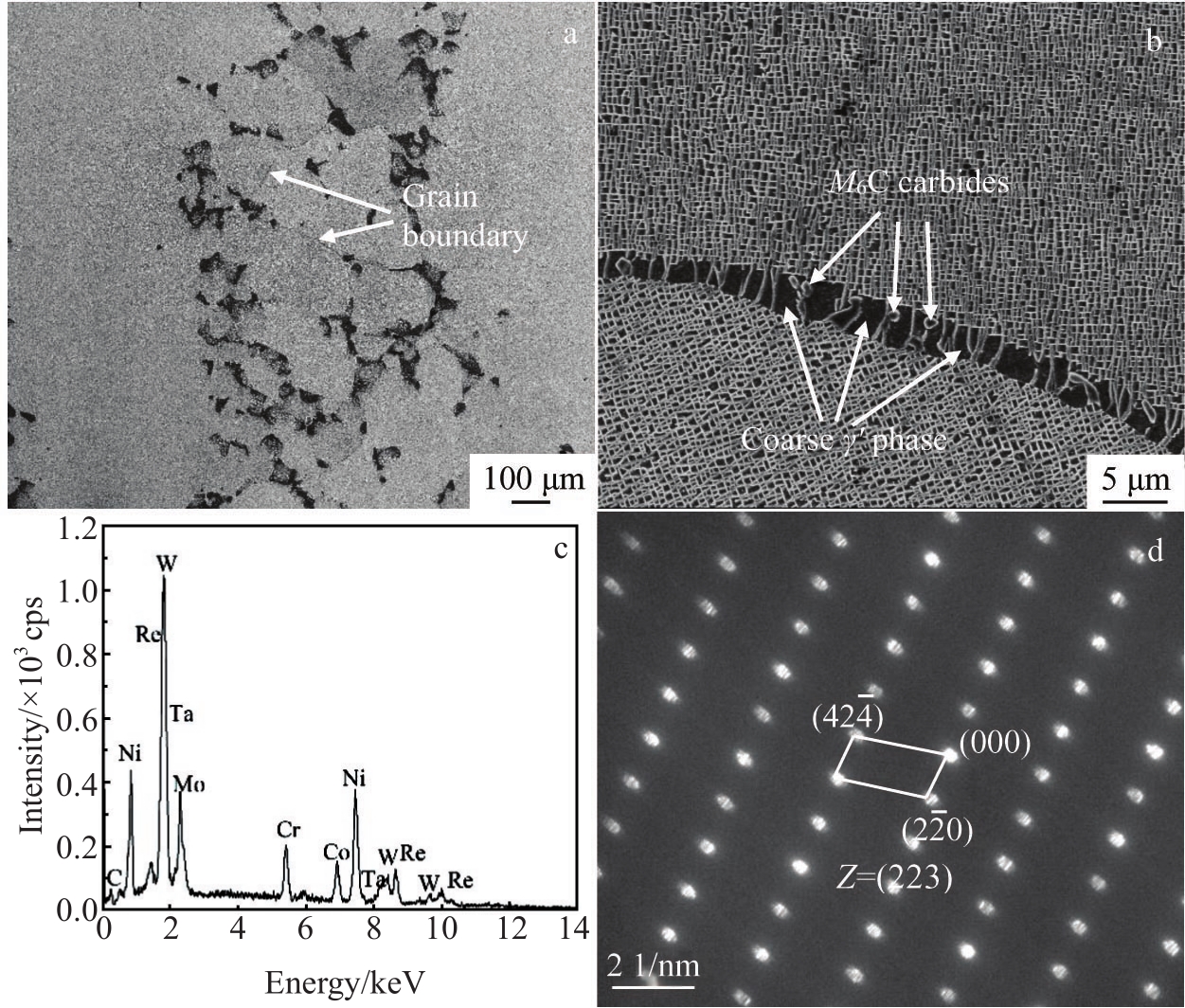

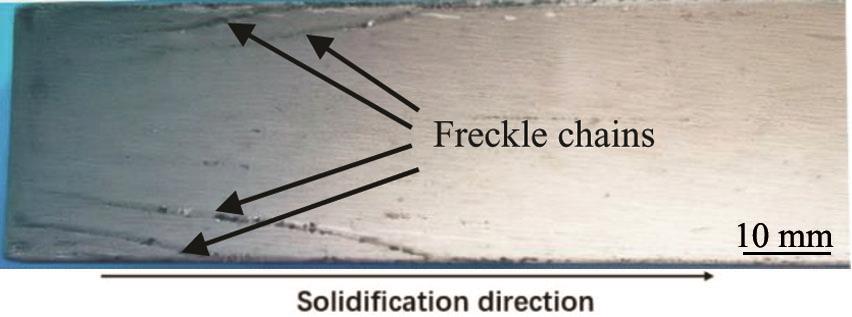

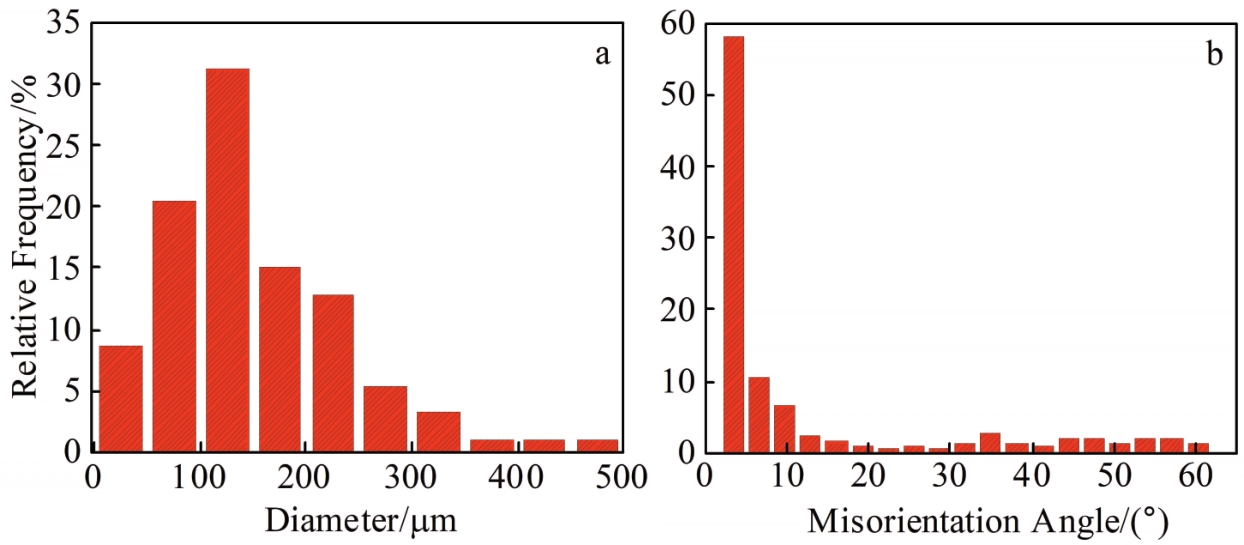

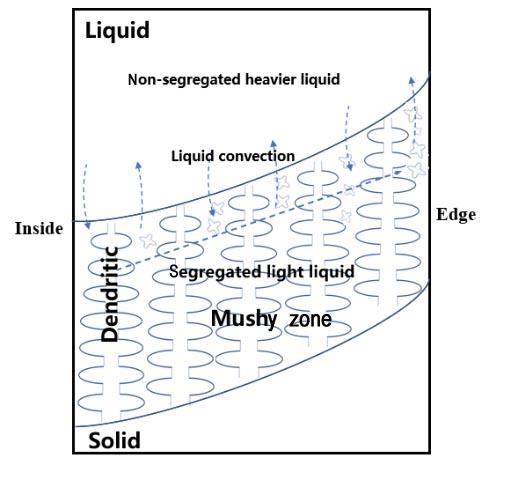

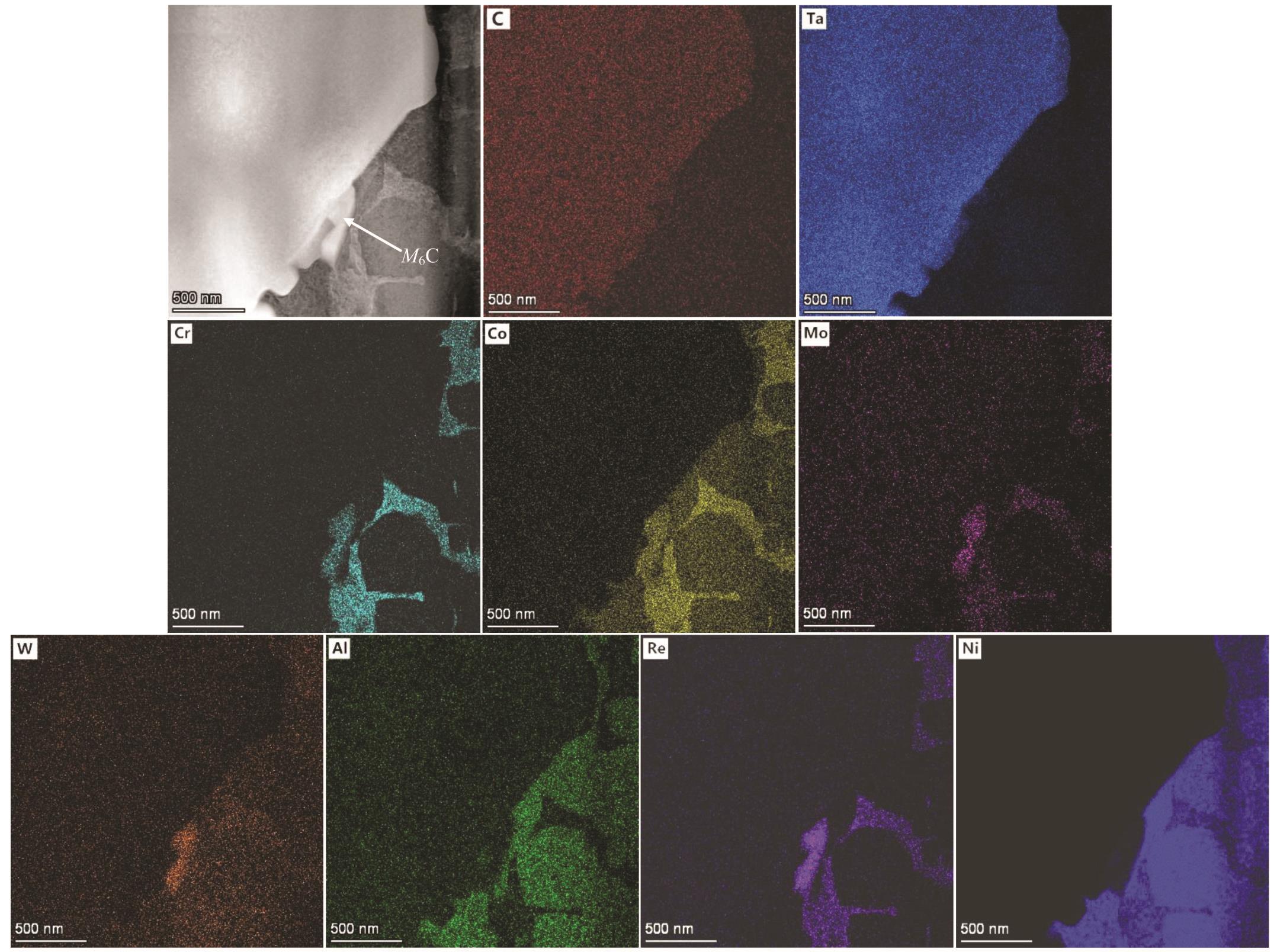

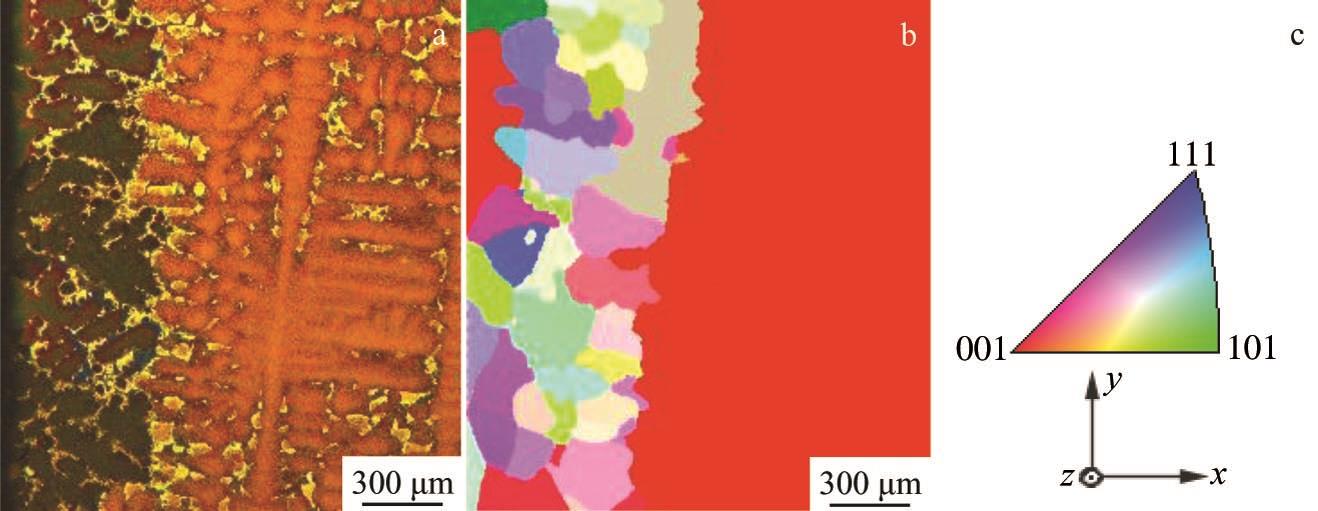

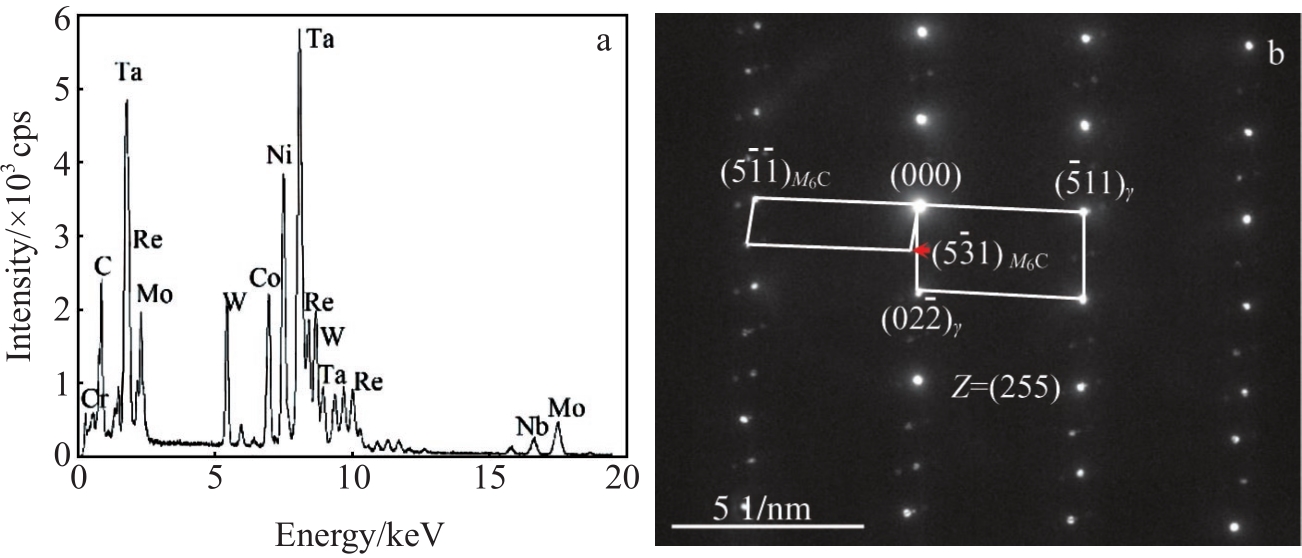

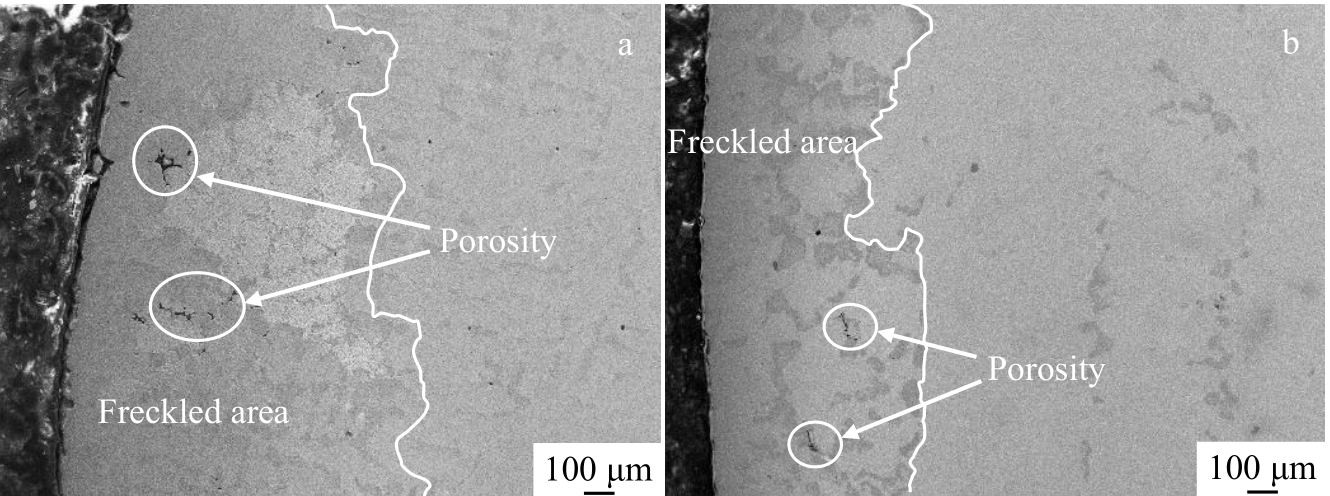

The as-cast microstructure, the heat-treated microstructure and the composition characteristics of freckle chains in the third generation single crystal superalloy DD9 were studied by OM, SEM, EBSD and TEM. The results show that freckles are composed of fine disorder-oriented equiaxed grains. They are in the shape of a chain roughly along the direction of crystal growth and only appear on the surface of single crystal castings. The depth and width of freckle chains are 400~800 μm. Freckled area contains a large amount of γ/γ' eutectics. A certain amount of MC carbides and porosity also appear in as-cast freckled area. After heat treatment, large-size γ' phase and granular M6C phase appear at the equiaxed grain boundary of freckled region. The freckled area contains more Ta and Al, but less Re and W. The composition of the freckled area is similar to the interdendritic composition.
The as-cast microstructure, the heat-treated microstructure and the composition characteristics of freckle chains in the third generation single crystal superalloy DD9 were studied by OM, SEM, EBSD and TEM. The results show that freckles are composed of fine disorder-oriented equiaxed grains. They are in the shape of a chain roughly along the direction of crystal growth and only appear on the surface of single crystal castings. The depth and width of freckle chains are 400~800 μm. Freckled area contains a large amount of γ/γ' eutectics. A certain amount of MC carbides and porosity also appear in as-cast freckled area. After heat treatment, large-size γ' phase and granular M6C phase appear at the equiaxed grain boundary of freckled region. The freckled area contains more Ta and Al, but less Re and W. The composition of the freckled area is similar to the interdendritic composition.

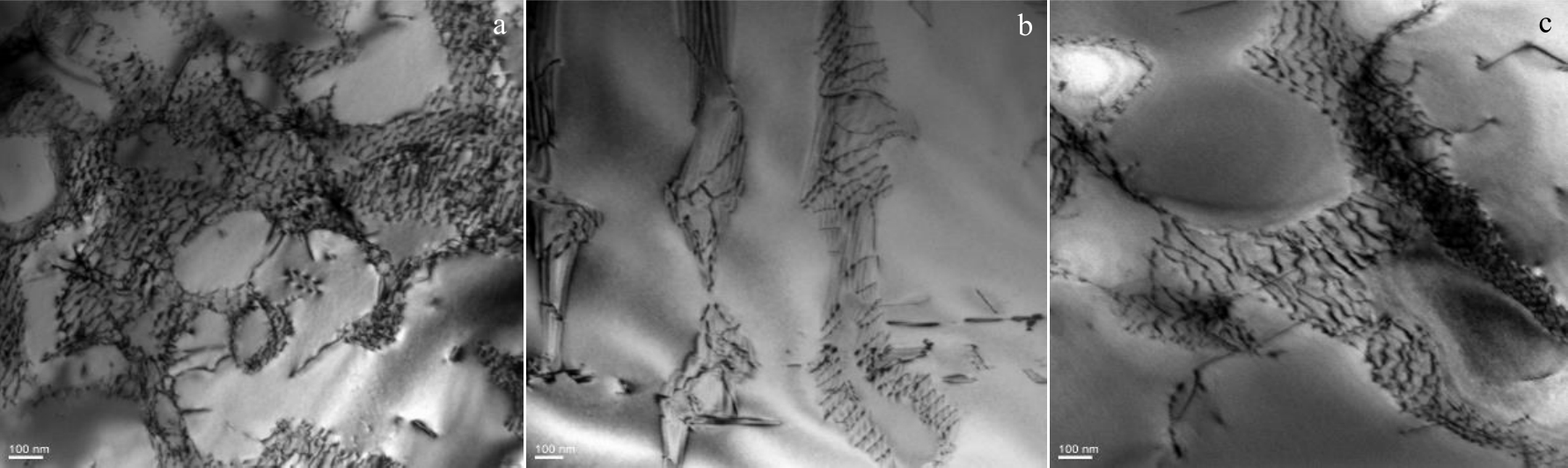

2022, 51(10):3542-3546.
DOI: 10.12442/j.issn.1002-185X.20220197
Abstract:

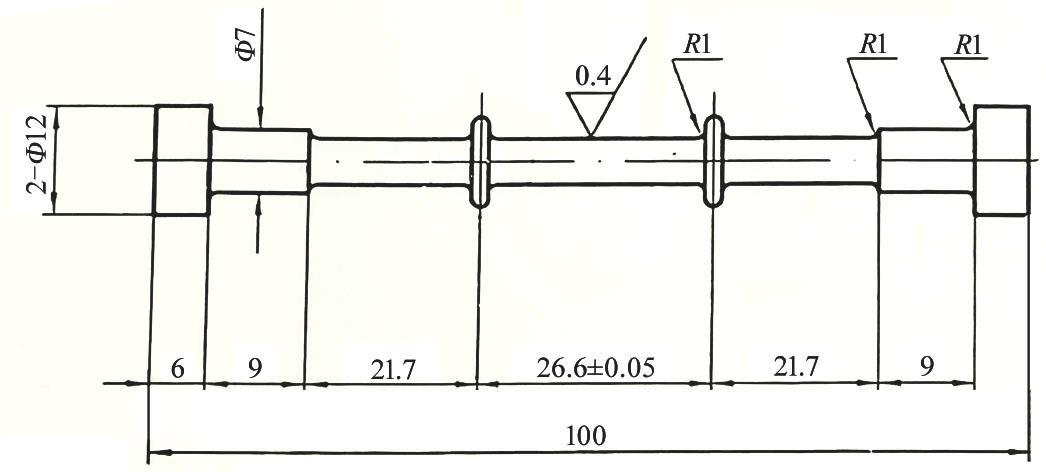

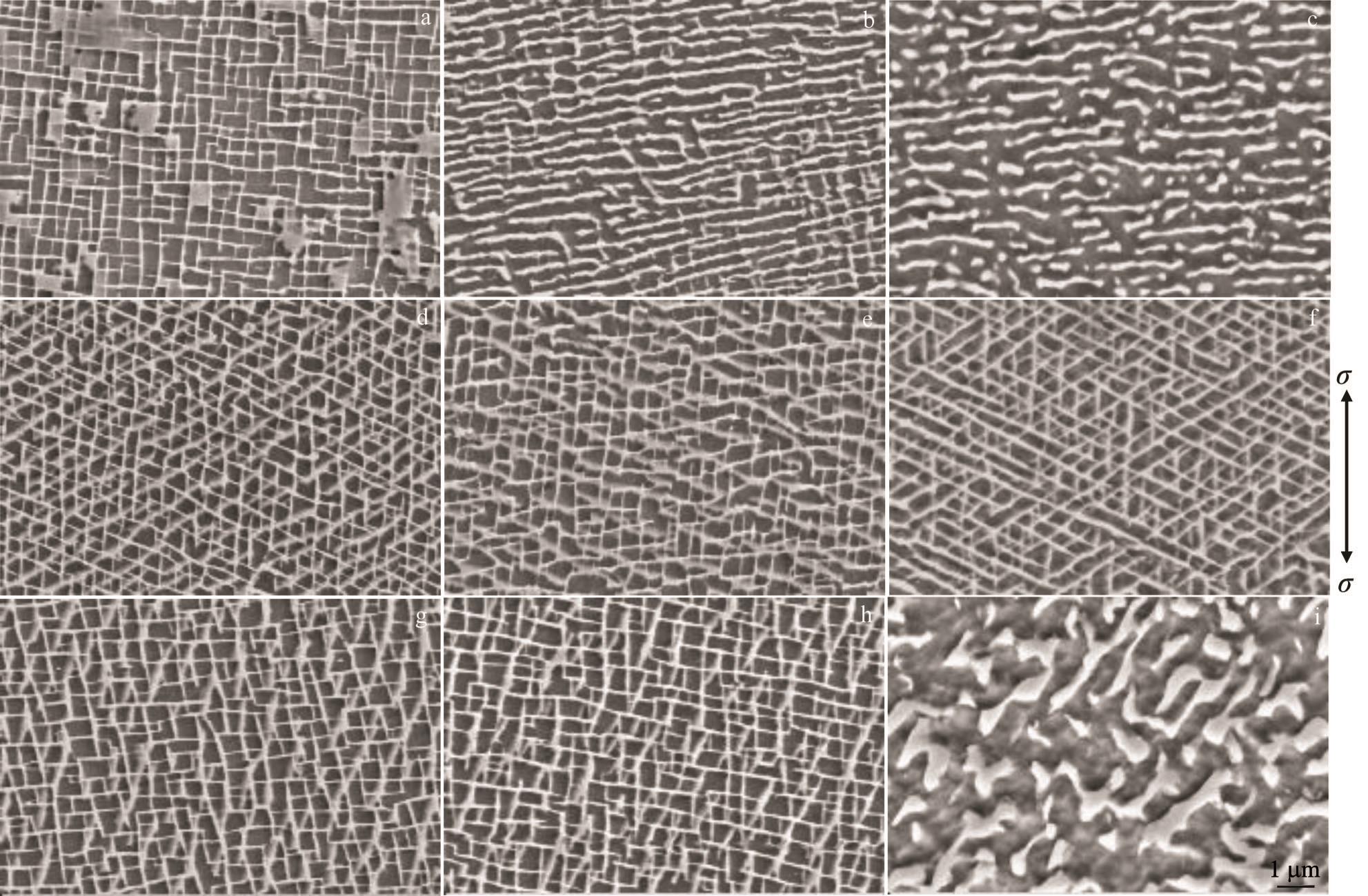

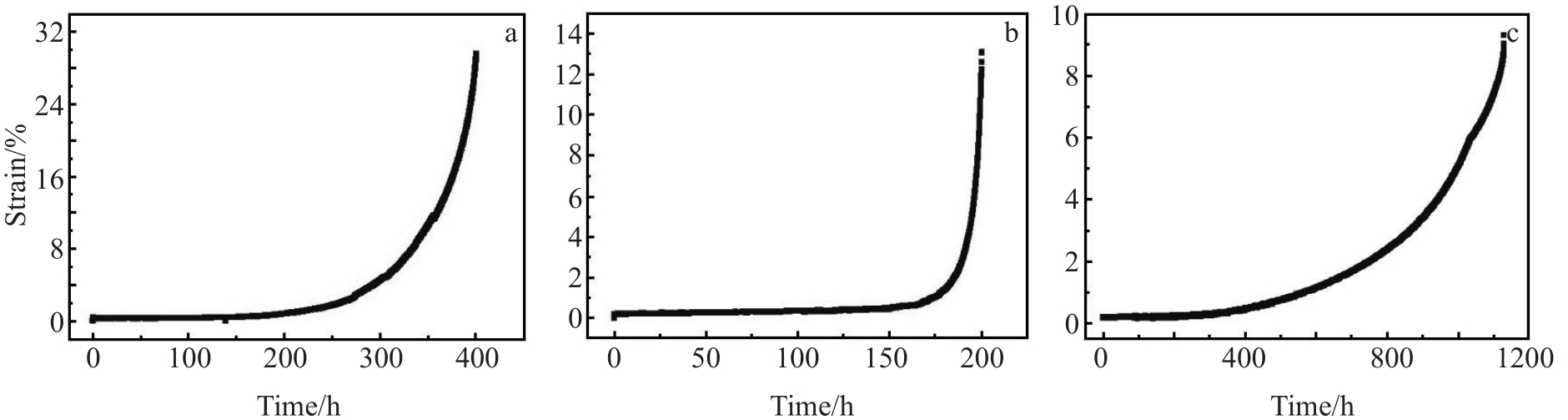

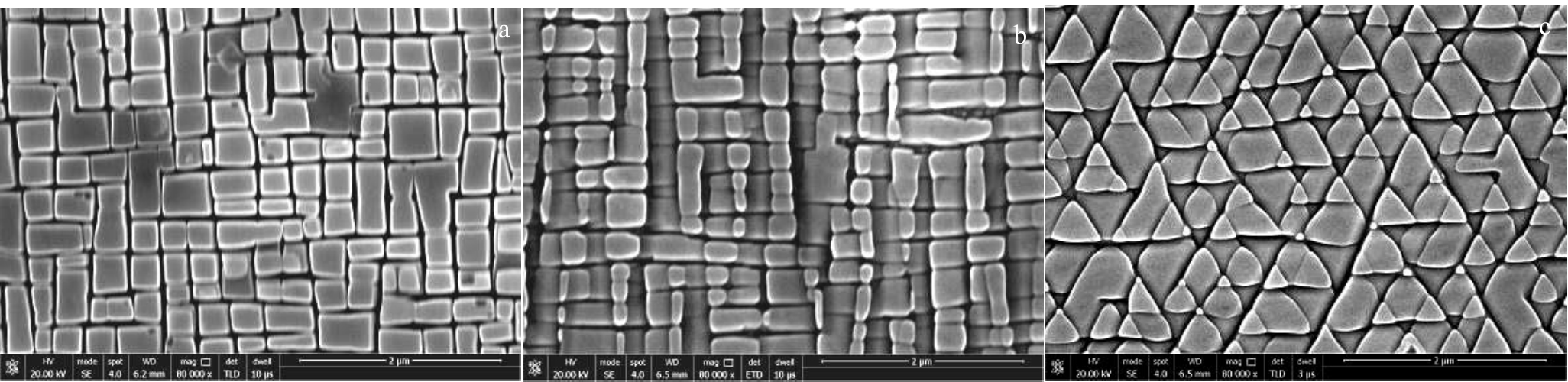

DD15 single crystal superalloy with [001], [011] and [111] orientations was cast by seed method in the directional solidified furnace. The creep properties of the alloy with different orientations were investigated at 980 °C/300 MPa. In order to obtain the microstructure evolution after different creep time, the creep after 50 and 100 h and the creep fracture of three kinds of tests were investigated. The alloy microstructure with different orientations were investigated by SEM and TEM. The results show that the alloy with different orientations has obviously various microstructure characteristics on the section perpendicular to the crystal growth direction. The γ′ phase with [001] orientation is regular square, that with [011] orientation is rectangular, and that with [111] orientation is polygon. The creep properties of the alloy exhibit obvious anisotropy at 980 °C/300 MPa. The creep life of the alloy decreases in the sequence of [111], [001] and [011] orientation. The creep strain of the alloy under different conditions decreases in the sequence of [001], [011] and [111] orientation. The common feature of the creep curves is a very short primary creep stage. Compared with creep curves of the [001] and [111] orientation, the creep curve of [011] orientation has a shorter third creep stage. The degree of γ′ coarsening is obviously different for alloy with different orientations after creep. The rafting speed of [001] oriented sample is larger than that of [011] and [111] oriented sample. After creep fracture, the dislocation network of [001] or [111] oriented alloy is denser and better than that of [011] oriented alloy.
DD15 single crystal superalloy with [001], [011] and [111] orientations was cast by seed method in the directional solidified furnace. The creep properties of the alloy with different orientations were investigated at 980 °C/300 MPa. In order to obtain the microstructure evolution after different creep time, the creep after 50 and 100 h and the creep fracture of three kinds of tests were investigated. The alloy microstructure with different orientations were investigated by SEM and TEM. The results show that the alloy with different orientations has obviously various microstructure characteristics on the section perpendicular to the crystal growth direction. The γ′ phase with [001] orientation is regular square, that with [011] orientation is rectangular, and that with [111] orientation is polygon. The creep properties of the alloy exhibit obvious anisotropy at 980 °C/300 MPa. The creep life of the alloy decreases in the sequence of [111], [001] and [011] orientation. The creep strain of the alloy under different conditions decreases in the sequence of [001], [011] and [111] orientation. The common feature of the creep curves is a very short primary creep stage. Compared with creep curves of the [001] and [111] orientation, the creep curve of [011] orientation has a shorter third creep stage. The degree of γ′ coarsening is obviously different for alloy with different orientations after creep. The rafting speed of [001] oriented sample is larger than that of [011] and [111] oriented sample. After creep fracture, the dislocation network of [001] or [111] oriented alloy is denser and better than that of [011] oriented alloy.

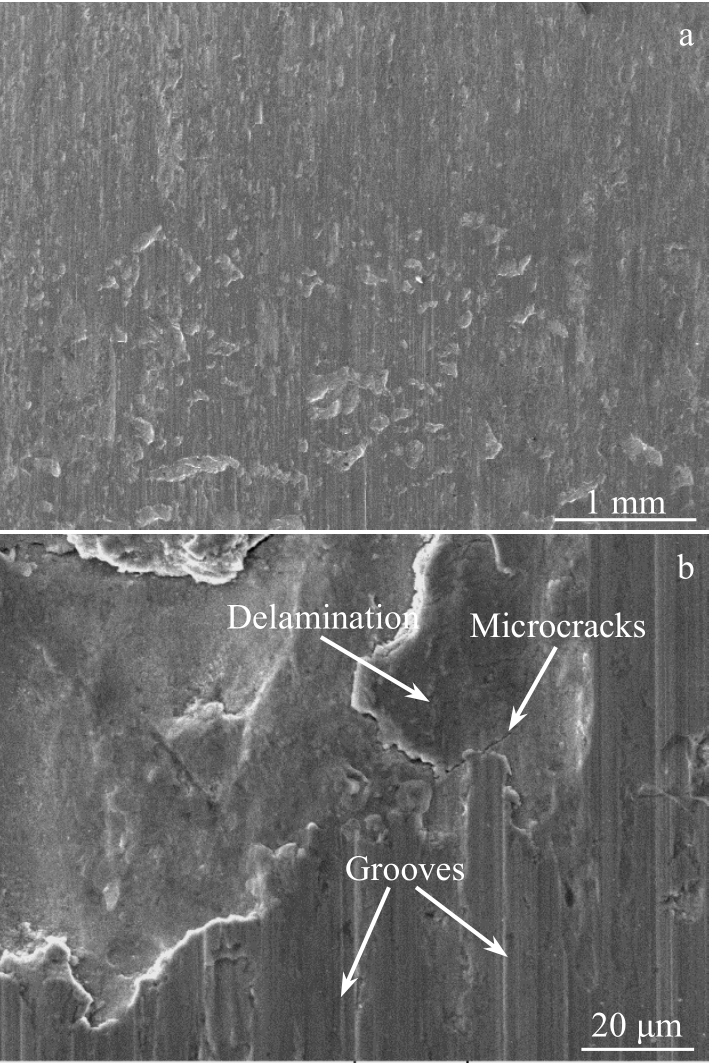

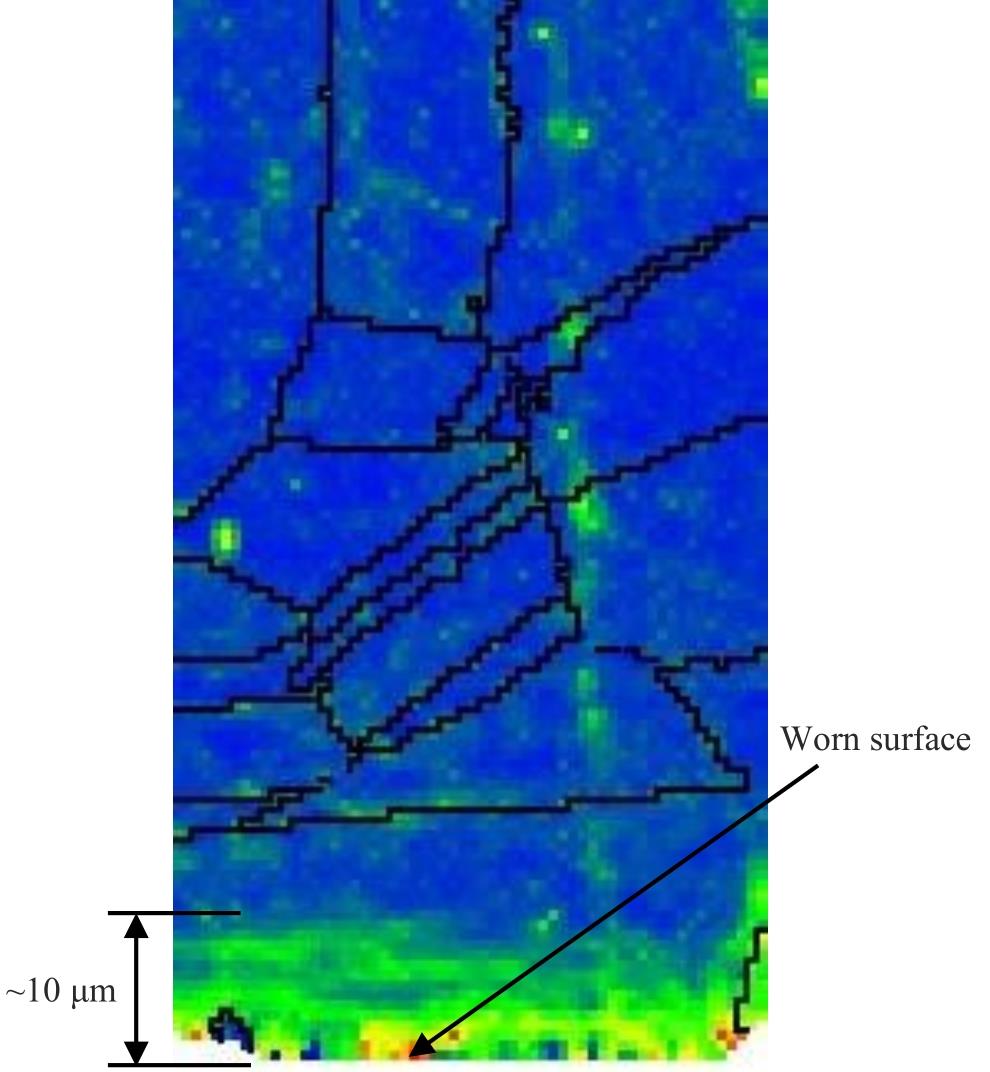

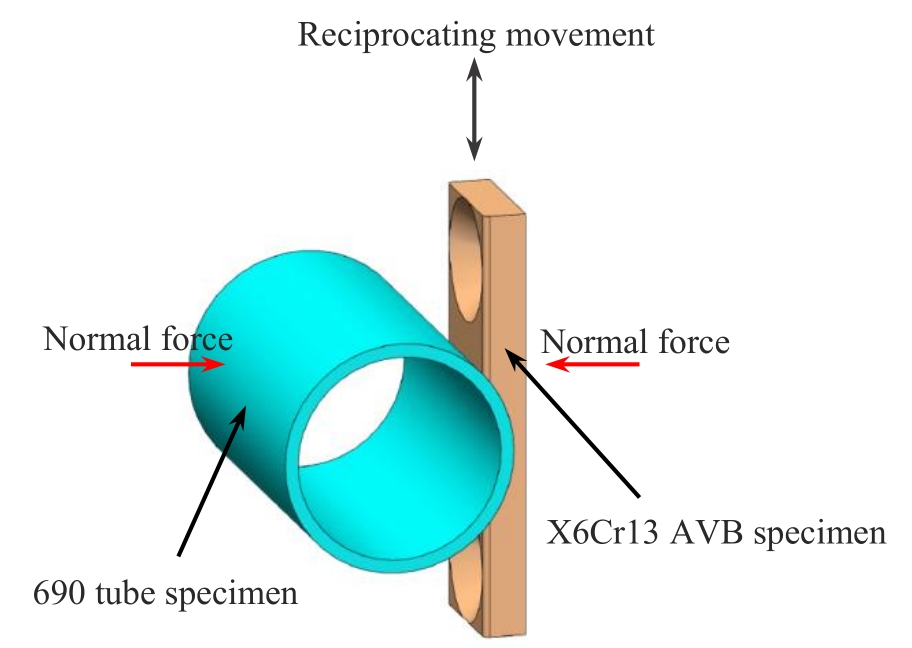

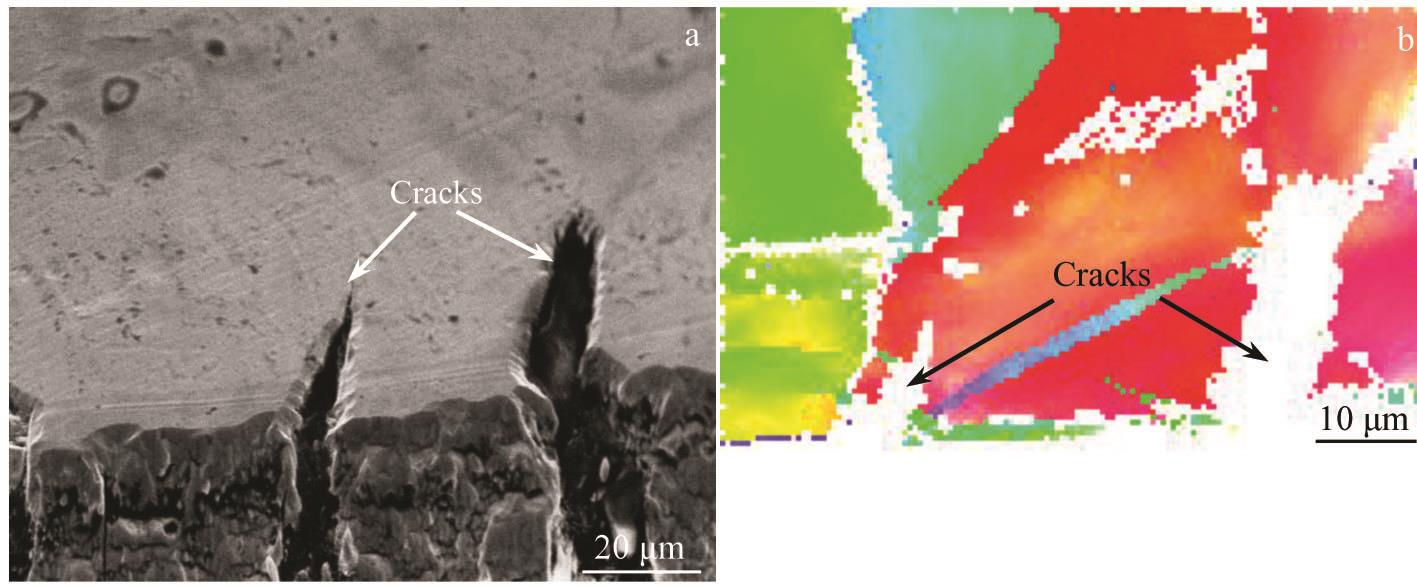

3 Effects of Wear on Stress Corrosion Cracking Initiation Behavior of Alloy 690 Steam Generator Tubes
2022, 51(10):3547-3553.
DOI: 10.12442/j.issn.1002-185X.20210820
Abstract:

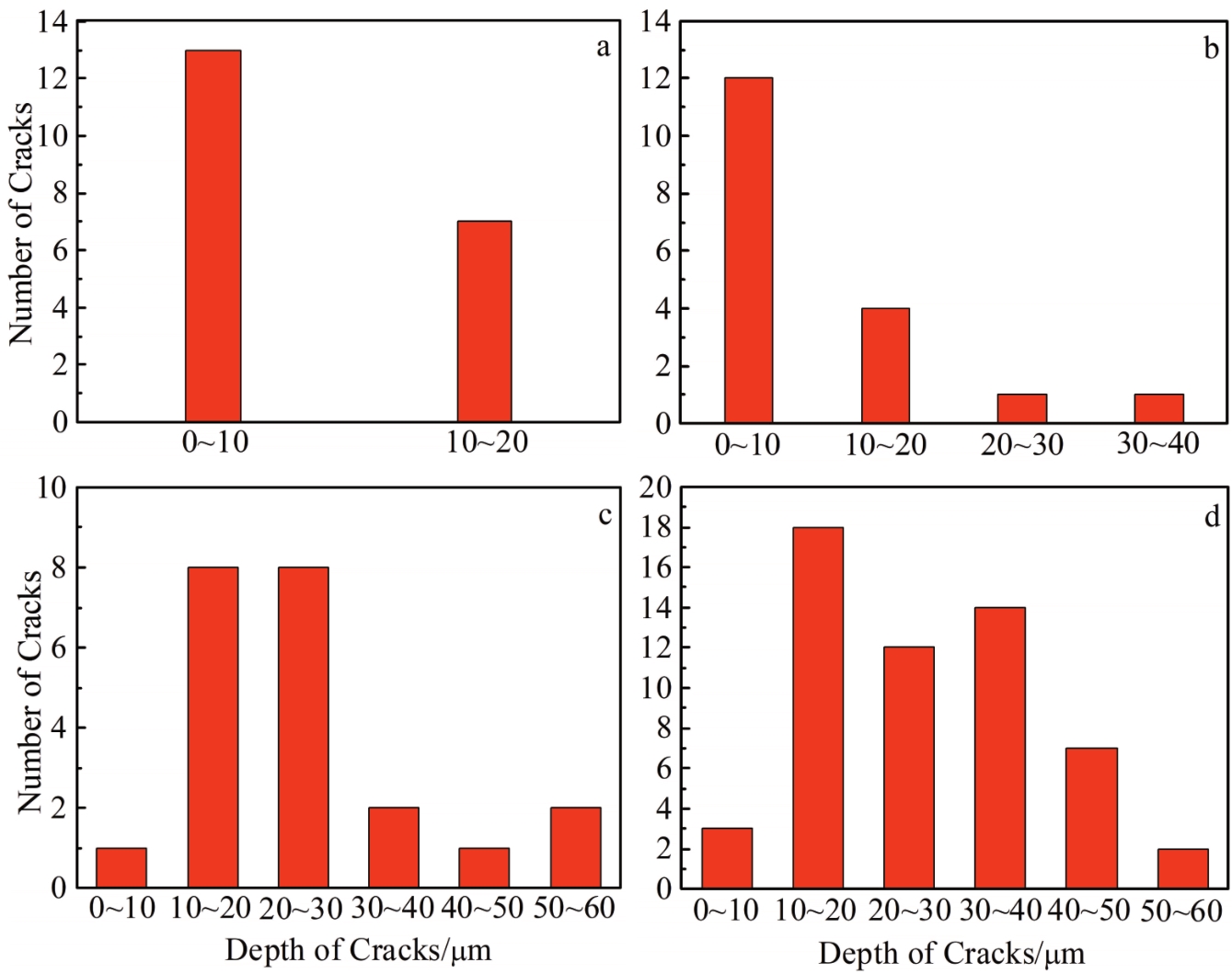

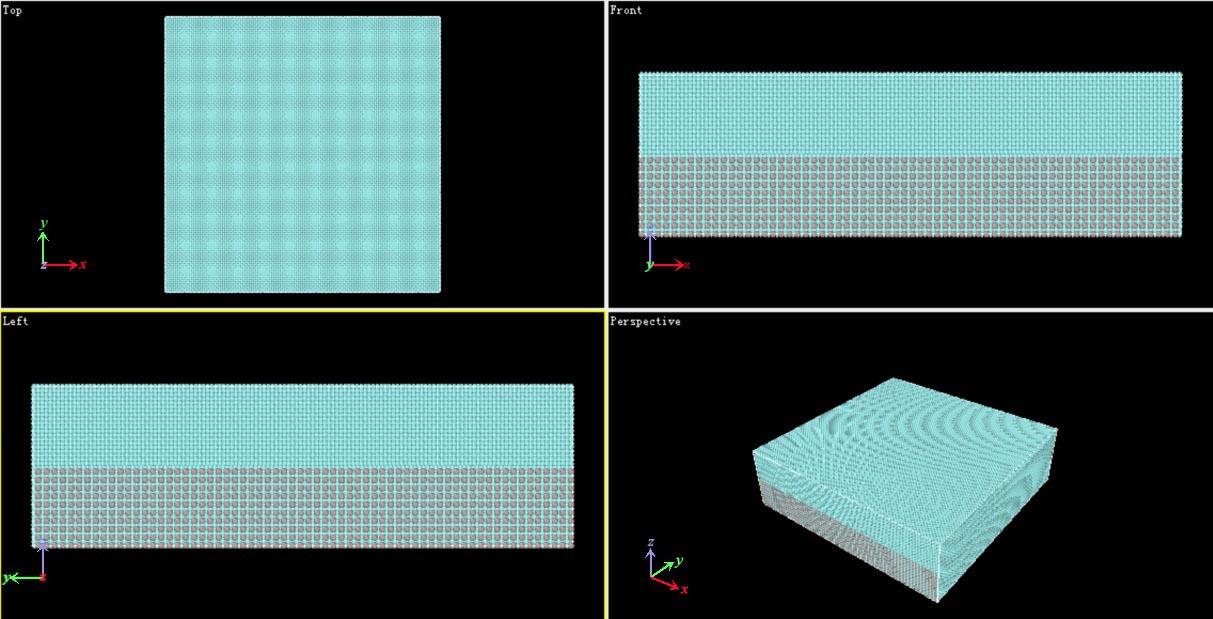

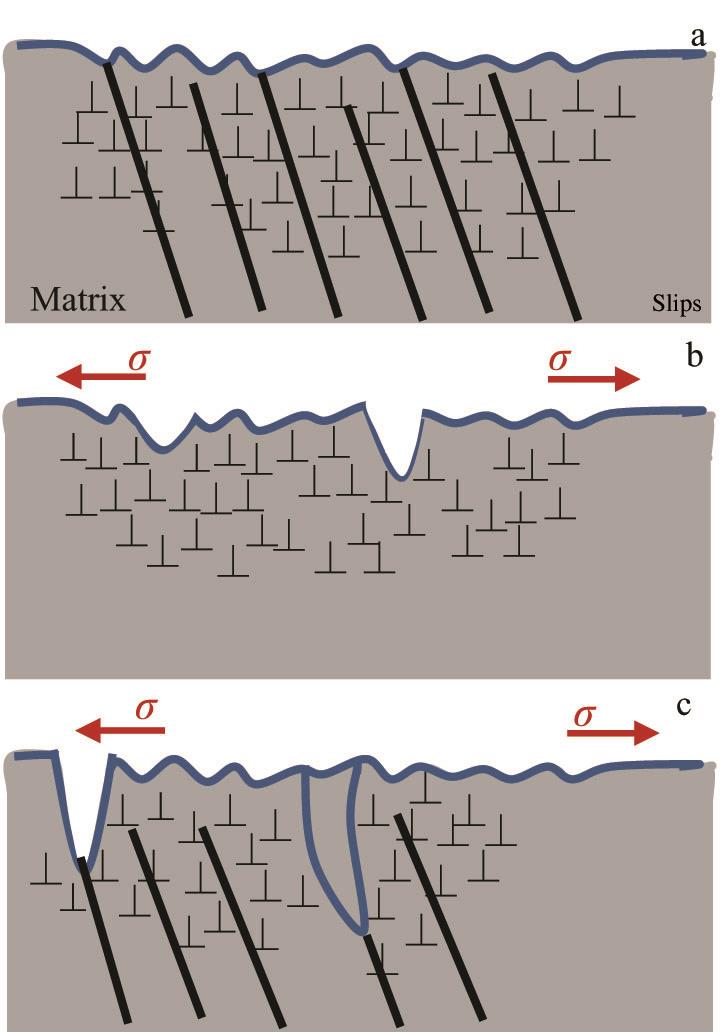

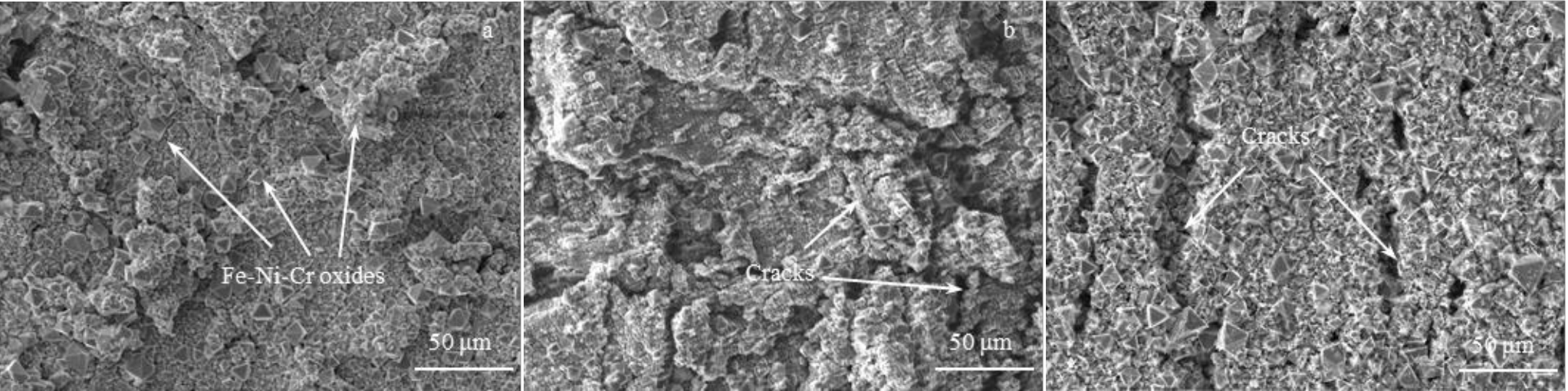

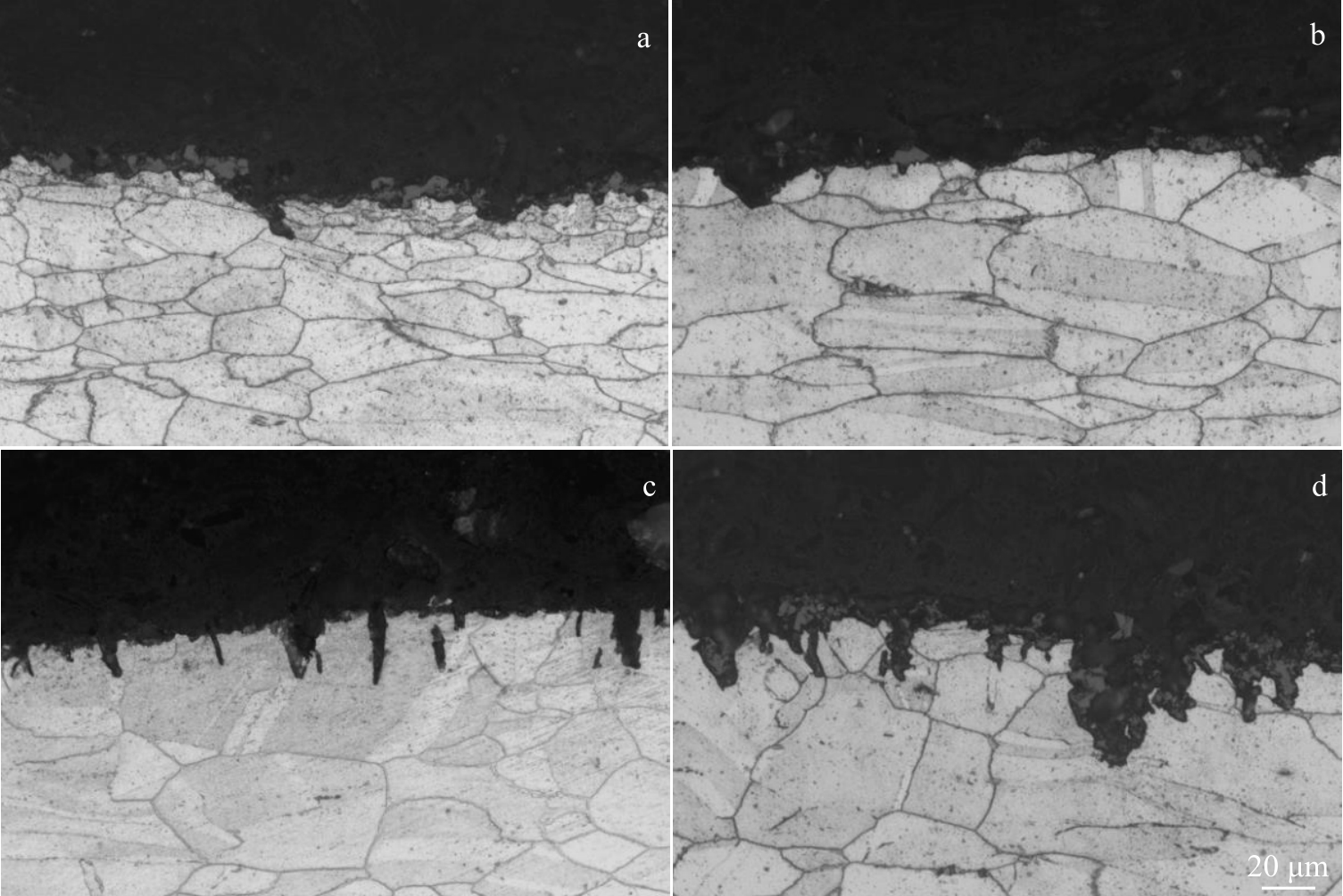

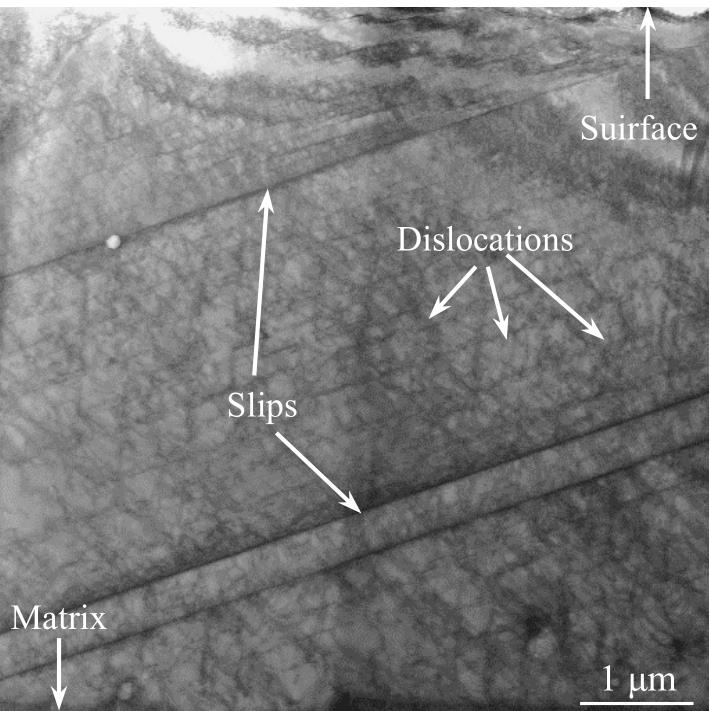

Tube bundles are the most critical components of steam generators in pressurized water plants. They are the heat exchange interface between primary and secondary circuits, acting as an important safety barrier to prevent the radioactive leakage. Stress corrosion cracking (SCC) initiation behavior of the worn alloy 690 tubes was investigated by slow strain rate tests (SSRT) in the high-temperature alkaline solution. The scanning electron microscope, electron backscatter diffraction and transmission electron microscope were used to analyze the fretting wear and SCC initiation behavior of alloy 690 tubes. Results show that SSRT specimens show typical transgranular SCC characteristics. The number of initiated cracks and their average depth are increased with increase in the wear degree, suggesting a wear-induced SCC initiation. This may have a relationship with the grooves, delamination, micro-cracks and residual strain layer with tens of micrometers in thickness left on the worn surface. Furthermore, a preliminary analysis on the possible procedure of wear-induced SCC initiation and further propagation during SSRT tests was carried out based on slip-dissolution/oxidation mechanism.
Tube bundles are the most critical components of steam generators in pressurized water plants. They are the heat exchange interface between primary and secondary circuits, acting as an important safety barrier to prevent the radioactive leakage. Stress corrosion cracking (SCC) initiation behavior of the worn alloy 690 tubes was investigated by slow strain rate tests (SSRT) in the high-temperature alkaline solution. The scanning electron microscope, electron backscatter diffraction and transmission electron microscope were used to analyze the fretting wear and SCC initiation behavior of alloy 690 tubes. Results show that SSRT specimens show typical transgranular SCC characteristics. The number of initiated cracks and their average depth are increased with increase in the wear degree, suggesting a wear-induced SCC initiation. This may have a relationship with the grooves, delamination, micro-cracks and residual strain layer with tens of micrometers in thickness left on the worn surface. Furthermore, a preliminary analysis on the possible procedure of wear-induced SCC initiation and further propagation during SSRT tests was carried out based on slip-dissolution/oxidation mechanism.

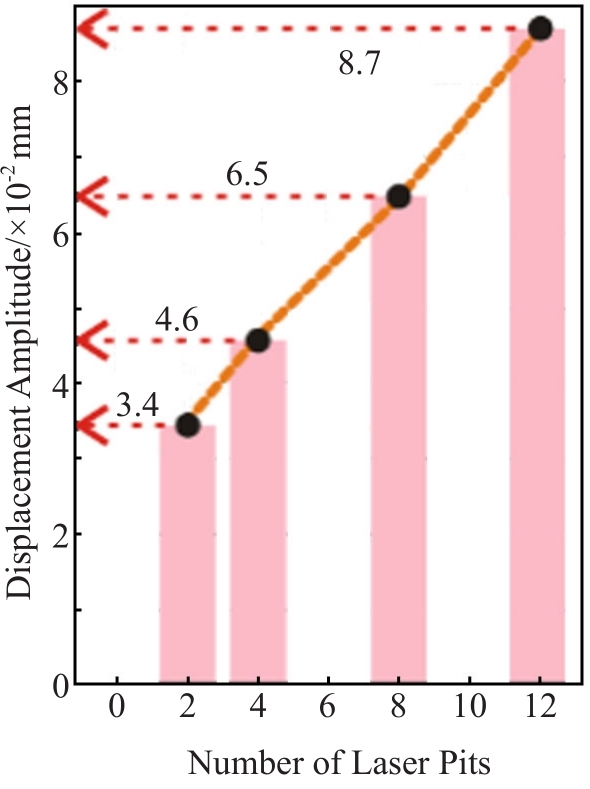

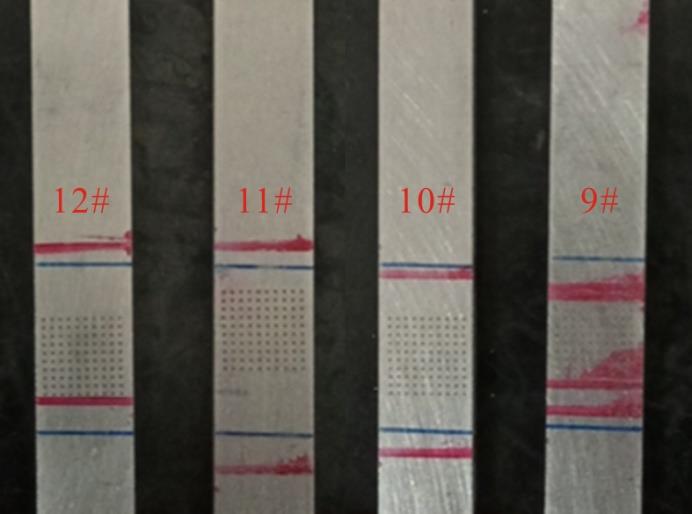

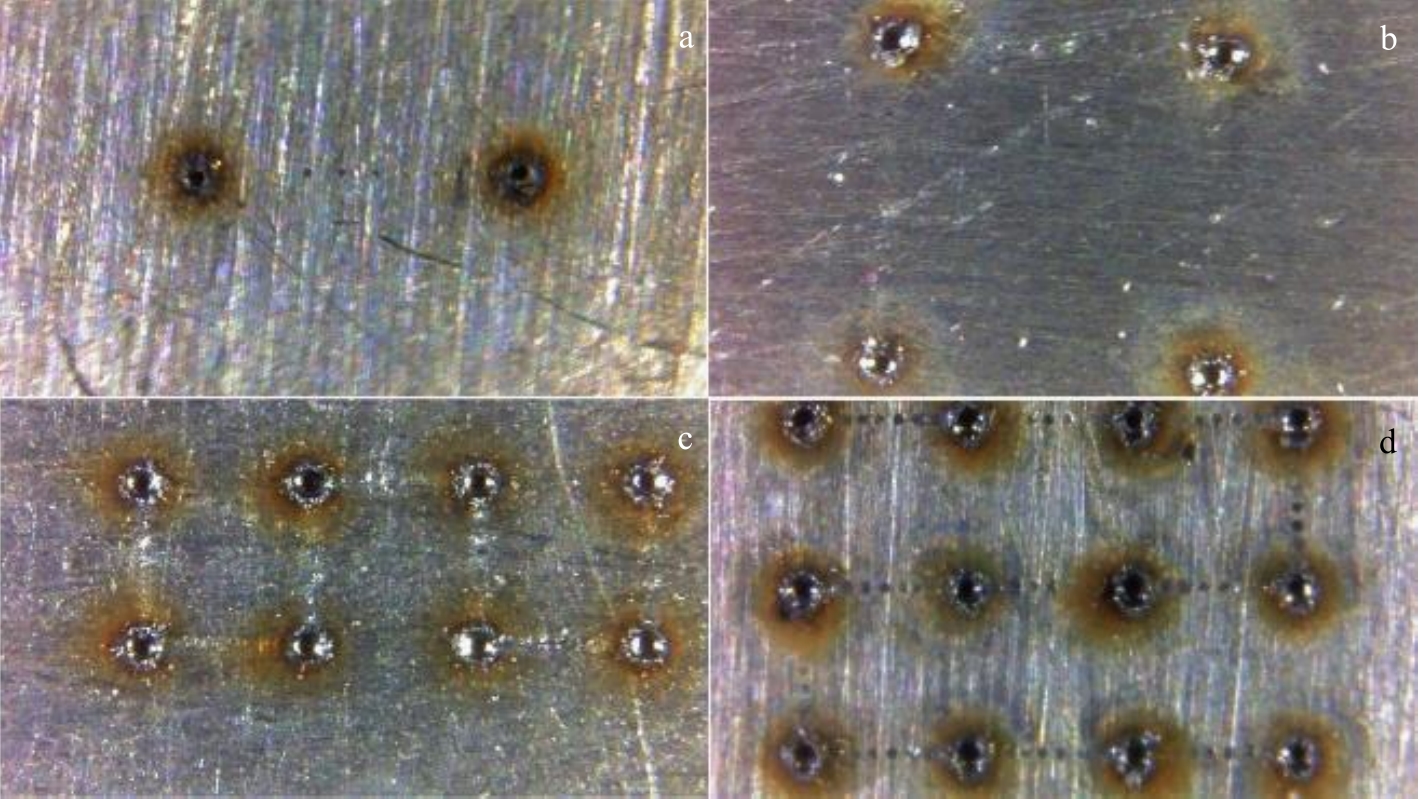

4 Preparation Quality Characterization of Ni-based Single Crystal Alloy with Gas Film Pore Structure
2022, 51(10):3554-3562.
DOI: 10.12442/j.issn.1002-185X.20210954
Abstract:

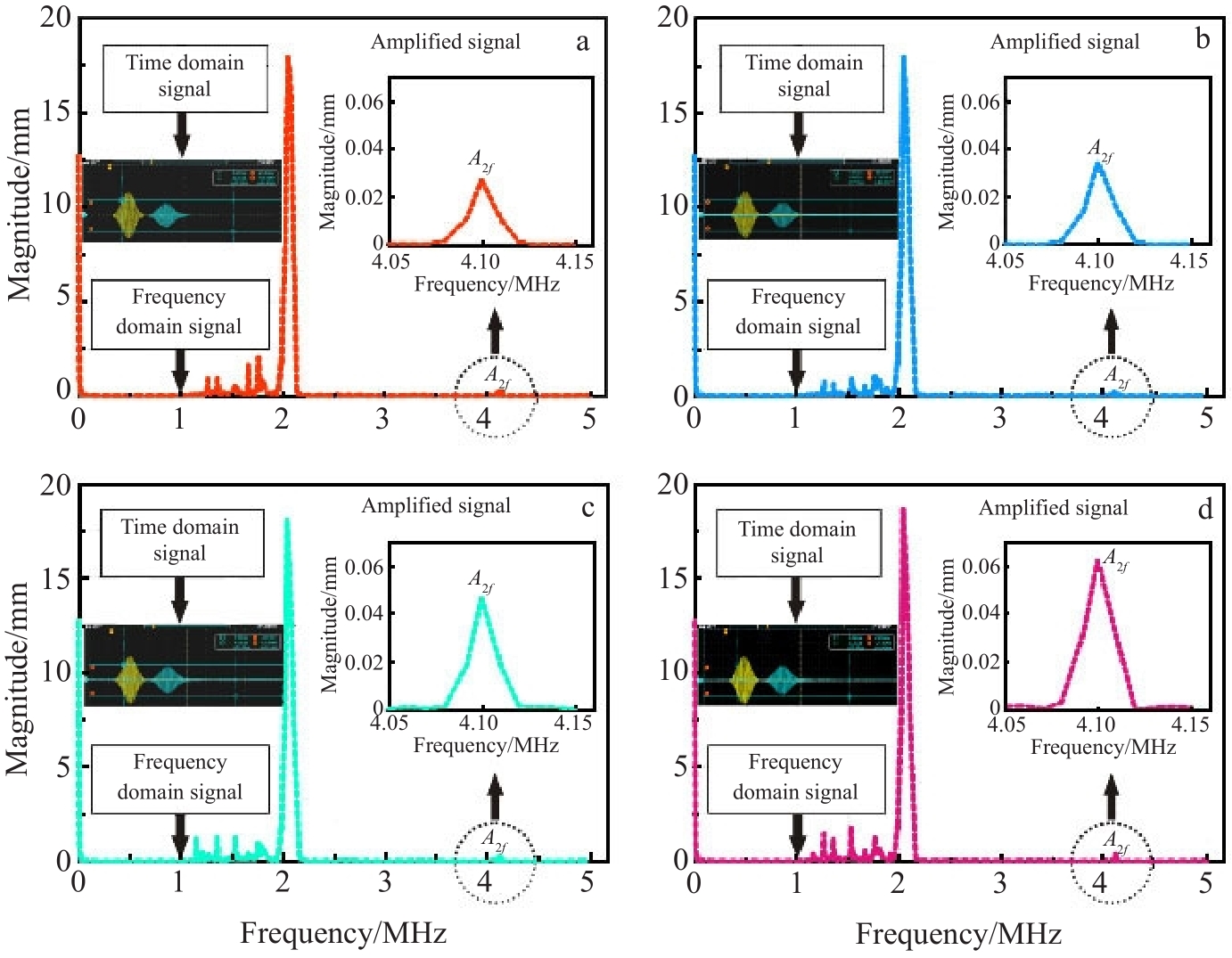

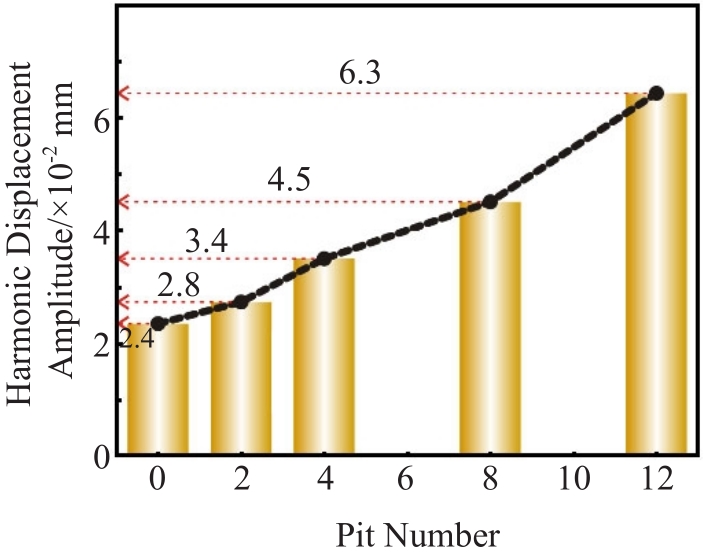

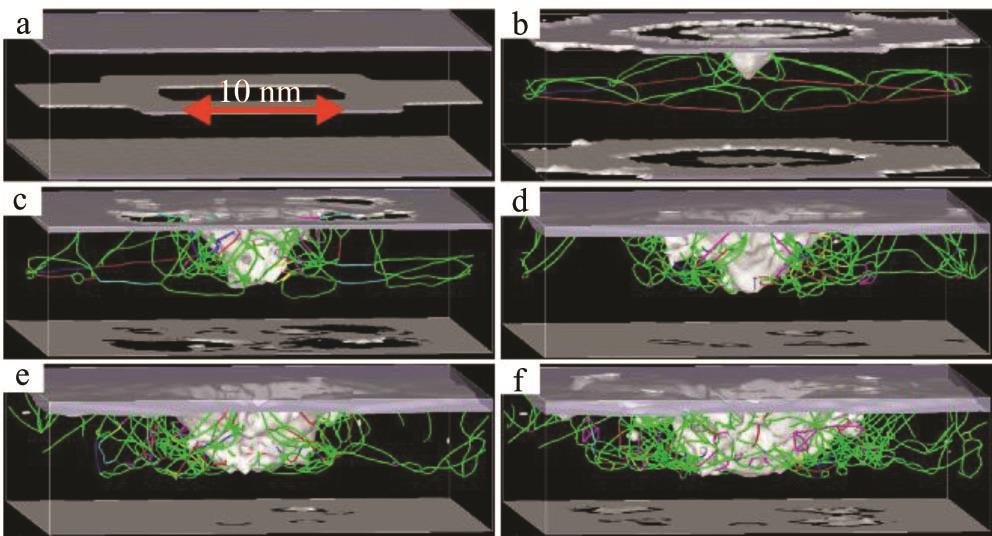

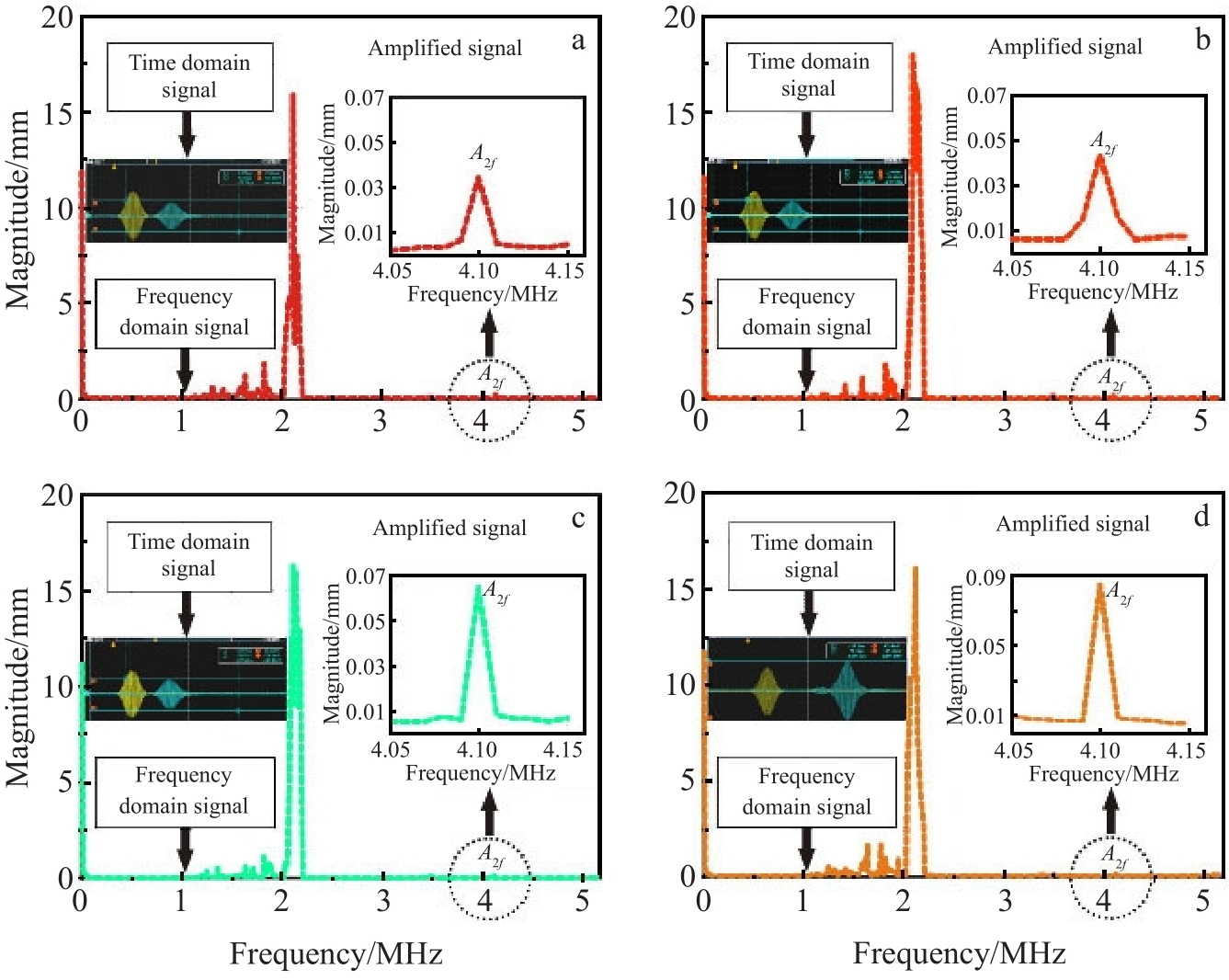

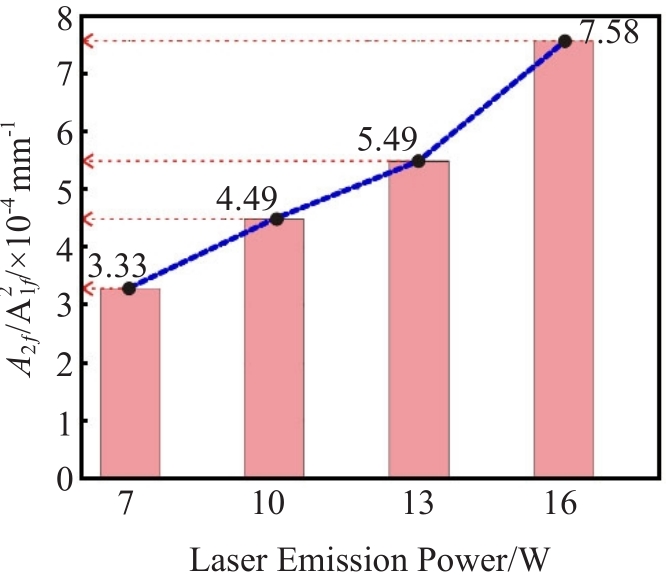

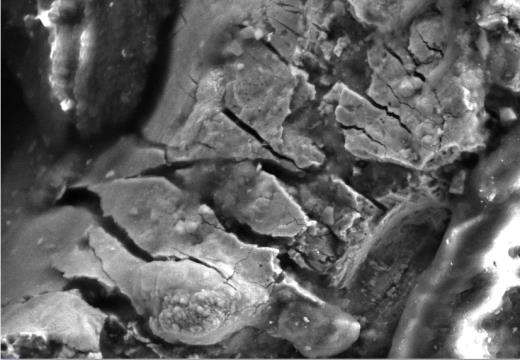

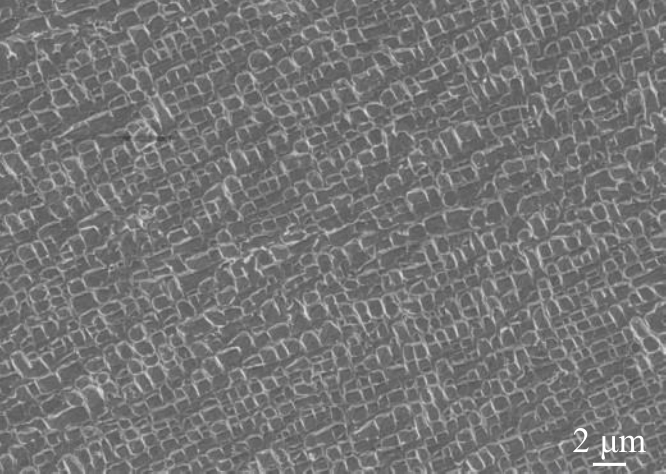

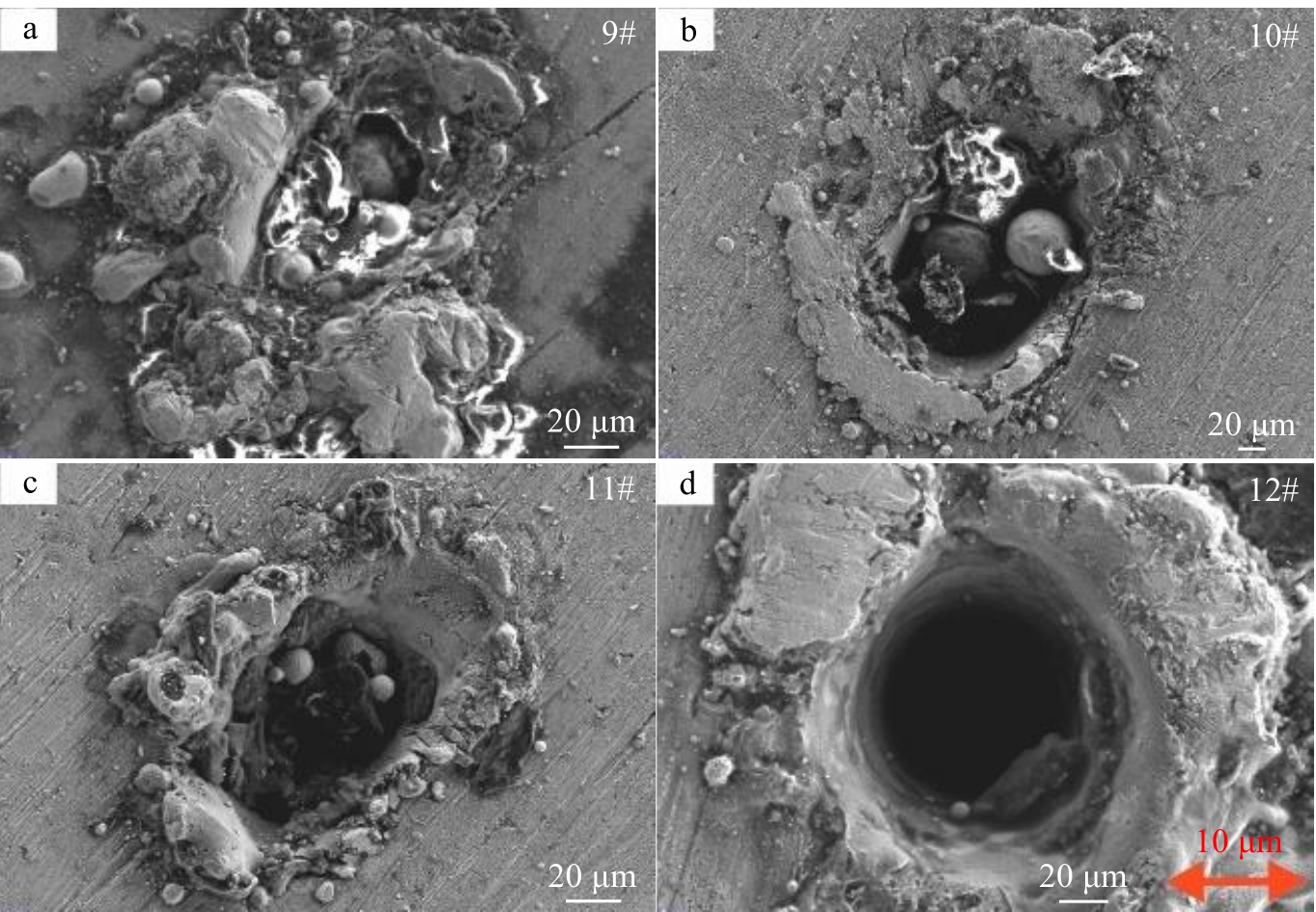

The preparation quality of Ni-based single crystal alloy (NSCA) with gas film pore structure has become a key factor restricting the application and development of high-performance aero-engine equipment. However, due to the difficulty of quantitatively expressing the microstructure changes during the preparation process, it is difficult to quantitatively evaluate the preparation quality under different processes. In the present study, taking the advantages of ultrasonic guided wave that is sensitive to metal material micro-damage and has high detection efficiency and detection accuracy, excitation frequency (2.05 MHz) and benchmark characteristic parameters (7.58 e-4/mm) of NSCA are determined, and then the influence mechanism of different preparation quality defects on the nonlinear parameters of guided wave is clarified by theoretical and experimental analysis, which will provide theoretical basis research for the subsequent efficient and controllable preparation of NSCA with gas film pore structure.
The preparation quality of Ni-based single crystal alloy (NSCA) with gas film pore structure has become a key factor restricting the application and development of high-performance aero-engine equipment. However, due to the difficulty of quantitatively expressing the microstructure changes during the preparation process, it is difficult to quantitatively evaluate the preparation quality under different processes. In the present study, taking the advantages of ultrasonic guided wave that is sensitive to metal material micro-damage and has high detection efficiency and detection accuracy, excitation frequency (2.05 MHz) and benchmark characteristic parameters (7.58 e-4/mm) of NSCA are determined, and then the influence mechanism of different preparation quality defects on the nonlinear parameters of guided wave is clarified by theoretical and experimental analysis, which will provide theoretical basis research for the subsequent efficient and controllable preparation of NSCA with gas film pore structure.
2022, 51(10):3722-3731.
DOI: 10.12442/j.issn.1002-185X.20210853
Abstract:
The paper investigated the influence of heat treatment processes on the γ" phase microstructure of a novel third-generation nickel-based powder superalloy WZ-A3. Differential thermal analysis of different heating and cooling rates, interventional cooling tests, cooling rate tests and aging heat treatment experiments were carried out in order to investigate the dissolution and precipitation behavior of γ" phase as well as its size evolution. The results indicate that: when the WZ-A3 alloy cooled from supersolvus heat treatment, the initial precipitation temperature of γ" phase is between 1148°C~1165°C, the fastest precipitation temperature is between 1028℃~1037℃; the secondary γ" phase nucleation and precipitation temperature range from 885°C to 1008°C, depending on the experimental cooling rate; a slower cooling can further obtain more secondary γ" phase precipitation; the temperature of the supersolvus heat treatment has no significant effect on the size of the γ" phase; the cooling rate after solution heat treatment is inversely proportional to the size of the γ" phase, this relationship can be expressed as a power law function y=1490.74x-0.509; the short-time aging at 800℃ has no obvious influence on the size and morphology of the secondary γ" phase; the coarsening rate of the secondary γ" phase at 800 ° C, 900 ° C and 1000 ° C are 2.153×10-28m3s-1、1.696×10-27m3s-1、and 2.331×10-26m3s-1, respectively; the activation energy of the γ" phase coarsening of the studied alloy is 278 kJ / mol.
The paper investigated the influence of heat treatment processes on the γ" phase microstructure of a novel third-generation nickel-based powder superalloy WZ-A3. Differential thermal analysis of different heating and cooling rates, interventional cooling tests, cooling rate tests and aging heat treatment experiments were carried out in order to investigate the dissolution and precipitation behavior of γ" phase as well as its size evolution. The results indicate that: when the WZ-A3 alloy cooled from supersolvus heat treatment, the initial precipitation temperature of γ" phase is between 1148°C~1165°C, the fastest precipitation temperature is between 1028℃~1037℃; the secondary γ" phase nucleation and precipitation temperature range from 885°C to 1008°C, depending on the experimental cooling rate; a slower cooling can further obtain more secondary γ" phase precipitation; the temperature of the supersolvus heat treatment has no significant effect on the size of the γ" phase; the cooling rate after solution heat treatment is inversely proportional to the size of the γ" phase, this relationship can be expressed as a power law function y=1490.74x-0.509; the short-time aging at 800℃ has no obvious influence on the size and morphology of the secondary γ" phase; the coarsening rate of the secondary γ" phase at 800 ° C, 900 ° C and 1000 ° C are 2.153×10-28m3s-1、1.696×10-27m3s-1、and 2.331×10-26m3s-1, respectively; the activation energy of the γ" phase coarsening of the studied alloy is 278 kJ / mol.
2022, 51(10):3732-3742.
DOI: 10.12442/j.issn.1002-185X.20210786
Abstract:

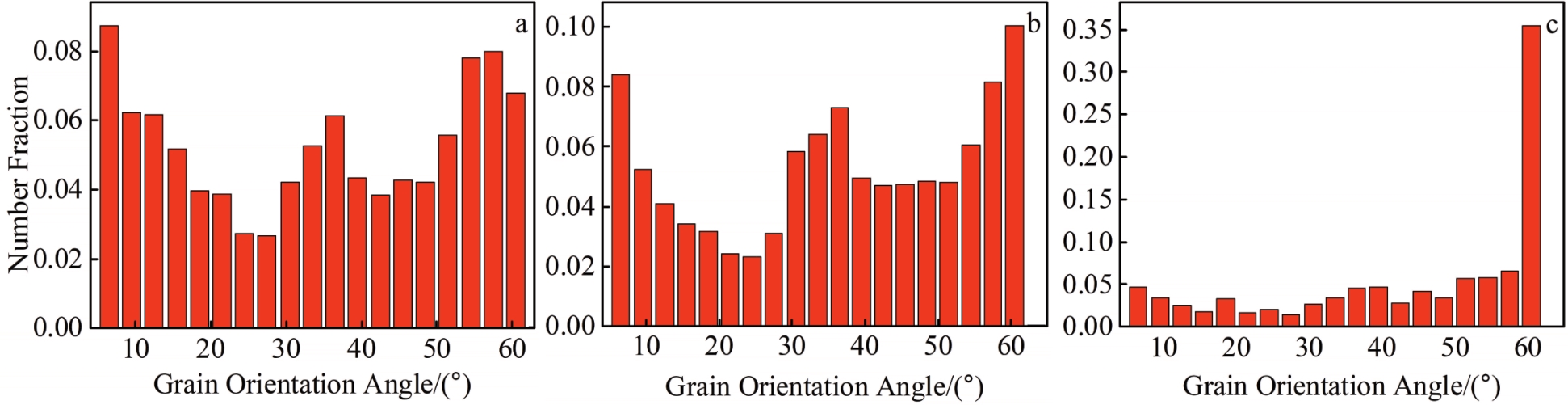

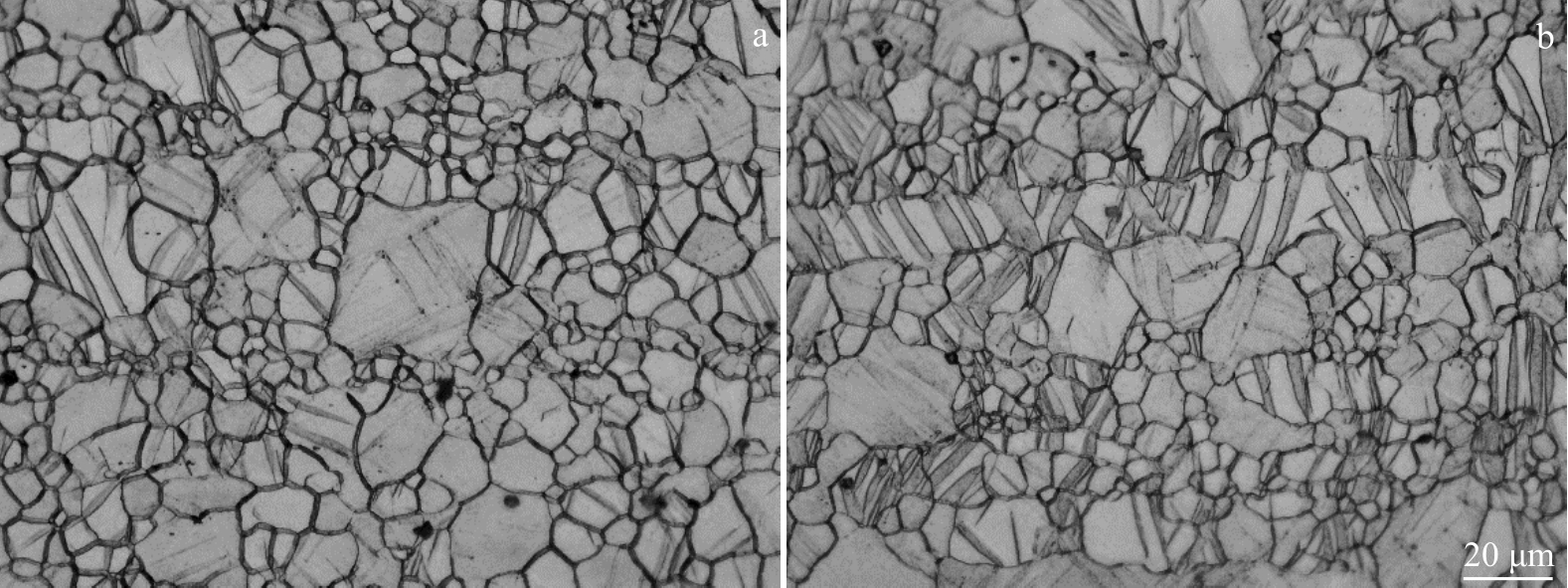

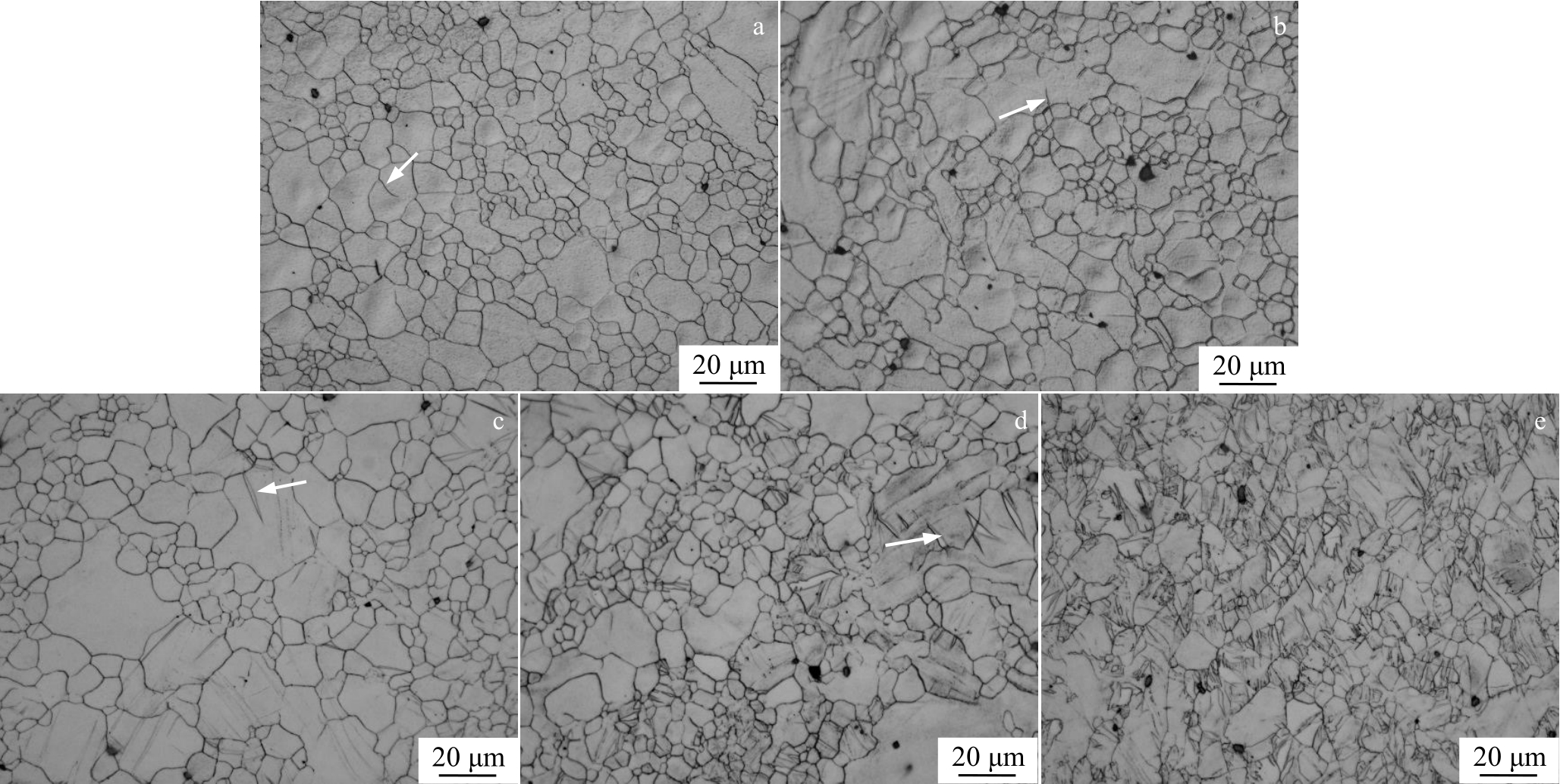

In this paper, different treatments were used to adjust the “γ′phase+twin” structure of a new Ni-Cr-Co based wrought superalloy, which was low alloying and low stacking fault energy. The contribution of twin boundary to grain refinement, strength improvement and the effect of the “γ′phase+twin” structure on the mechanical properties of the alloy were analyzed. The results show that after solution treatment at 1090 ℃ for 1 h, the γ′precipitates in the microstructure of the forged alloy is basically dissolved, and the content of twins in the structure is as high as 51.65%. The elongation (42.9%) of the solid solution alloy is 63.6% higher than that of the forged alloy (26.8%), and the yield strength is 693 MPa (only 3% lower than that of the forged alloy) σ tb = 66.98 MPa, and its contribution is basically the same as that of fine grain strengthening (77.4 MPa). The content of twins of the aged alloy treated by 700 ℃ / 8 h / AC is 34.41%, at the same time, a large amount of γ′ phase, which is precipitation strengthening phase, is introduced into the structure, and form the“ γ′phase + twin" composite structure. The hardness, tensile strength, yield strength and elongation of the aged alloy (405 HV, 1042 MPa, 864 MPa, 49.76%) are further improved compared with those in the solid solution state (324.4 HV, 879 MPa, 693 MPa, 42.9%) , and σ tb=107.94 MPa. In superalloys with low alloying and
In this paper, different treatments were used to adjust the “γ′phase+twin” structure of a new Ni-Cr-Co based wrought superalloy, which was low alloying and low stacking fault energy. The contribution of twin boundary to grain refinement, strength improvement and the effect of the “γ′phase+twin” structure on the mechanical properties of the alloy were analyzed. The results show that after solution treatment at 1090 ℃ for 1 h, the γ′precipitates in the microstructure of the forged alloy is basically dissolved, and the content of twins in the structure is as high as 51.65%. The elongation (42.9%) of the solid solution alloy is 63.6% higher than that of the forged alloy (26.8%), and the yield strength is 693 MPa (only 3% lower than that of the forged alloy) σ tb = 66.98 MPa, and its contribution is basically the same as that of fine grain strengthening (77.4 MPa). The content of twins of the aged alloy treated by 700 ℃ / 8 h / AC is 34.41%, at the same time, a large amount of γ′ phase, which is precipitation strengthening phase, is introduced into the structure, and form the“ γ′phase + twin" composite structure. The hardness, tensile strength, yield strength and elongation of the aged alloy (405 HV, 1042 MPa, 864 MPa, 49.76%) are further improved compared with those in the solid solution state (324.4 HV, 879 MPa, 693 MPa, 42.9%) , and σ tb=107.94 MPa. In superalloys with low alloying and
2022, 51(10):3859-3866.
DOI: 10.12442/j.issn.1002-185X.20210849
Abstract:

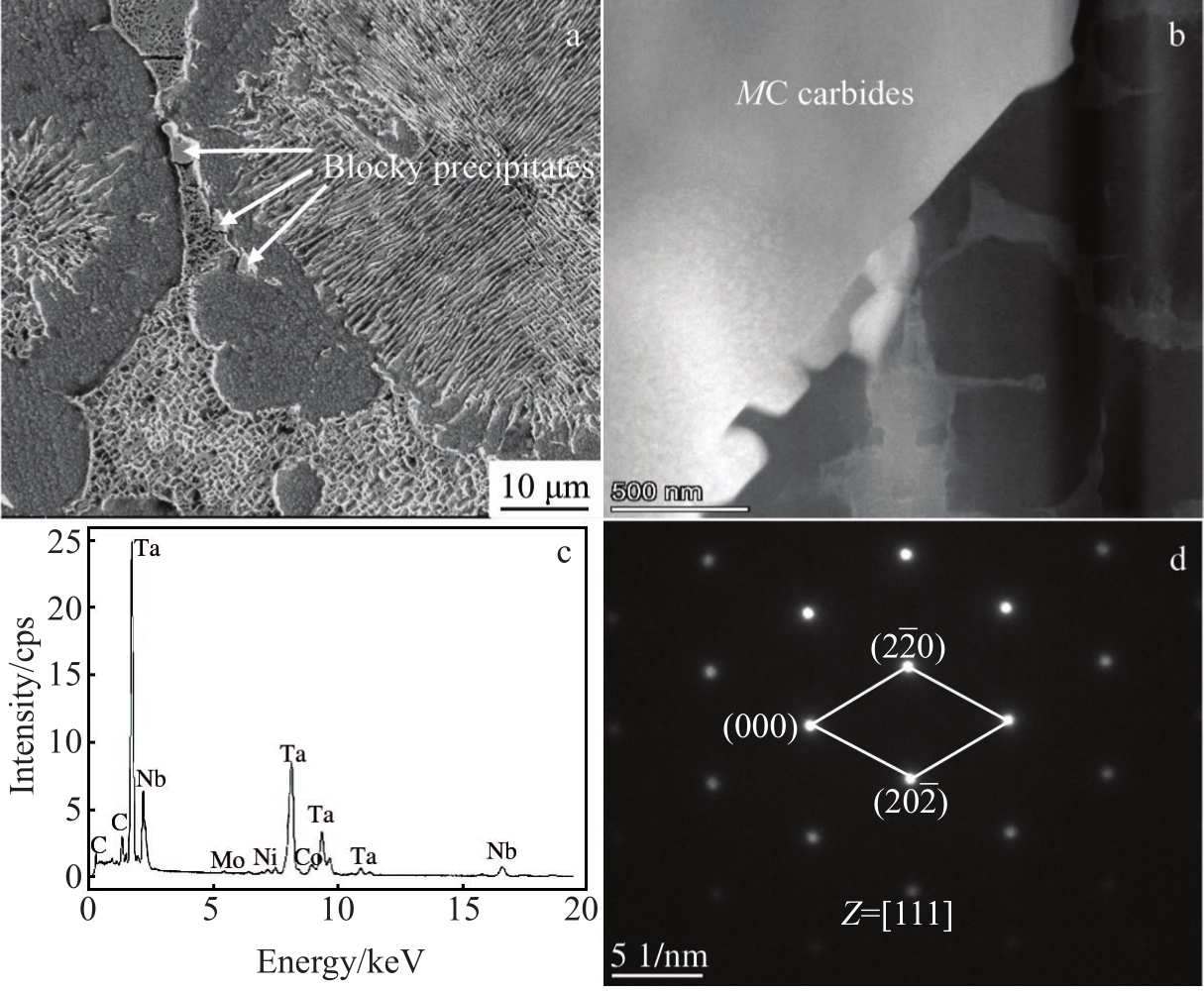

In this paper, the NiAl-32V pseudo-binary hypoeutectic alloy was prepared by directional solidification technology. The microstructure morphology of the alloy in the steady-state region at different withdrawl rates after high temperature heat treatment was studied, and the variation of its thermal stability and microstructure morphology was analyzed. The results indicates: The primary phase of the alloy has good thermal stability at 900°C(5~100h). The coarsening and spheroidization of NiAl eutectic layers are observed, and the longer the heat treatment time is, the greater the coarsening degree is, and the more obvious the spheroidization is. After high temperature heat treatment at different temperatures(900°C,1000°C,1100°C)for 5 h, the proportion of primary phase area of the alloy also changed slightly. The coarsening and spheroidization of NiAl eutectic lamellae were observed in all samples (withdrawl rates V=6~150μm/s). With the increase of heat treatment temperature, coarsening and spheroidization are more obvious.
In this paper, the NiAl-32V pseudo-binary hypoeutectic alloy was prepared by directional solidification technology. The microstructure morphology of the alloy in the steady-state region at different withdrawl rates after high temperature heat treatment was studied, and the variation of its thermal stability and microstructure morphology was analyzed. The results indicates: The primary phase of the alloy has good thermal stability at 900°C(5~100h). The coarsening and spheroidization of NiAl eutectic layers are observed, and the longer the heat treatment time is, the greater the coarsening degree is, and the more obvious the spheroidization is. After high temperature heat treatment at different temperatures(900°C,1000°C,1100°C)for 5 h, the proportion of primary phase area of the alloy also changed slightly. The coarsening and spheroidization of NiAl eutectic lamellae were observed in all samples (withdrawl rates V=6~150μm/s). With the increase of heat treatment temperature, coarsening and spheroidization are more obvious.

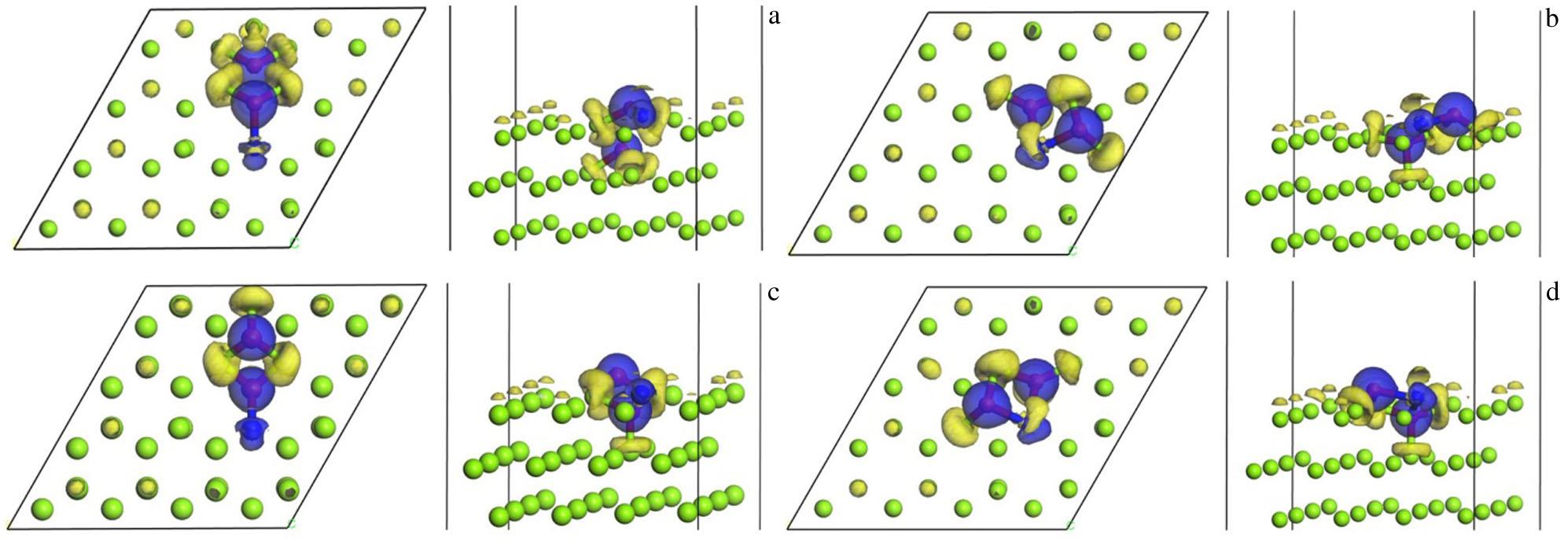

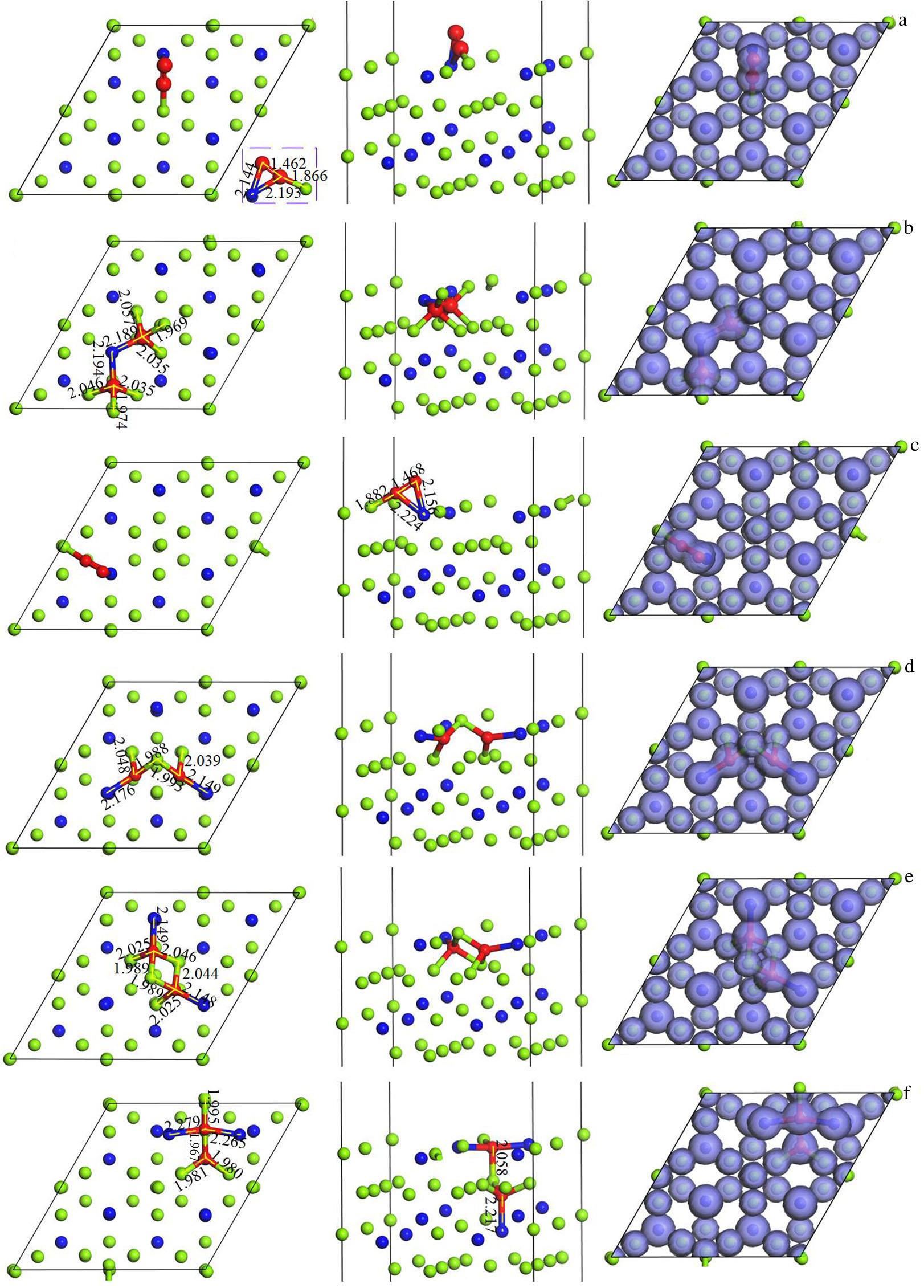

2022, 51(10):3563-3573.
DOI: 10.12442/j.issn.1002-185X.20210814
Abstract:

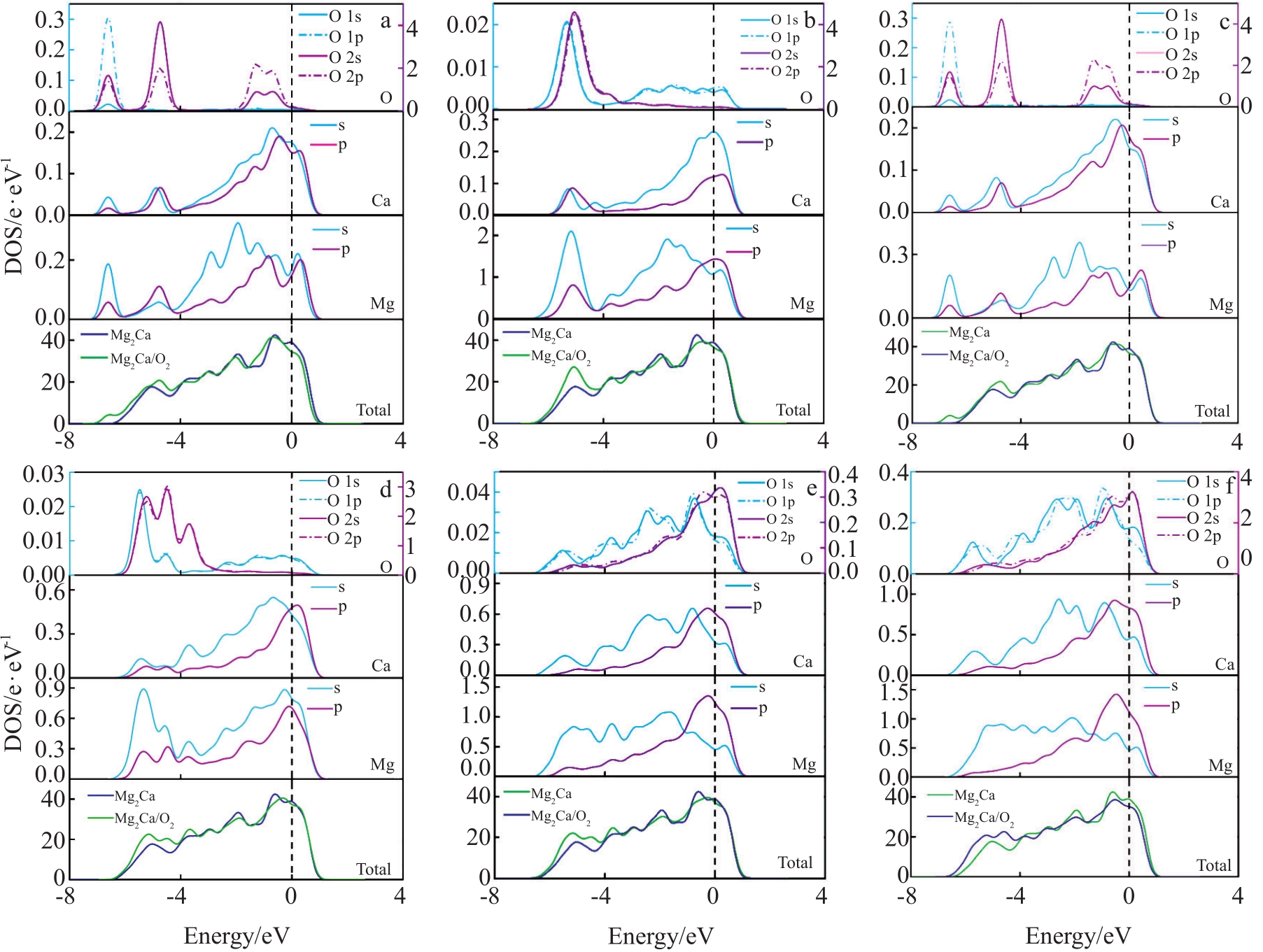

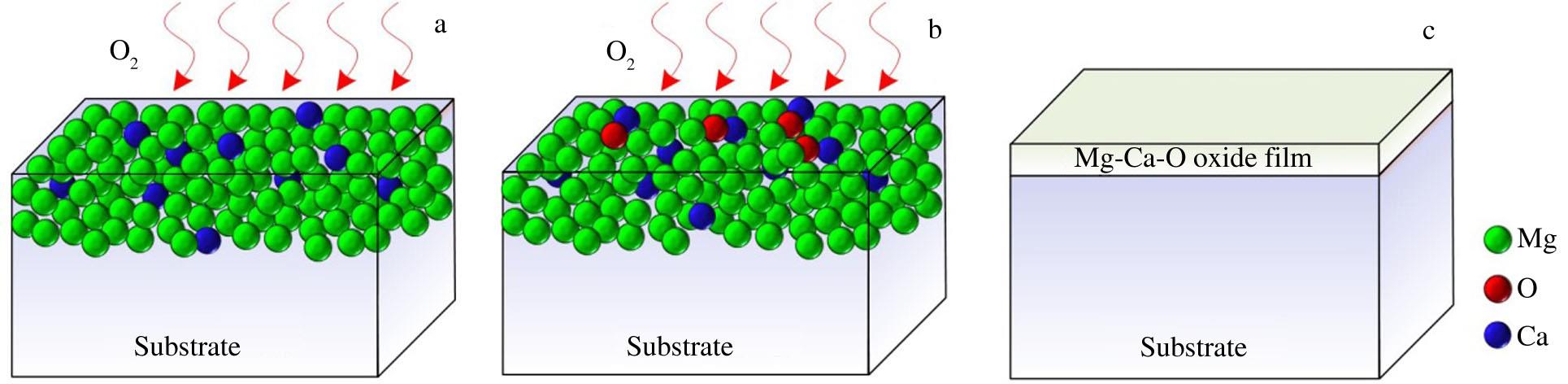

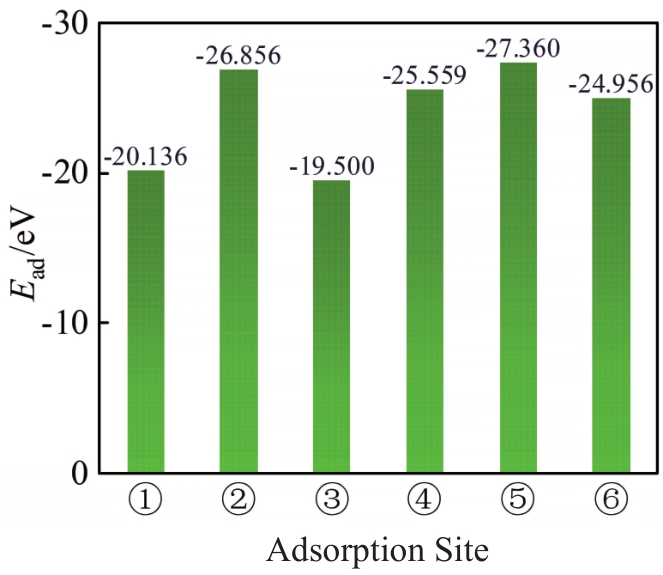

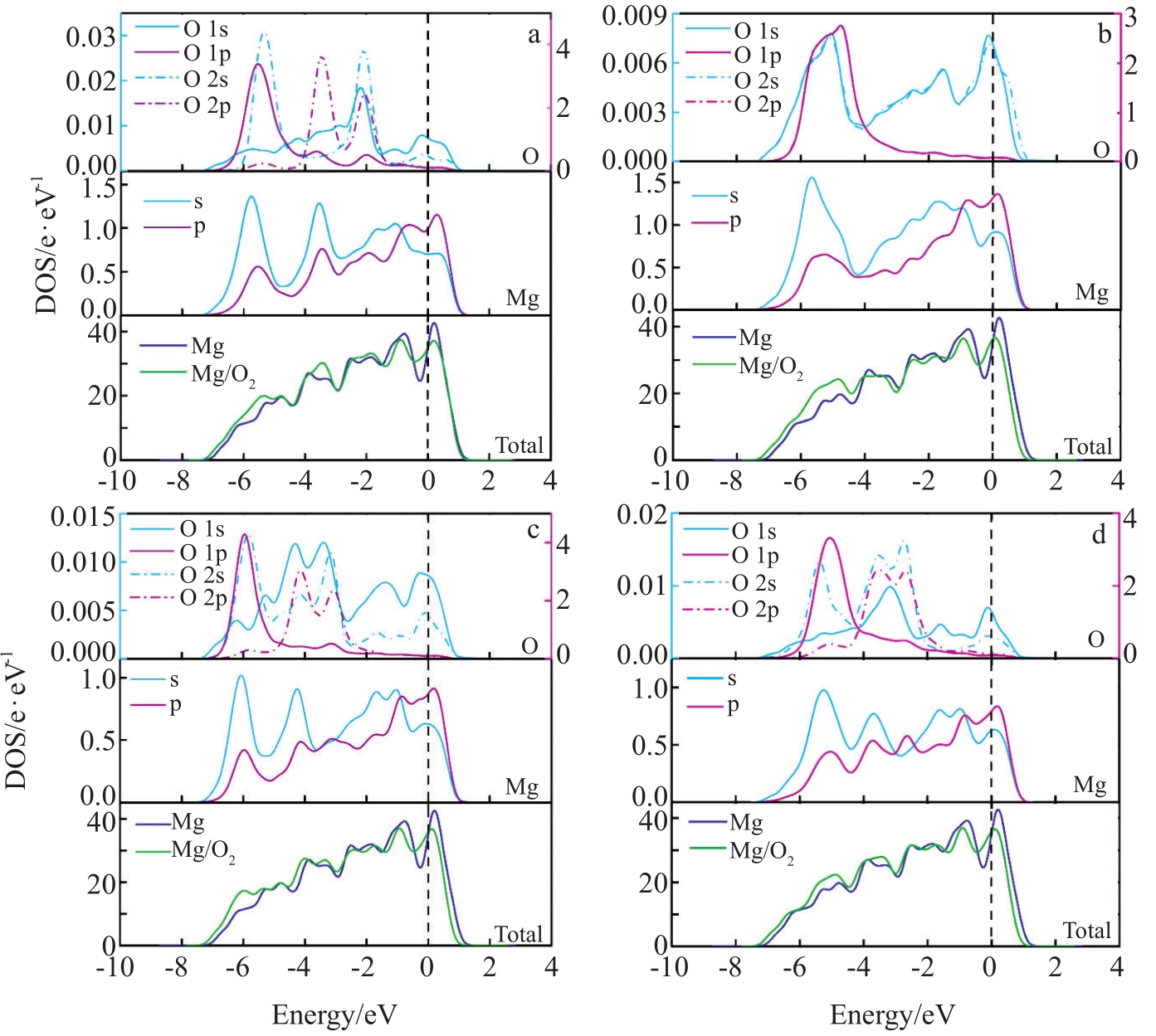

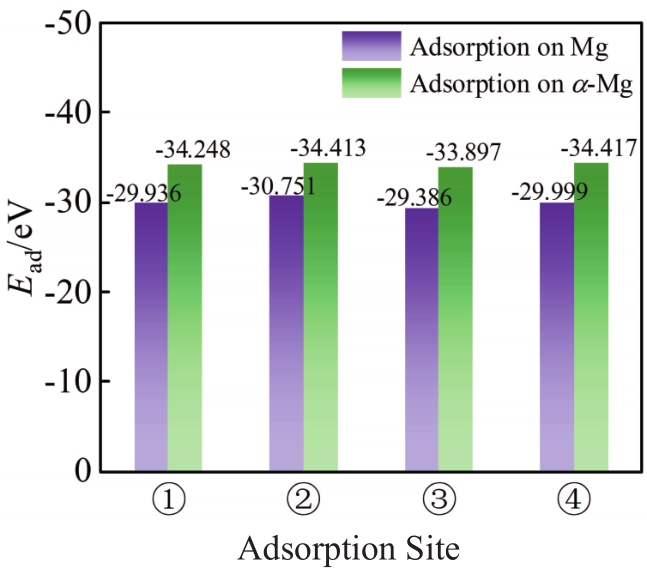

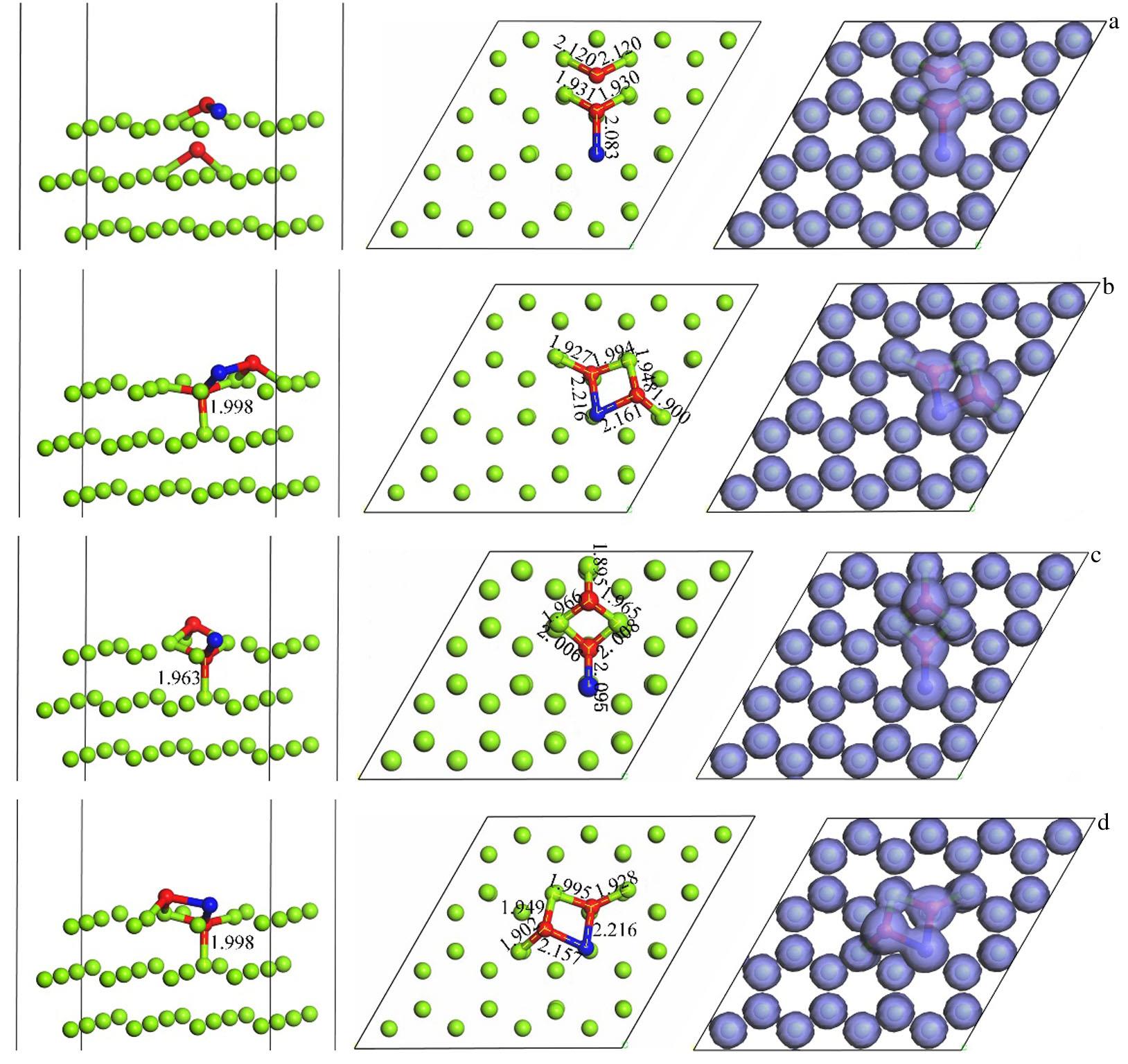

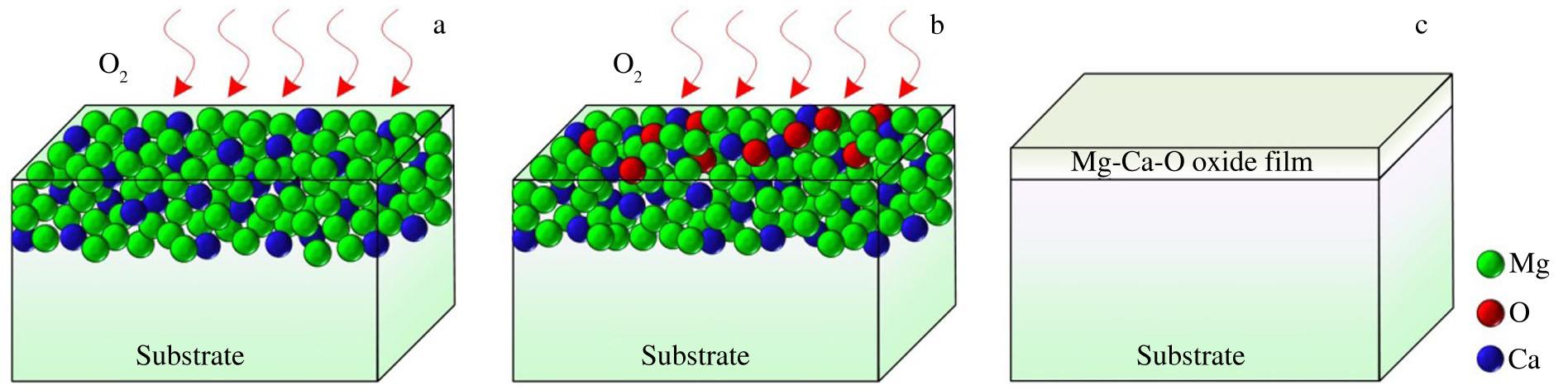

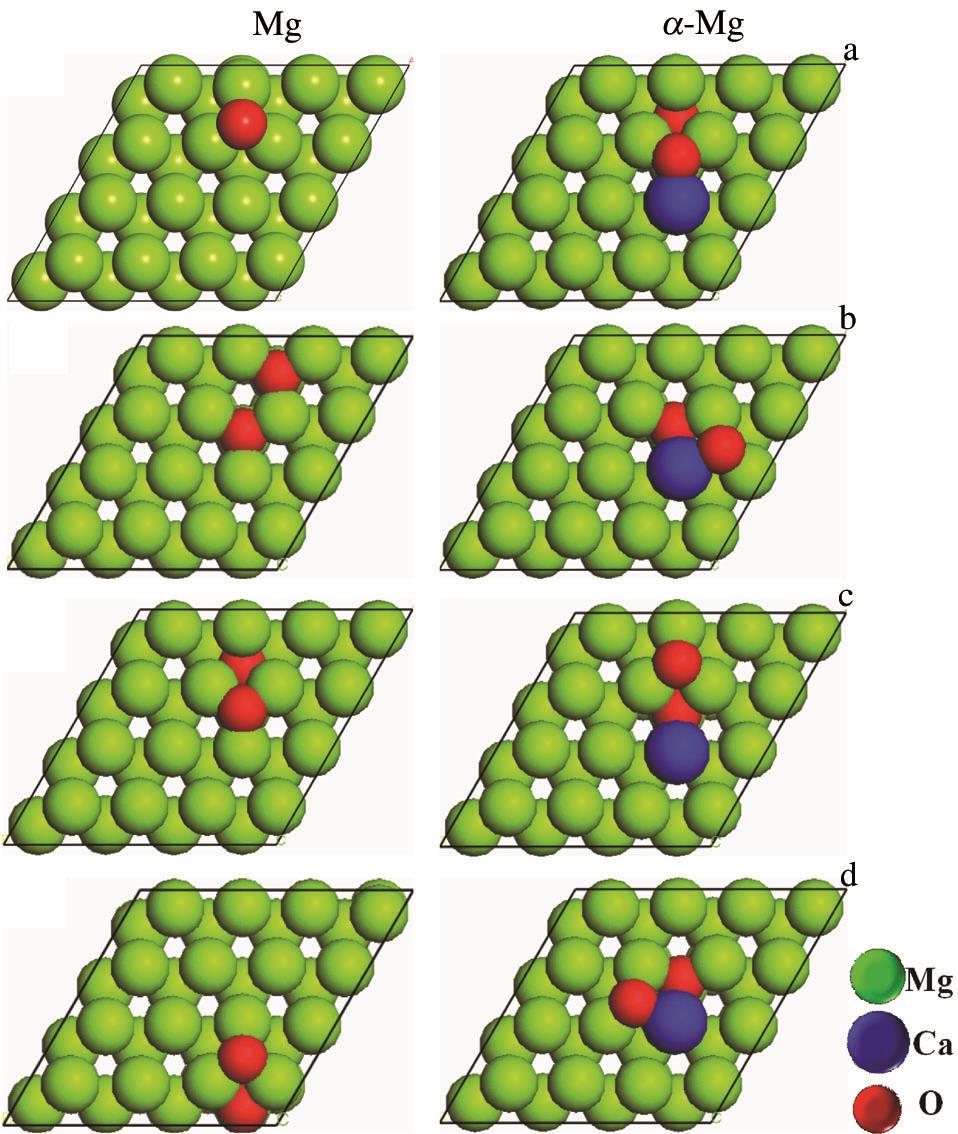

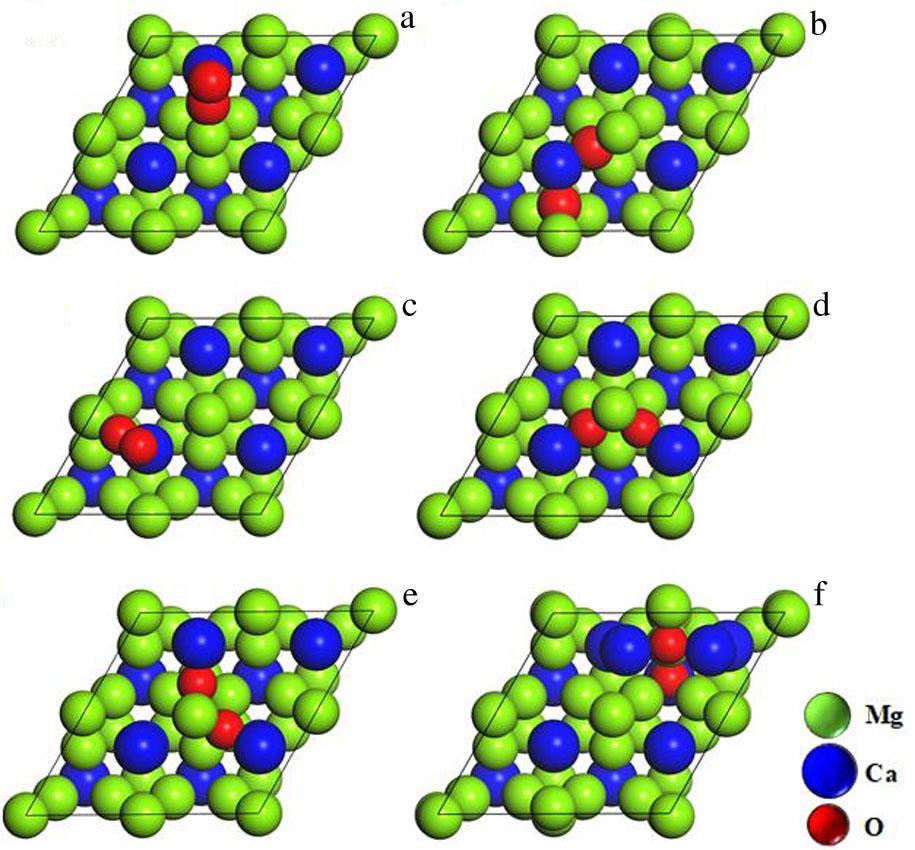

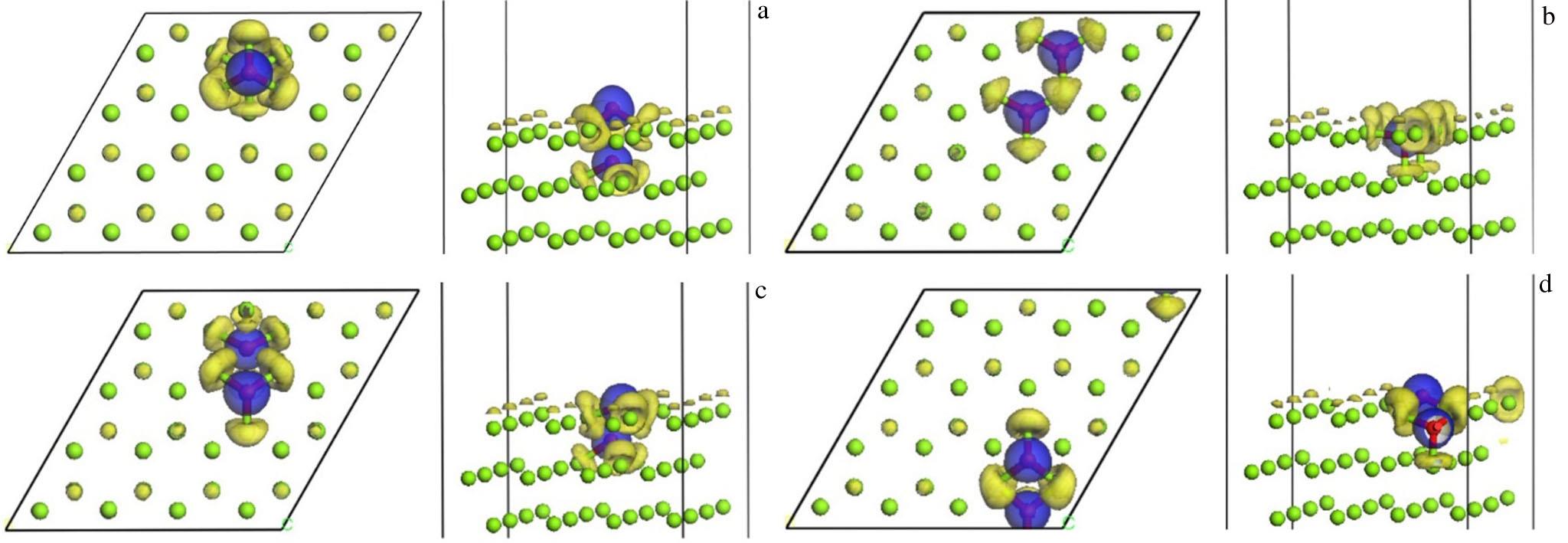

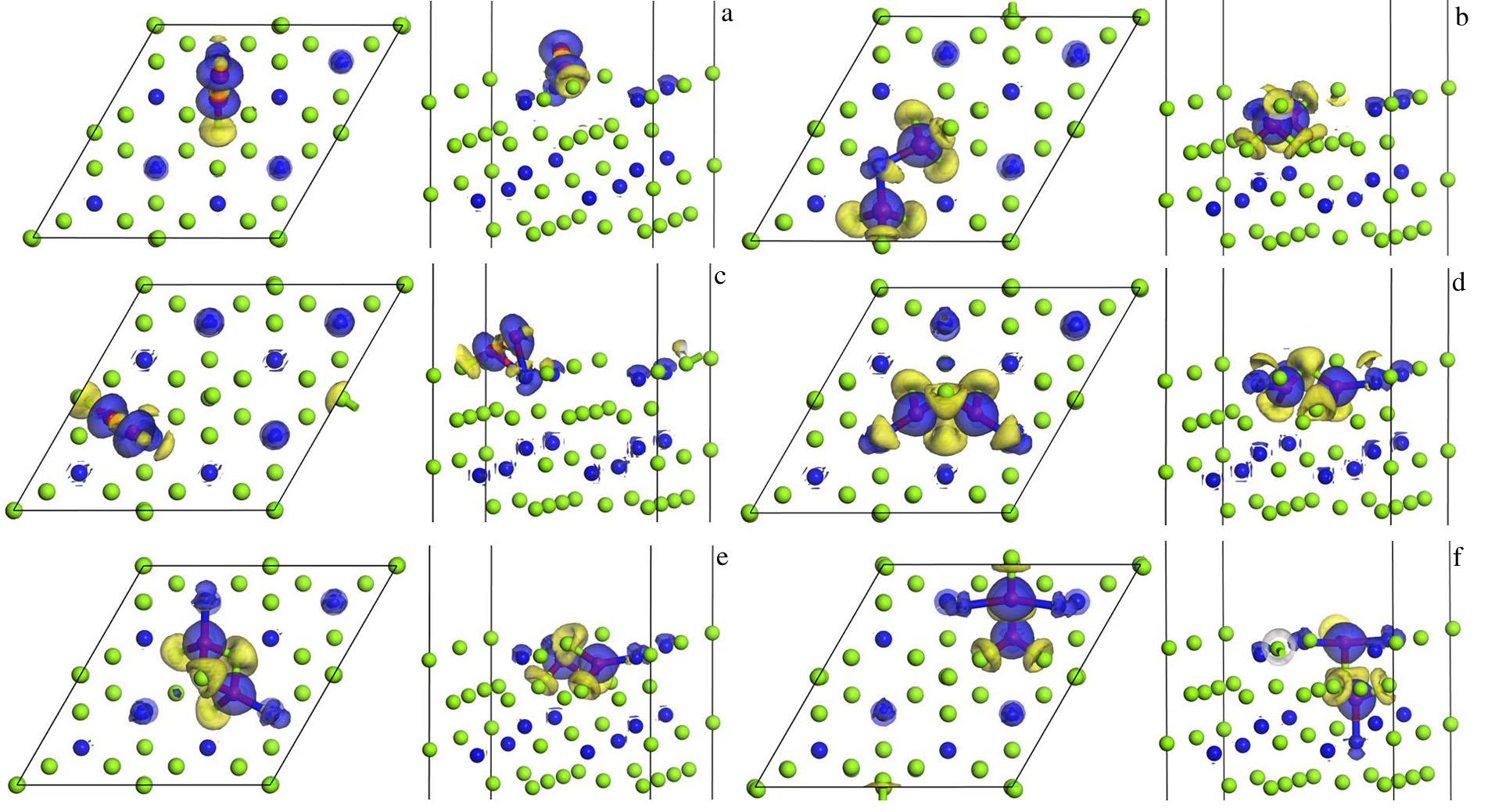

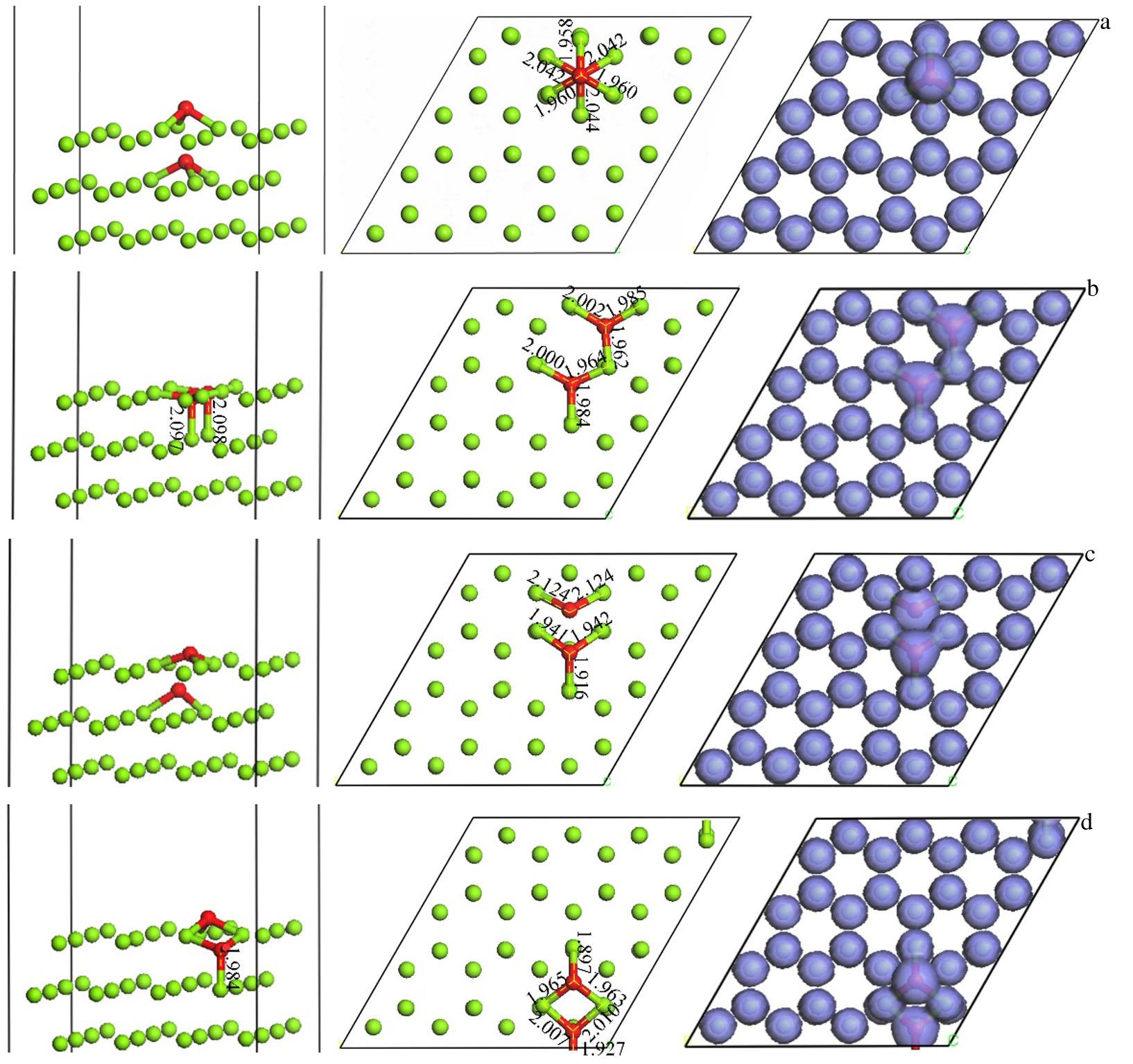

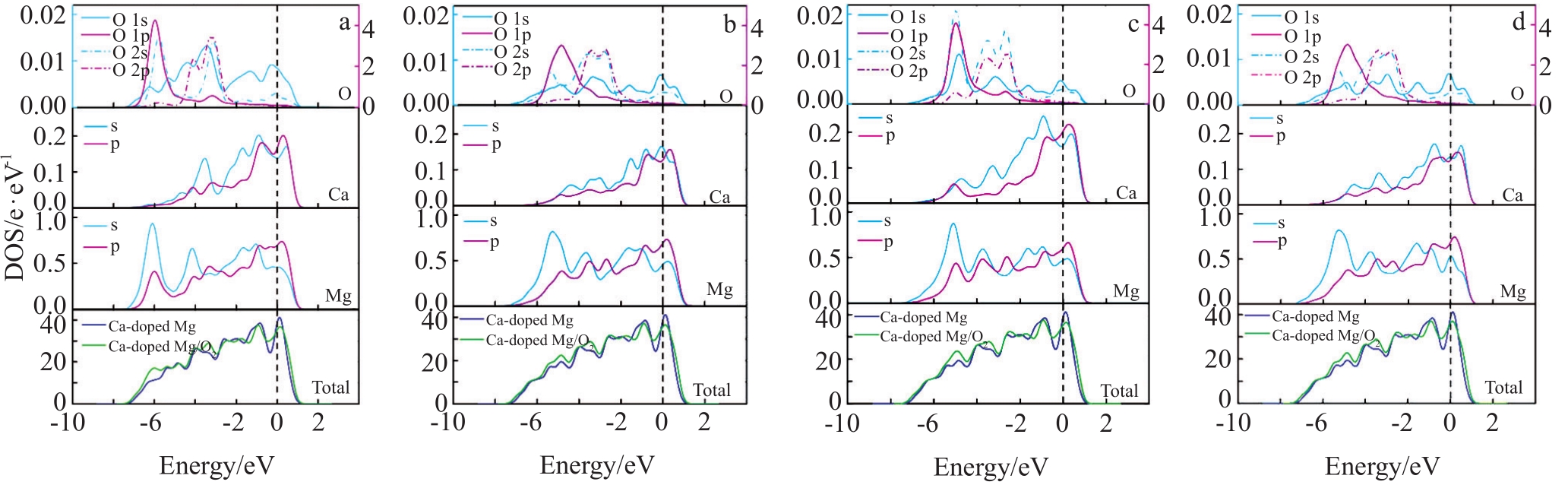

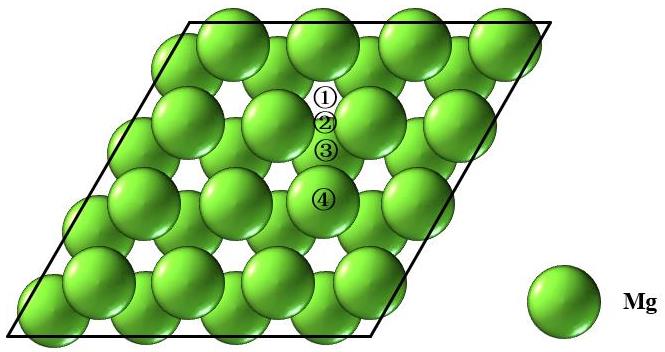

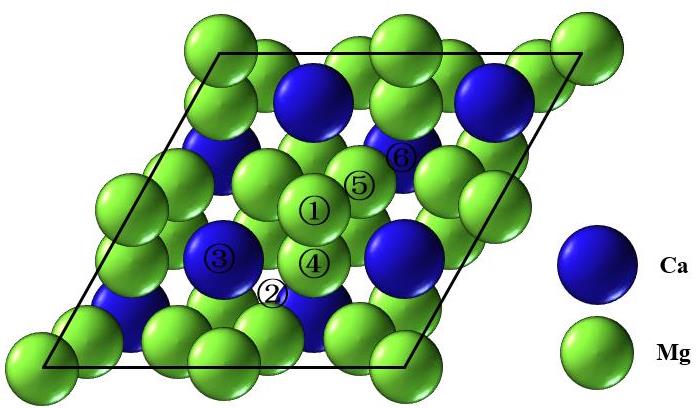

The oxidation of α-Mg and Mg2Ca in Mg-Ca alloy was studied by calculating the adsorption process of O2 on α-Mg (0001) and Mg2Ca (0001) based on density functional theory (DFT), and the adsorption process and oxidation mechanism were investigated. Results show that during the adsorption, O2 has a strong interaction with α-Mg and Mg2Ca. The interactions are chemisorption due to the excellent Ead values, but the adsorption structures of Mg2Ca are not as stable as that of α-Mg. During the oxidation, O2 reacts with Ca and Mg atoms in α-Mg and Mg2Ca to form Mg-Ca-O oxide film, hence improving the oxidation resistance of Mg-Ca alloy. Since the adsorption structure of Mg2Ca is not as stable as that of α-Mg, the oxide film formed by Mg2Ca shows weaker protective effect on the substrate than that formed by α-Mg.
The oxidation of α-Mg and Mg2Ca in Mg-Ca alloy was studied by calculating the adsorption process of O2 on α-Mg (0001) and Mg2Ca (0001) based on density functional theory (DFT), and the adsorption process and oxidation mechanism were investigated. Results show that during the adsorption, O2 has a strong interaction with α-Mg and Mg2Ca. The interactions are chemisorption due to the excellent Ead values, but the adsorption structures of Mg2Ca are not as stable as that of α-Mg. During the oxidation, O2 reacts with Ca and Mg atoms in α-Mg and Mg2Ca to form Mg-Ca-O oxide film, hence improving the oxidation resistance of Mg-Ca alloy. Since the adsorption structure of Mg2Ca is not as stable as that of α-Mg, the oxide film formed by Mg2Ca shows weaker protective effect on the substrate than that formed by α-Mg.
2022, 51(10):3574-3579.
DOI: 10.12442/j.issn.1002-185X.20210946
Abstract:

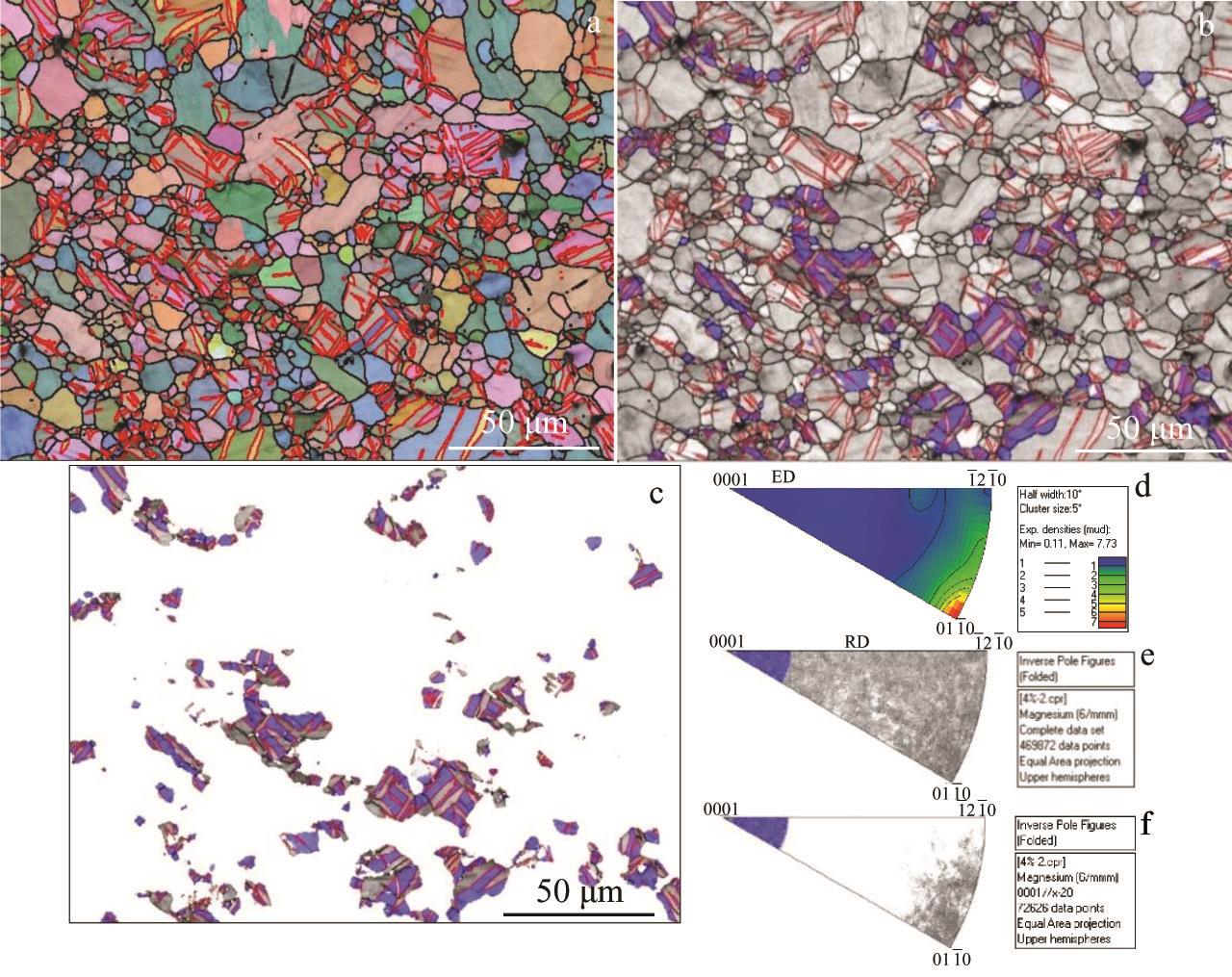

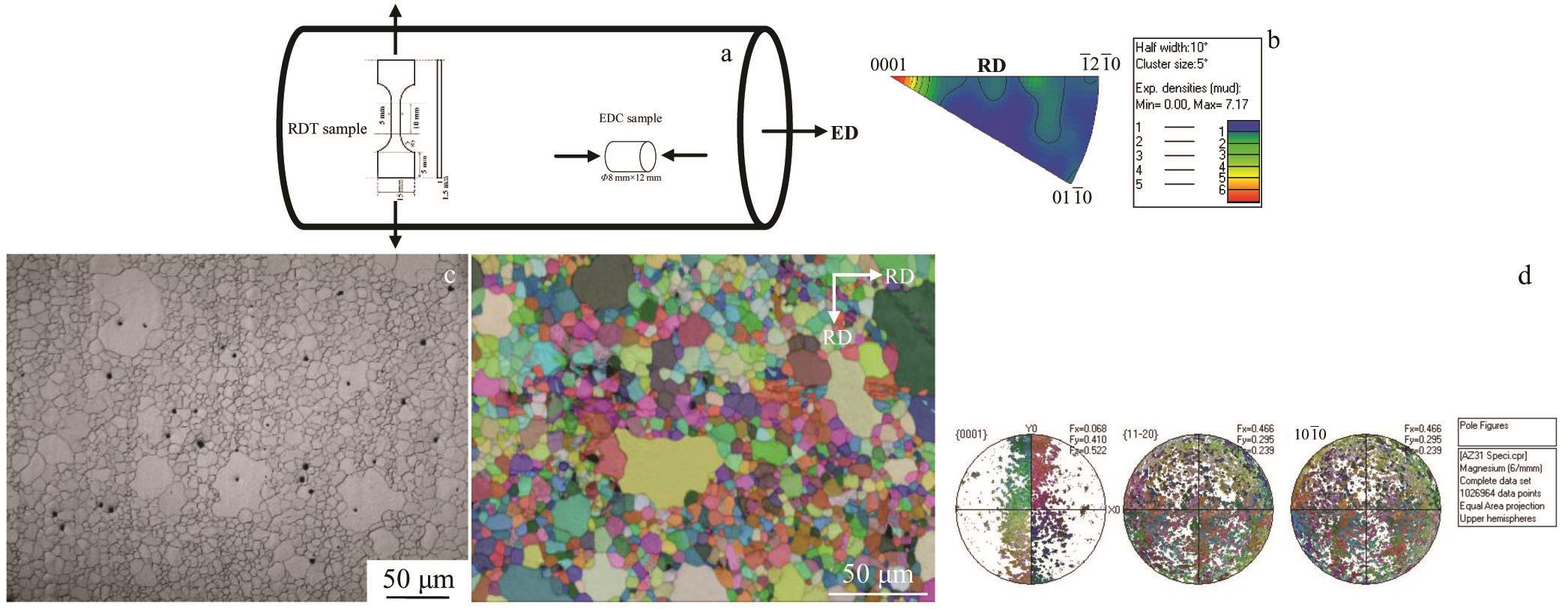

Tension parallel to the radial direction (RDT) and compression along the extrusion direction (EDC) of an extruded AZ31 Mg alloy bar were conducted under a strain rate of 10-4 s-1 at room temperature. Twinning behavior was characterized by optical microscopy (OM) and electron backscatter diffraction (EBSD). The results demonstrate that extension twins have an effect on the yield point; the yield point of the alloy under EDC is 139 MPa which is higher than 88 MPa of the alloy under RDT. With increasing strain, strain hardening rates under these two stress states show a trend of fast decline at first, and then the hardening rates under EDC start to increase obviously till fracture while that under RDT keeps almost a constant. The increase in the hardening rate under EDC is related to the formation of extension twins and the twinning texture-induced slip activity. A method to measure the twin volume fraction in grains based on EBSD results was proposed. Under RDT, the volume fraction of extension twin in (0002) grains is about 45% at the strain of 0.04.
Tension parallel to the radial direction (RDT) and compression along the extrusion direction (EDC) of an extruded AZ31 Mg alloy bar were conducted under a strain rate of 10-4 s-1 at room temperature. Twinning behavior was characterized by optical microscopy (OM) and electron backscatter diffraction (EBSD). The results demonstrate that extension twins have an effect on the yield point; the yield point of the alloy under EDC is 139 MPa which is higher than 88 MPa of the alloy under RDT. With increasing strain, strain hardening rates under these two stress states show a trend of fast decline at first, and then the hardening rates under EDC start to increase obviously till fracture while that under RDT keeps almost a constant. The increase in the hardening rate under EDC is related to the formation of extension twins and the twinning texture-induced slip activity. A method to measure the twin volume fraction in grains based on EBSD results was proposed. Under RDT, the volume fraction of extension twin in (0002) grains is about 45% at the strain of 0.04.
Ji Quanxin
,
Du Jinghong
,
Zhang Yijie
,
Li Yuzhang
,
Feng Weiguang
,
Sun Yanhua
,
Yan Jikang
,
Gan Guoyou

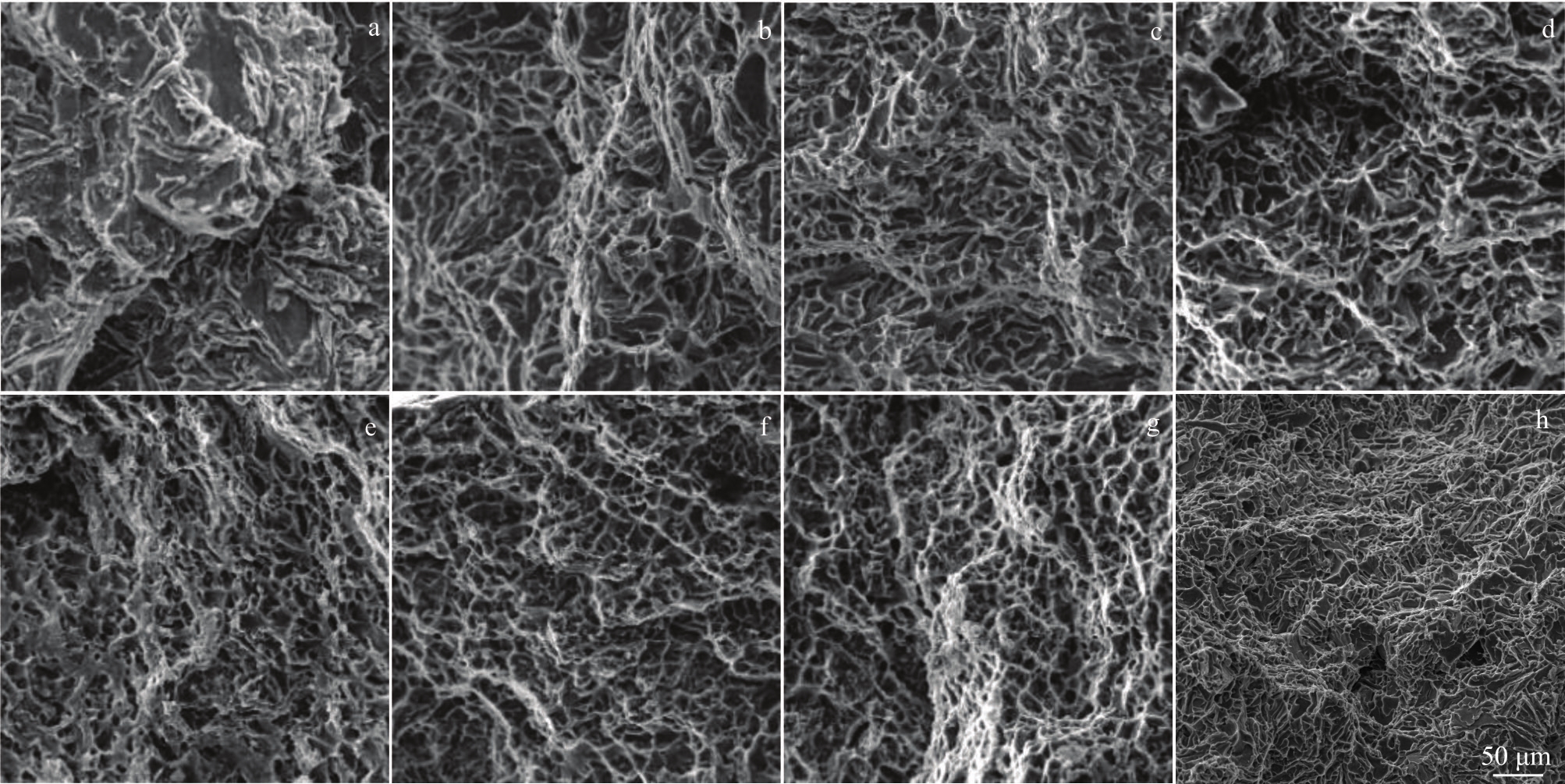

2022, 51(10):3580-3587.
DOI: 10.12442/j.issn.1002-185X.20210908
Abstract:

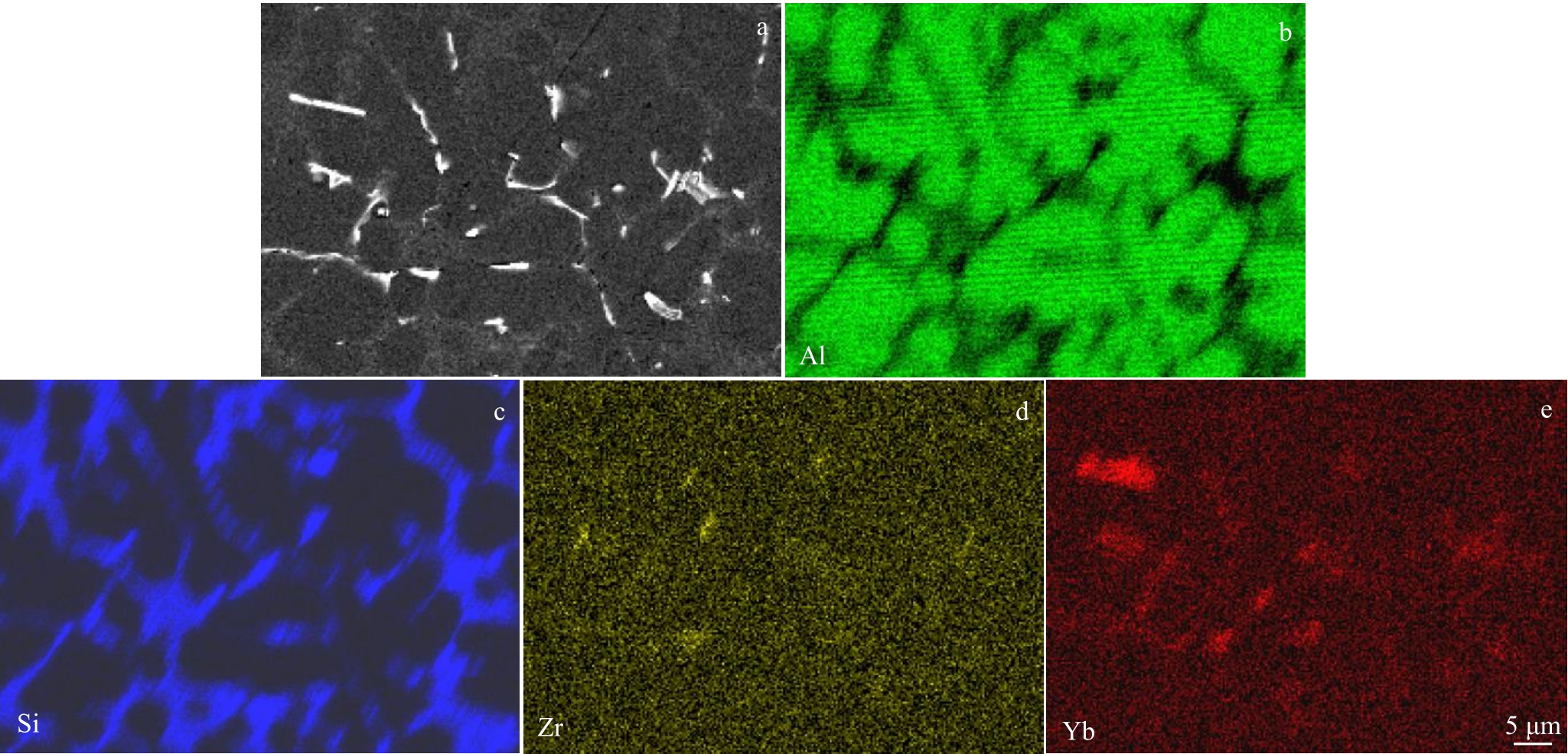

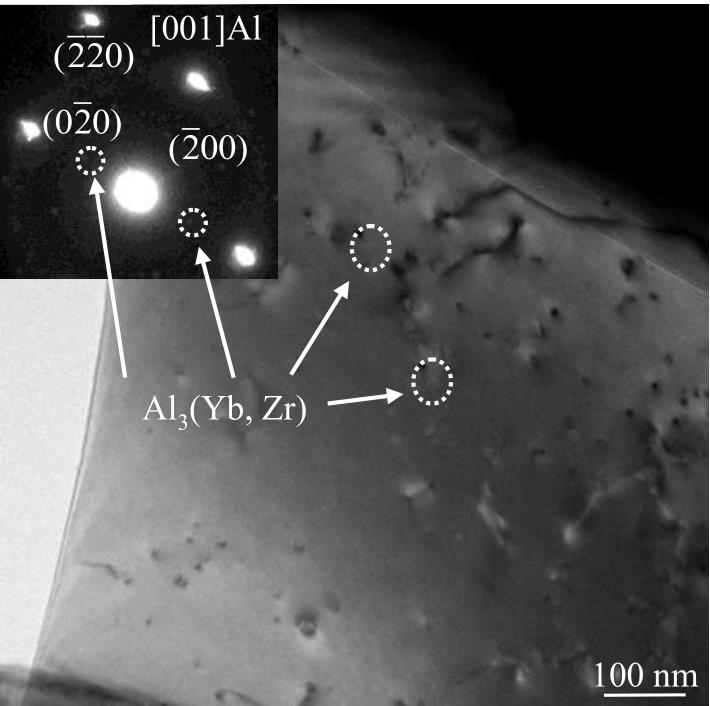

The effects of adding Yb and Zr elements on the microstructure and mechanical properties of Al7Si0.3Mg alloy and the mechanism of refinement and modification were investigated. The results show that the addition of Yb and Zr elements can significantly refine the α-Al matrix, transforming it from coarse dendritic crystals to fine petal-like crystals with a significant reduction in grain size, and the eutectic silicon metamorphoses from coarse needle-like to short rod-like. The modification mechanism of eutectic silicon is that the adsorption of Yb and Zr at the twin grooves (TPRE) changes the eutectic silicon growth mode and finally changes the eutectic silicon morphology. After heat treatment (T6), a large number of Al3(Yb, Zr) particles are precipitated to strengthen and refine the grain, and the addition of Yb and Zr can significantly improve the mechanical properties of the alloy. The tensile strength and elongation of the alloy (T6) are 296.3 MPa and 9.2% when the Yb content is 0.3wt% and the Zr content is 0.25wt%, which are 17% and 1.1 times higher than those of the unrefined and unmodified alloy, respectively.
The effects of adding Yb and Zr elements on the microstructure and mechanical properties of Al7Si0.3Mg alloy and the mechanism of refinement and modification were investigated. The results show that the addition of Yb and Zr elements can significantly refine the α-Al matrix, transforming it from coarse dendritic crystals to fine petal-like crystals with a significant reduction in grain size, and the eutectic silicon metamorphoses from coarse needle-like to short rod-like. The modification mechanism of eutectic silicon is that the adsorption of Yb and Zr at the twin grooves (TPRE) changes the eutectic silicon growth mode and finally changes the eutectic silicon morphology. After heat treatment (T6), a large number of Al3(Yb, Zr) particles are precipitated to strengthen and refine the grain, and the addition of Yb and Zr can significantly improve the mechanical properties of the alloy. The tensile strength and elongation of the alloy (T6) are 296.3 MPa and 9.2% when the Yb content is 0.3wt% and the Zr content is 0.25wt%, which are 17% and 1.1 times higher than those of the unrefined and unmodified alloy, respectively.
Zhang Yijie
,
Du Jinghong
,
Ji Quanxin
,
Sun Yanhua
,
Feng Weiguang
,
Bao Chongjun
,
Li Yuzhang
,
Yan Jikang
2022, 51(10):3588-3595.
DOI: 10.12442/j.issn.1002-185X.20210938
Abstract:

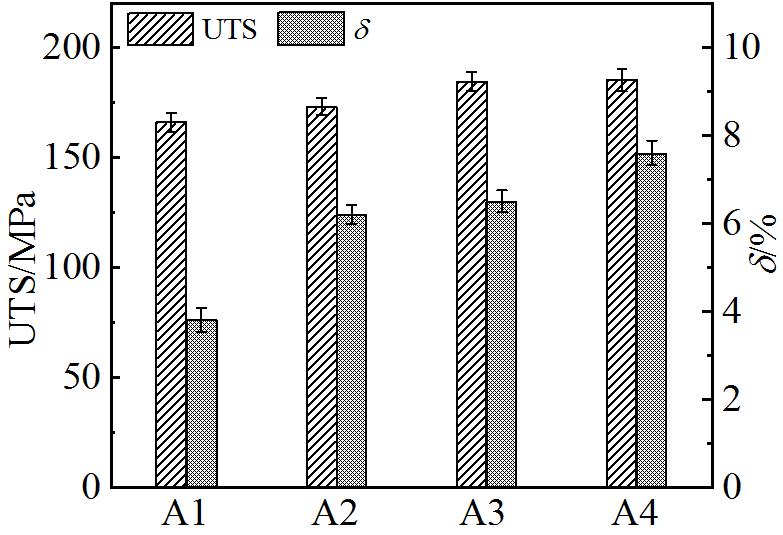

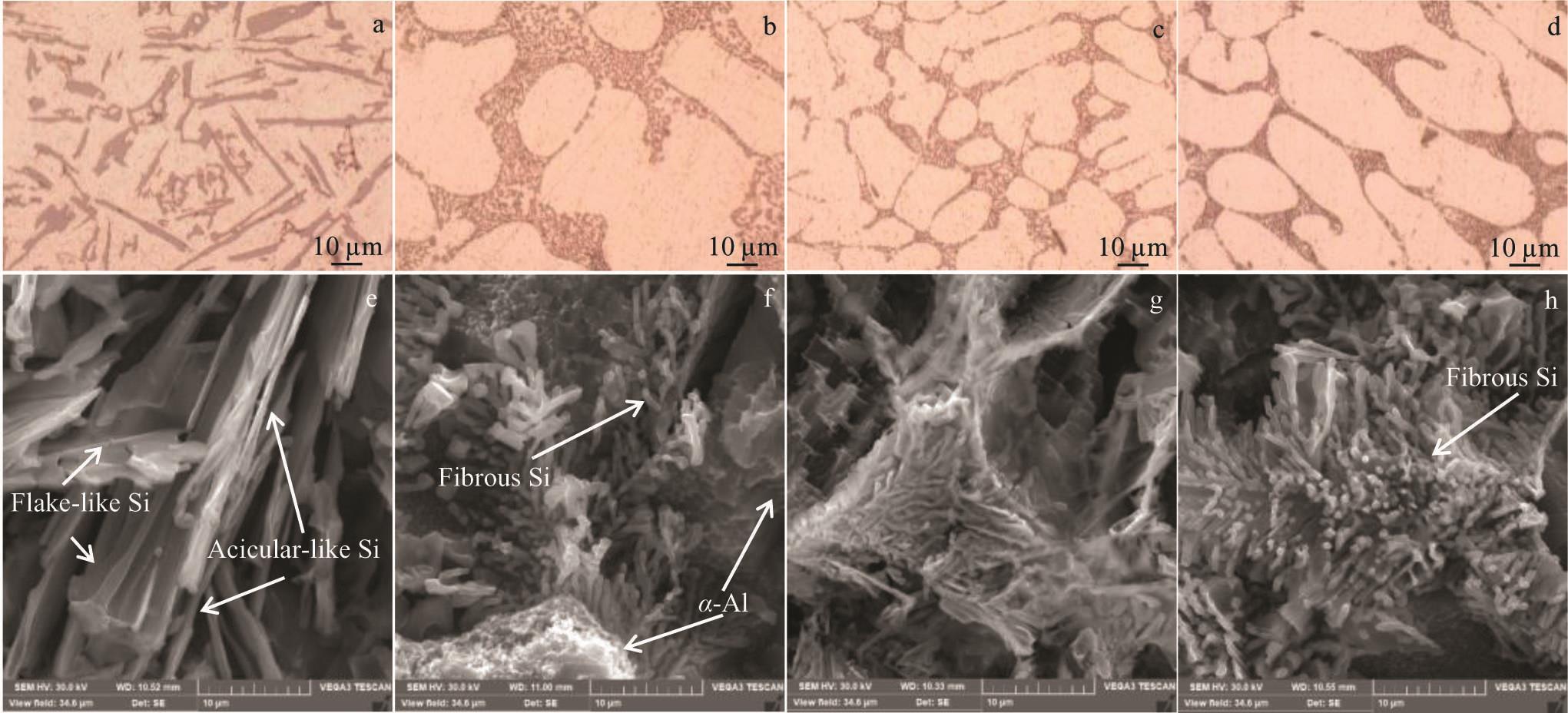

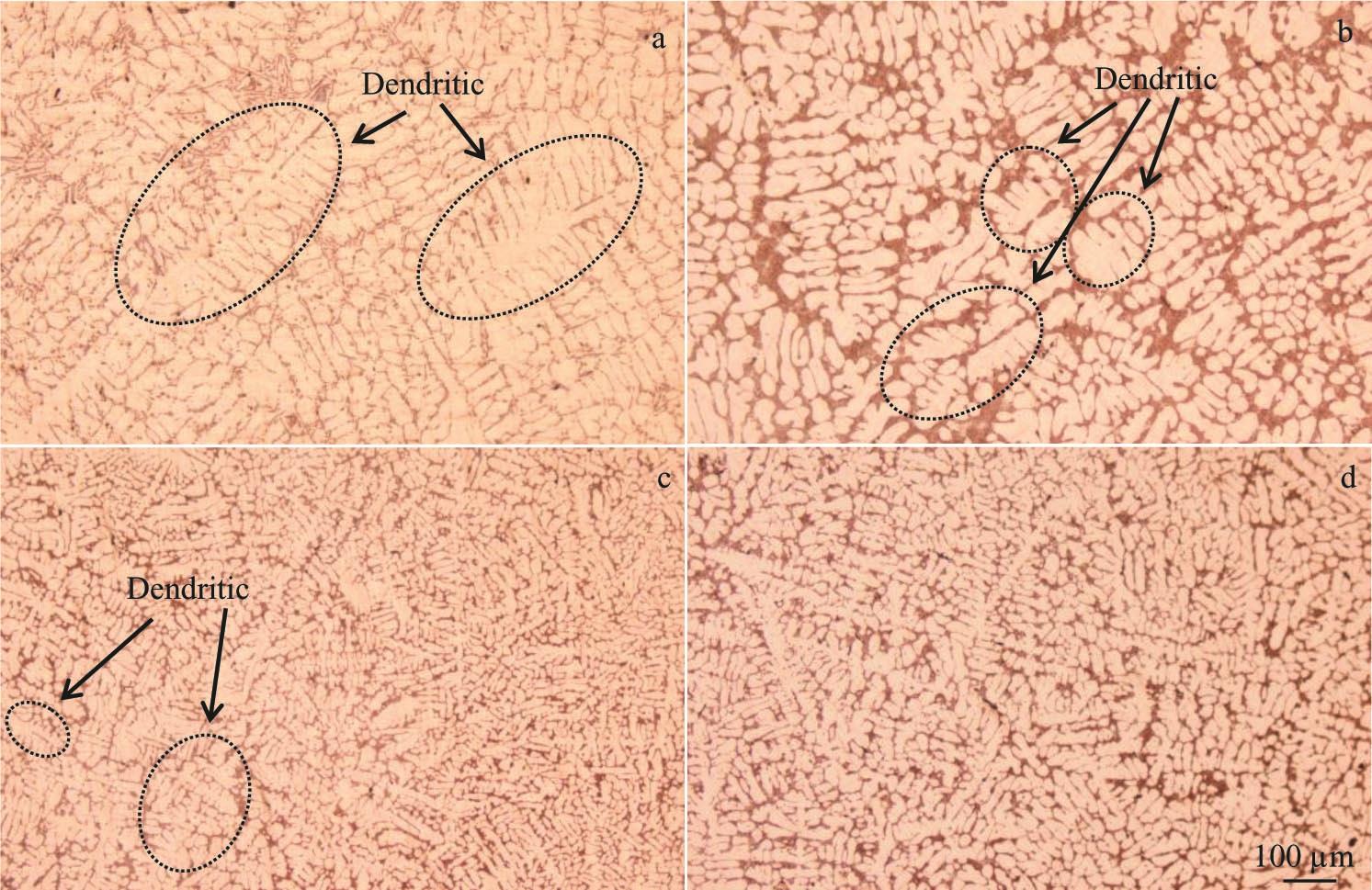

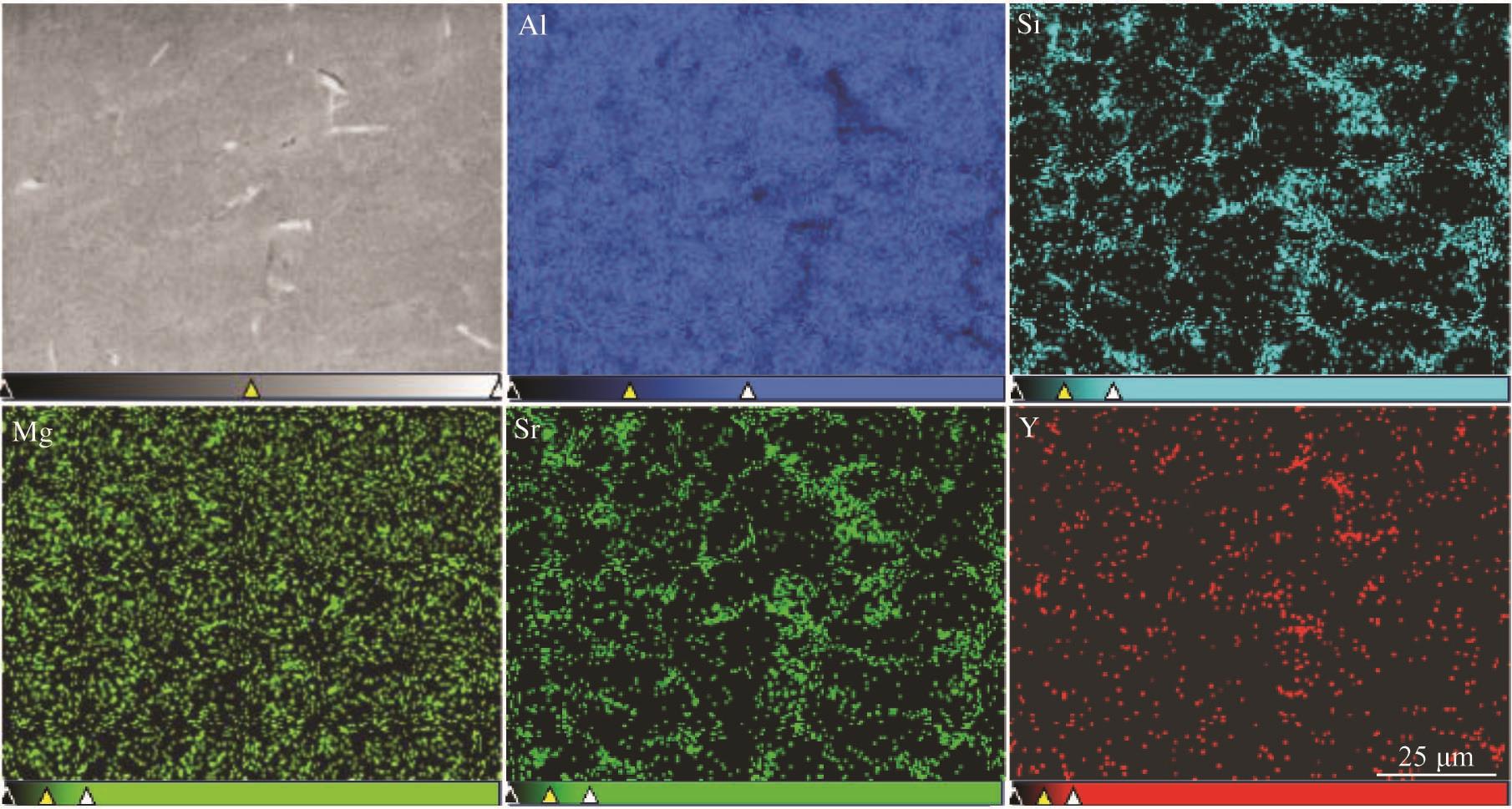

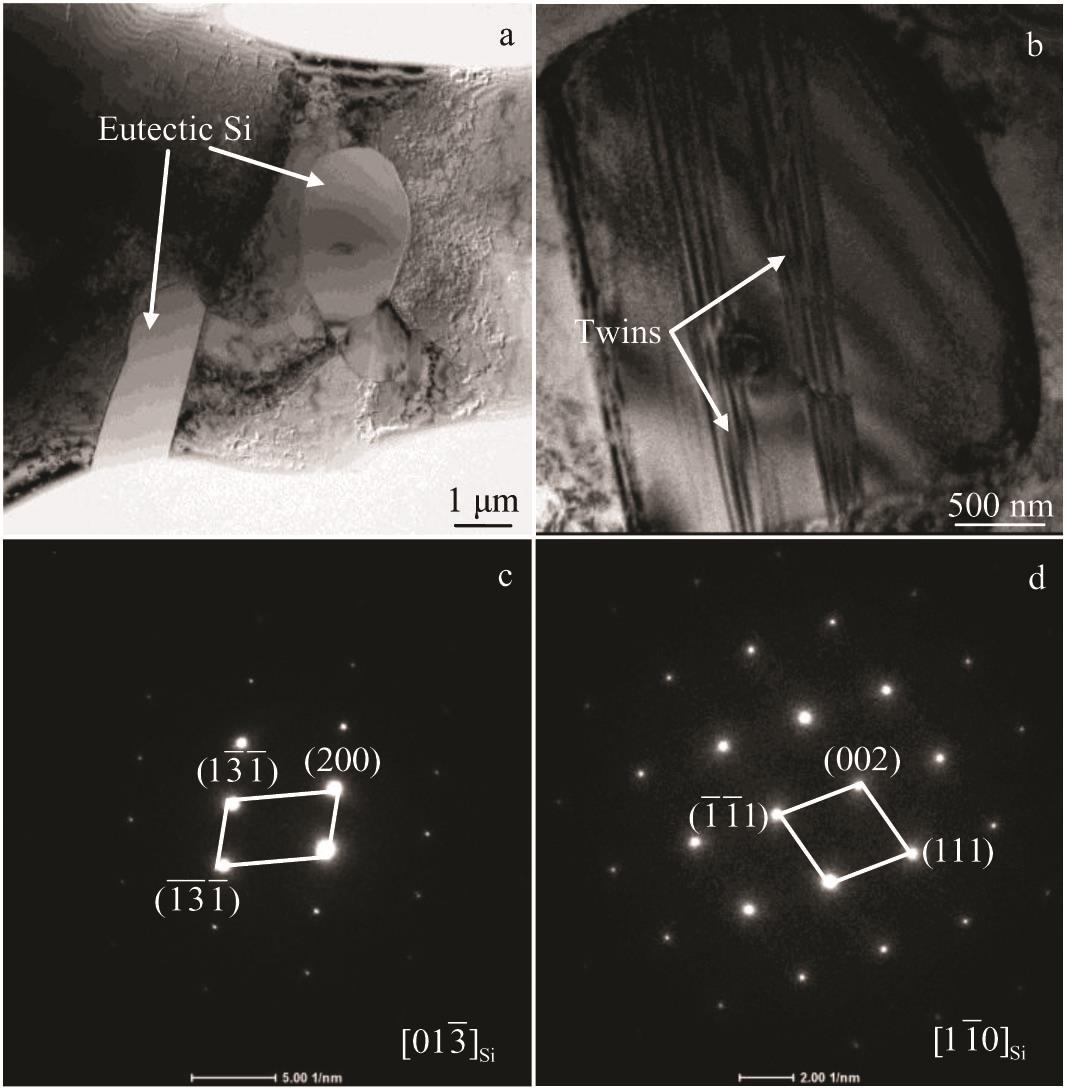

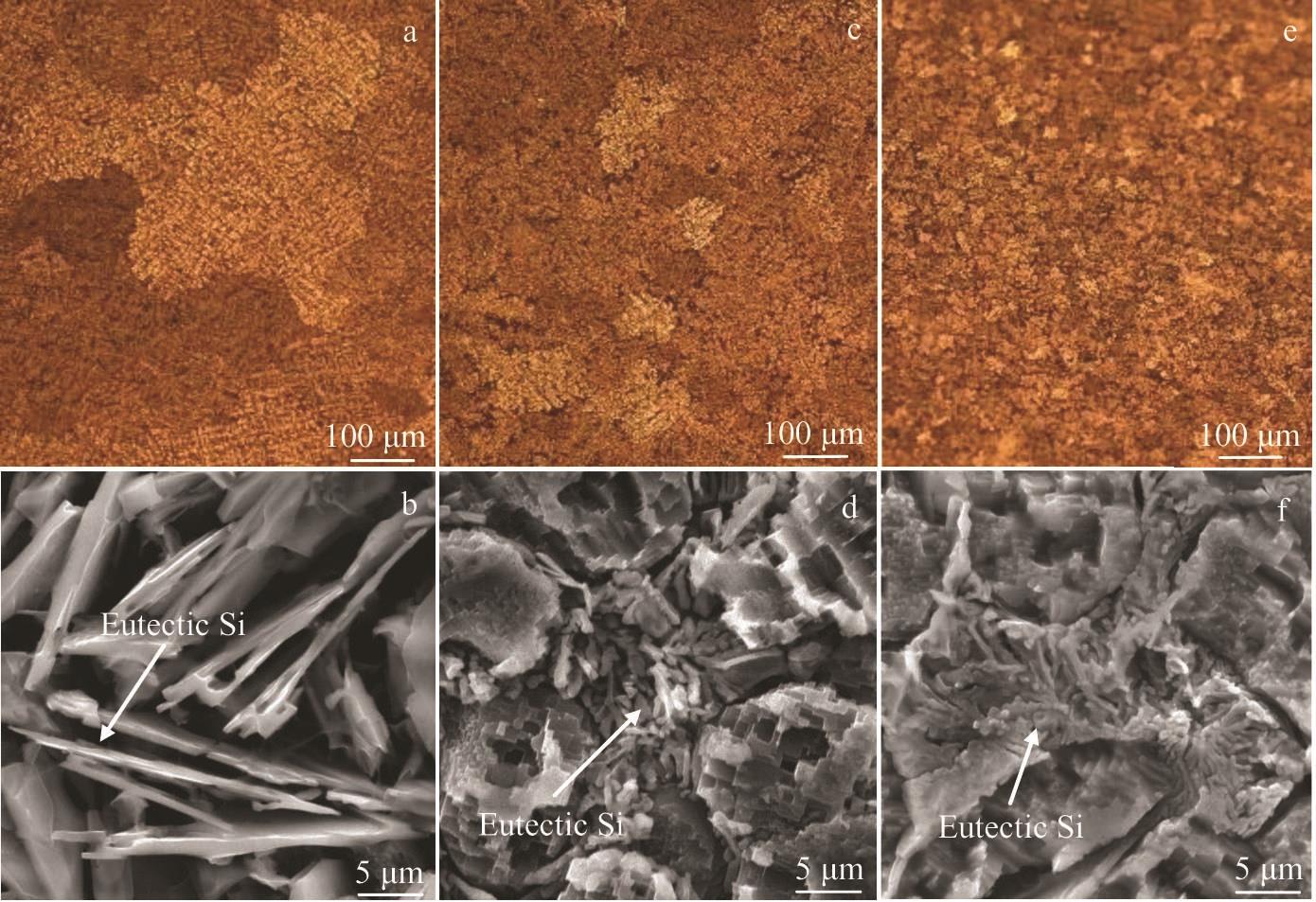

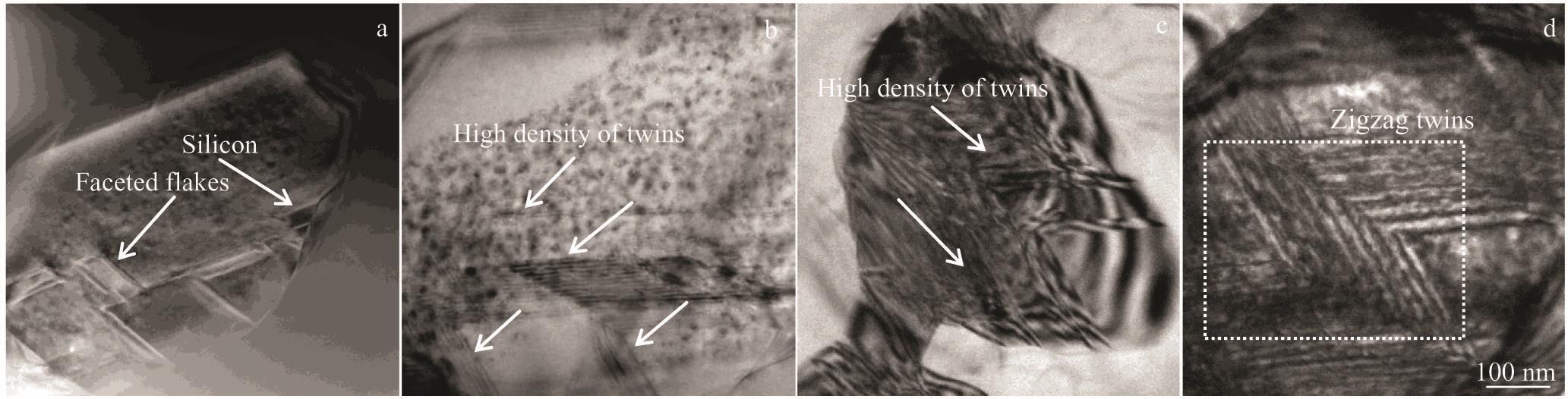

The effects of Sr and Y addition on the microstructure and mechanical properties of A356 aluminum alloy were studied by metallographic microscope, scanning electron microscope, transmission electron microscope, energy dispersive spectra and mechanical property tests. The results show that the combined addition of Sr and Y can obtain the best microstructure and mechanical properties compared with the separate addition of Sr or Y. The eutectic Si changes completely from flake-like or acicular-like to fibrous shape, the equivalent grain diameter of α-Al decreases from 42.49 μm to 26.63 μm, the secondary dendrite arms spacing (SDAS) decreases from 22.38 μm to 13.60 μm, the tensile strength increases from 166.1 MPa to 185.3 MPa, the elongation increases from 3.6% to 7.6%, and the fracture mode changes from brittle fracture to ductile-brittle fracture. The refinement mechanism and modification mechanism of Sr and Y were discussed. It is concluded that the main reason for α-Al grain refinement is the rapid heterogeneous nucleation of α-Al based on Al3Y, and the modification mechanism is impurity-induced twins which grow in the mechanism of twin plane reentrant edge.
The effects of Sr and Y addition on the microstructure and mechanical properties of A356 aluminum alloy were studied by metallographic microscope, scanning electron microscope, transmission electron microscope, energy dispersive spectra and mechanical property tests. The results show that the combined addition of Sr and Y can obtain the best microstructure and mechanical properties compared with the separate addition of Sr or Y. The eutectic Si changes completely from flake-like or acicular-like to fibrous shape, the equivalent grain diameter of α-Al decreases from 42.49 μm to 26.63 μm, the secondary dendrite arms spacing (SDAS) decreases from 22.38 μm to 13.60 μm, the tensile strength increases from 166.1 MPa to 185.3 MPa, the elongation increases from 3.6% to 7.6%, and the fracture mode changes from brittle fracture to ductile-brittle fracture. The refinement mechanism and modification mechanism of Sr and Y were discussed. It is concluded that the main reason for α-Al grain refinement is the rapid heterogeneous nucleation of α-Al based on Al3Y, and the modification mechanism is impurity-induced twins which grow in the mechanism of twin plane reentrant edge.
2022, 51(10):3596-3601.
DOI: 10.12442/j.issn.1002-185X.20210935
Abstract:

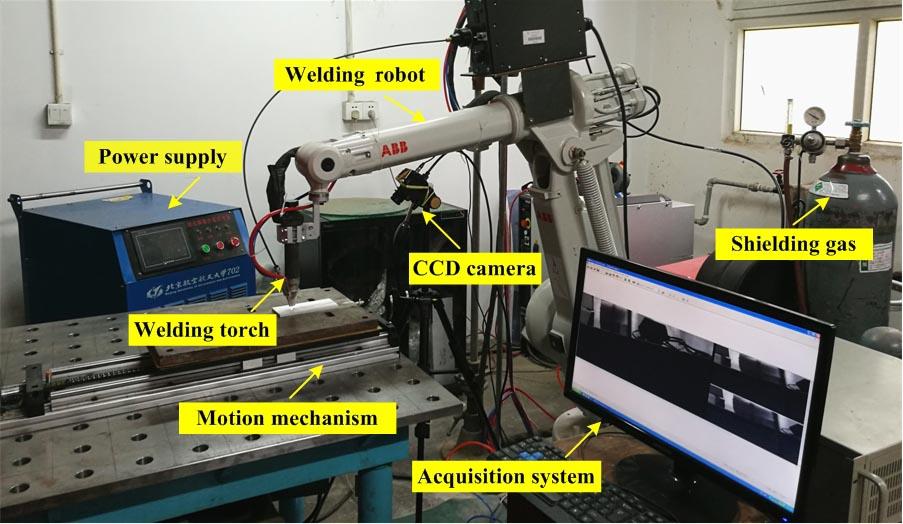

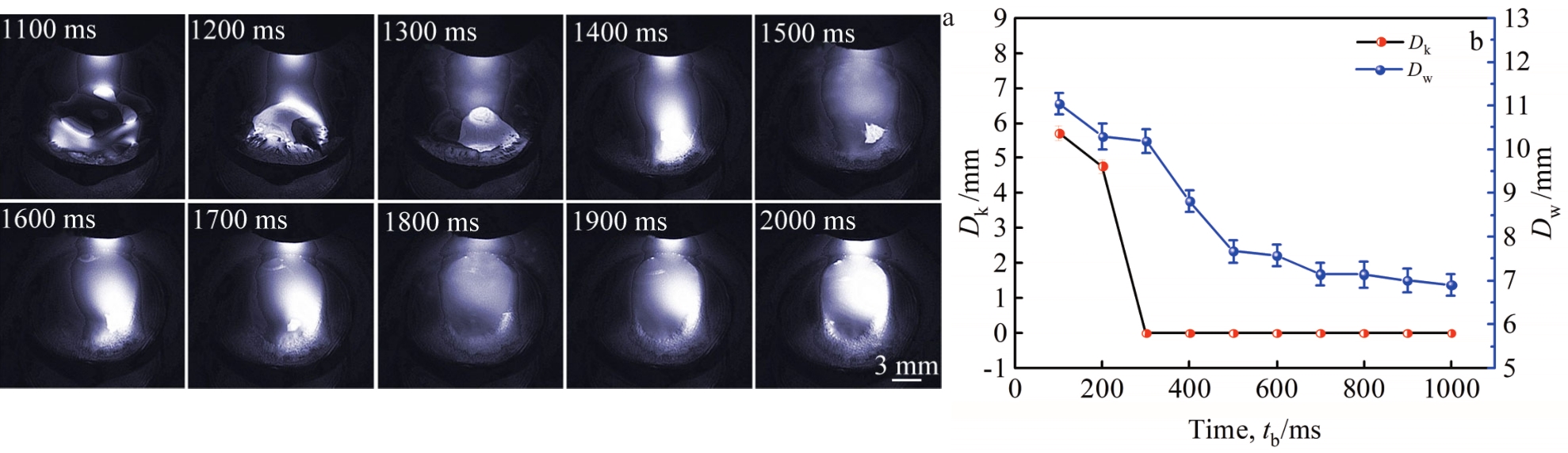

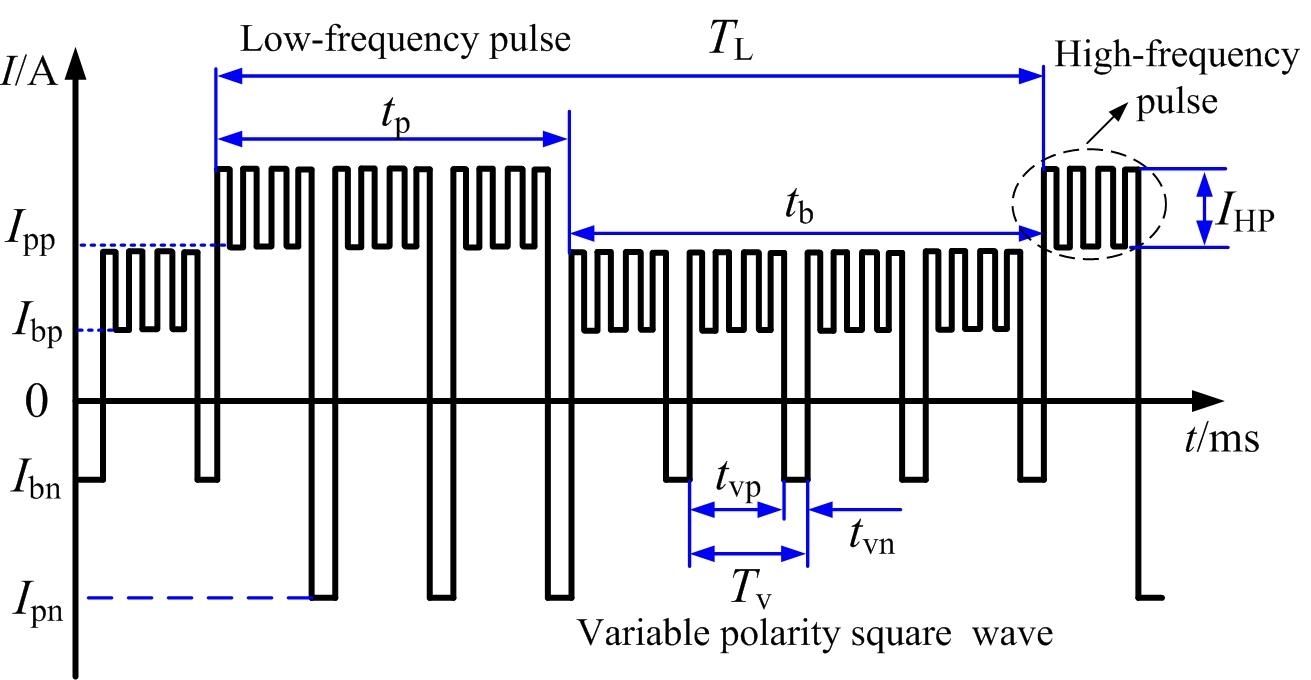

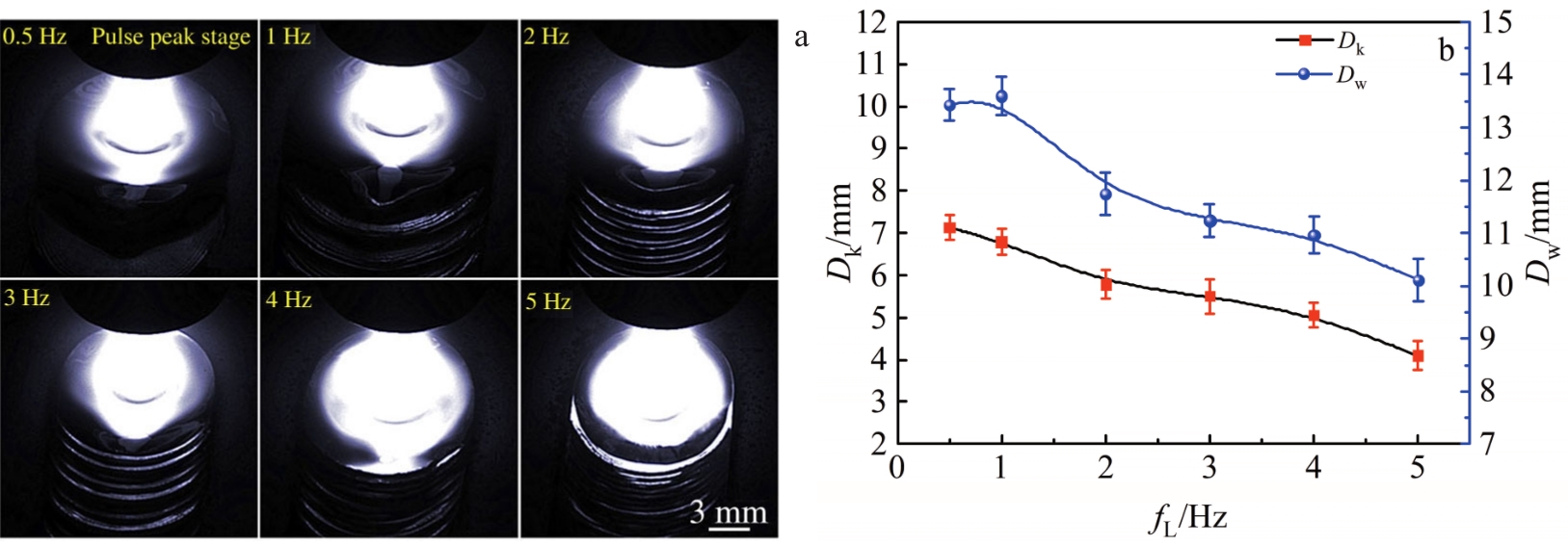

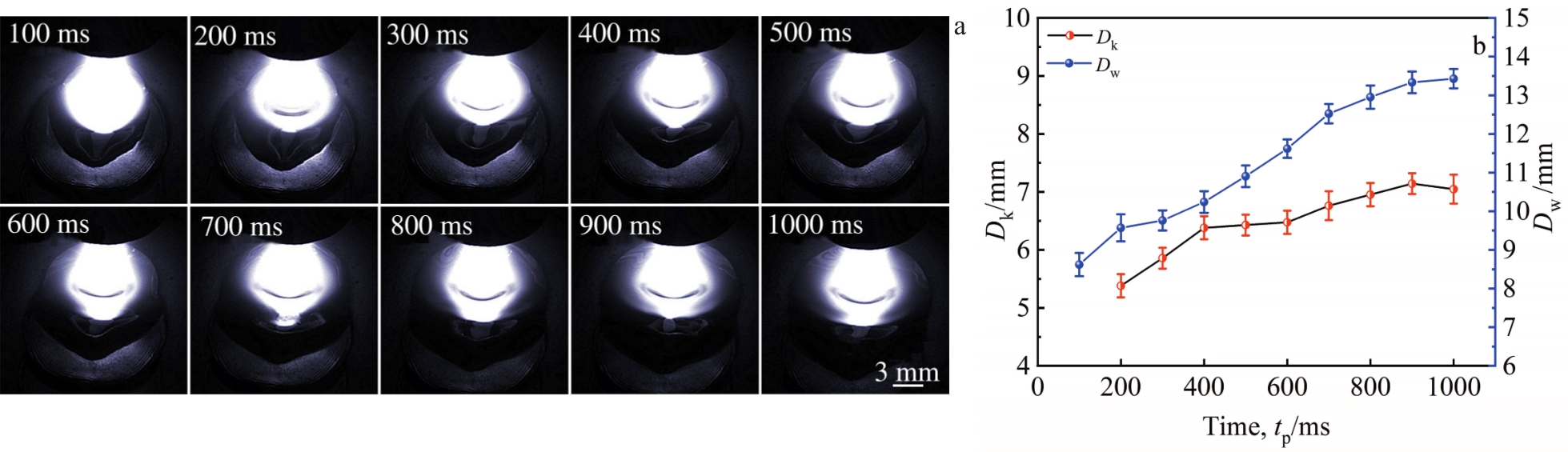

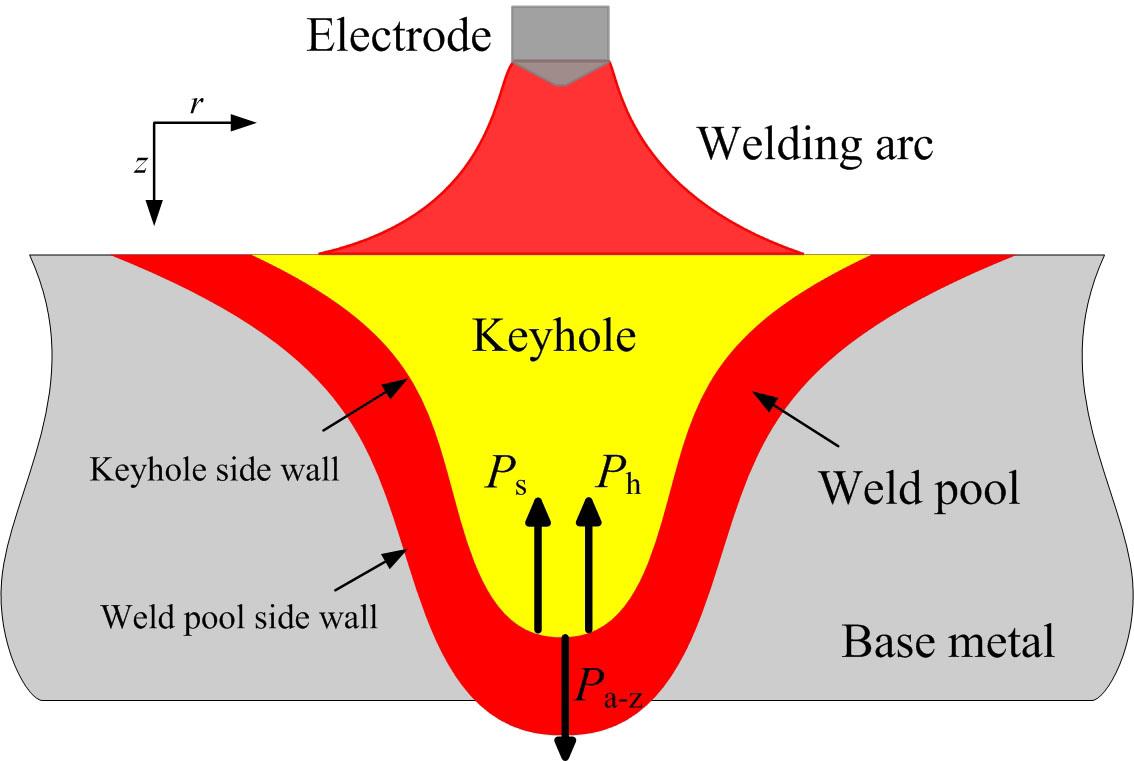

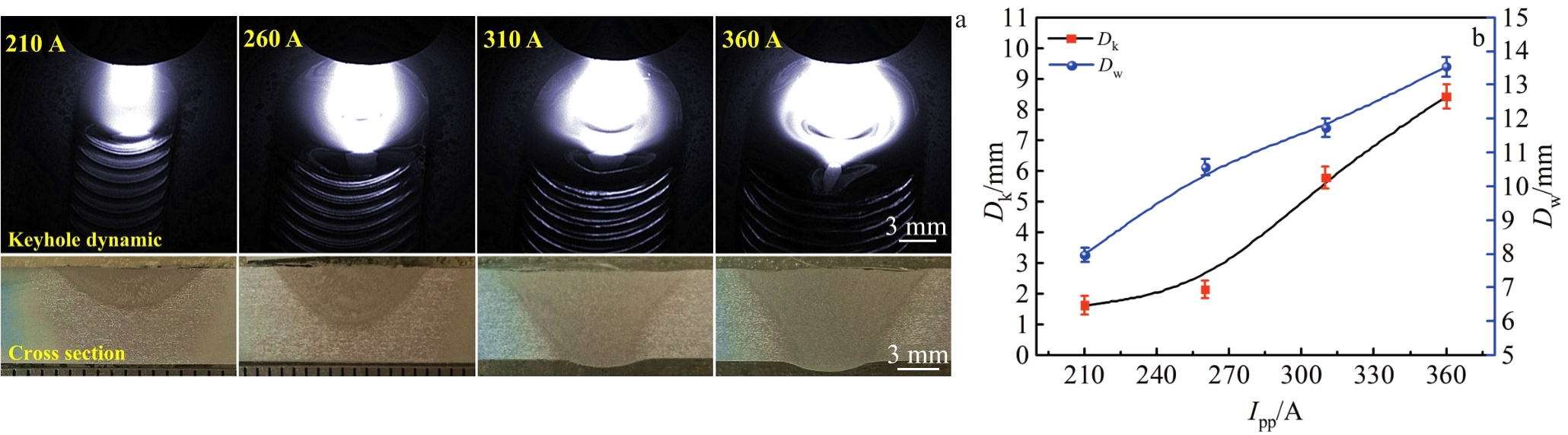

Keyhole tungsten inert gas (K-TIG) welding is a variant of TIG welding, which can largely improve the weld penetration depth by forming keyholes inside the molten pool during welding. However, K-TIG welding is generally considered unsuitable for aluminum alloys due to their high thermal conductivity. A novel double-pulsed variable polarity TIG (DP-VPTIG) welding process was employed and the stable full penetration keyhole welding of 7 mm-thick AA2219 aluminum alloy was achieved. Keyhole dynamic evolution for DP-VPTIG was investigated based on visual sensing technology. Results indicate that in low-pulsed peak stage of DP-VPTIG process, the keyhole forms under the dominant role of the downward arc pressure against the upward surface tension and hydrostatic pressure acting on the surface of the molten pool, while the keyhole is closed as the upward surface tension and hydrostatic pressure become the dominant role in low-pulsed base stage. The periodic variation of low-frequency pulse in DP-VPTIG process stimulates a periodic keyhole behavior of “opening” and “closing” in the molten pool. The formation of keyhole is beneficial to the increase of weld penetration depth as the arc moves downwards along the keyhole and directly heats the solid metal under the molten pool. The keyhole size decreases with the increase of low-pulsed frequency.
Keyhole tungsten inert gas (K-TIG) welding is a variant of TIG welding, which can largely improve the weld penetration depth by forming keyholes inside the molten pool during welding. However, K-TIG welding is generally considered unsuitable for aluminum alloys due to their high thermal conductivity. A novel double-pulsed variable polarity TIG (DP-VPTIG) welding process was employed and the stable full penetration keyhole welding of 7 mm-thick AA2219 aluminum alloy was achieved. Keyhole dynamic evolution for DP-VPTIG was investigated based on visual sensing technology. Results indicate that in low-pulsed peak stage of DP-VPTIG process, the keyhole forms under the dominant role of the downward arc pressure against the upward surface tension and hydrostatic pressure acting on the surface of the molten pool, while the keyhole is closed as the upward surface tension and hydrostatic pressure become the dominant role in low-pulsed base stage. The periodic variation of low-frequency pulse in DP-VPTIG process stimulates a periodic keyhole behavior of “opening” and “closing” in the molten pool. The formation of keyhole is beneficial to the increase of weld penetration depth as the arc moves downwards along the keyhole and directly heats the solid metal under the molten pool. The keyhole size decreases with the increase of low-pulsed frequency.
2022, 51(10):3602-3610.
DOI: 10.12442/j.issn.1002-185X.20220239
Abstract:

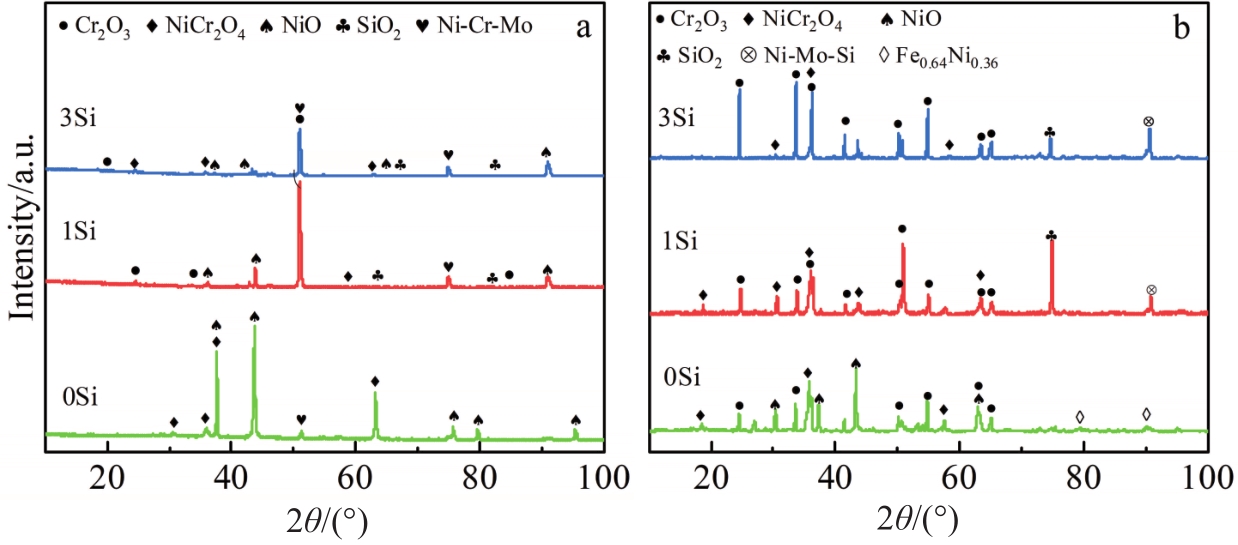

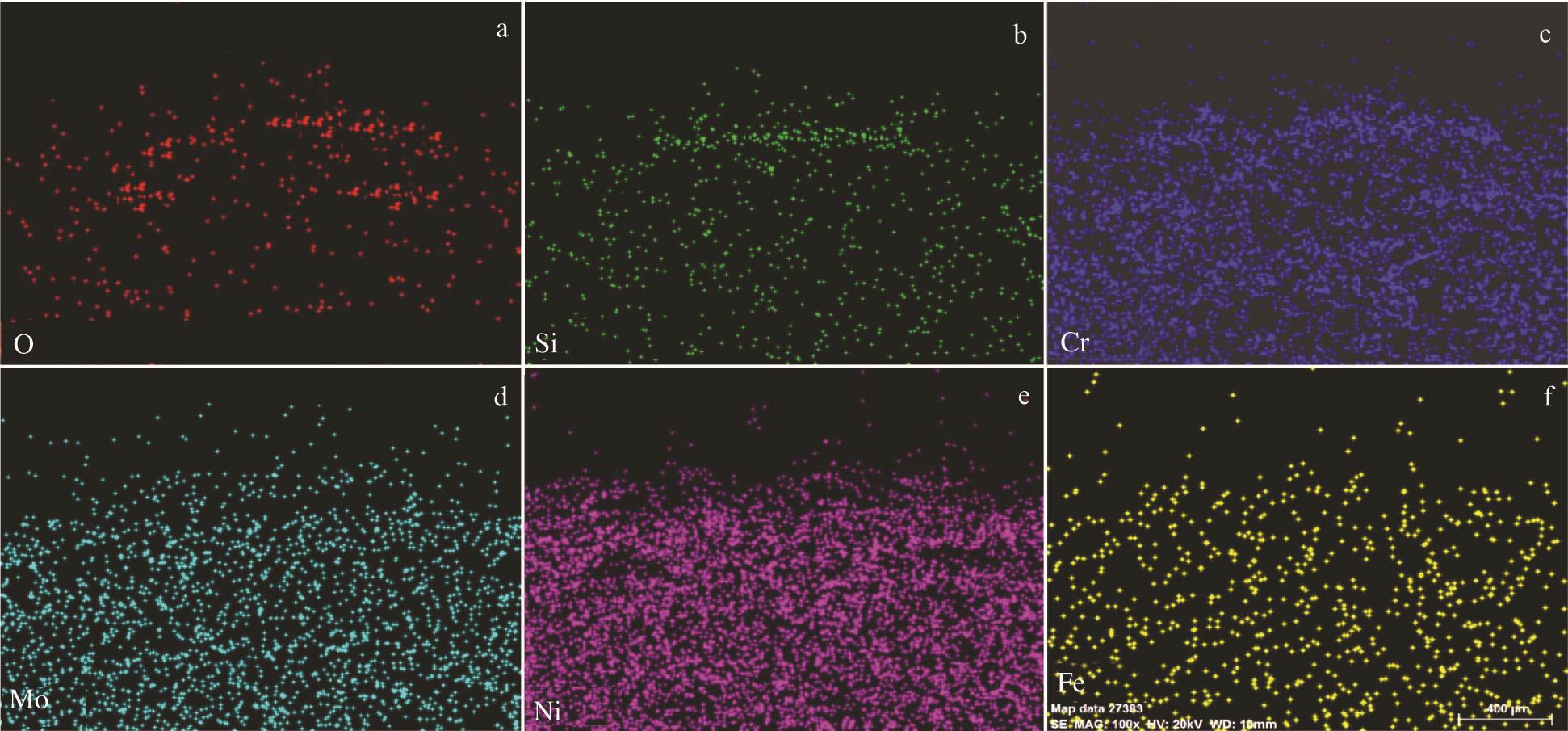

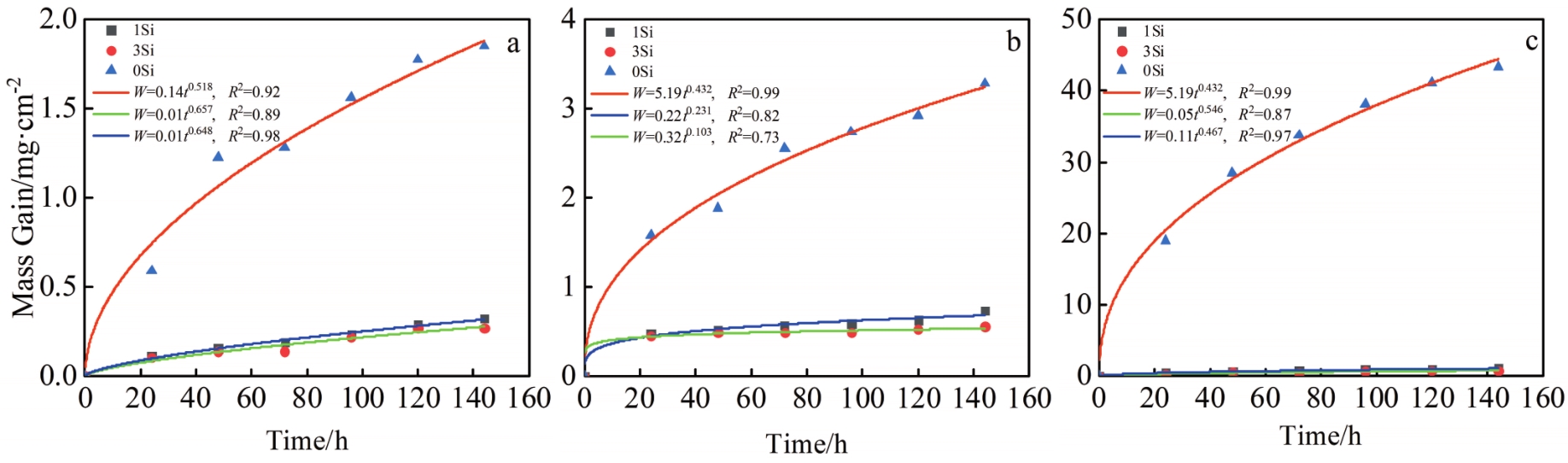

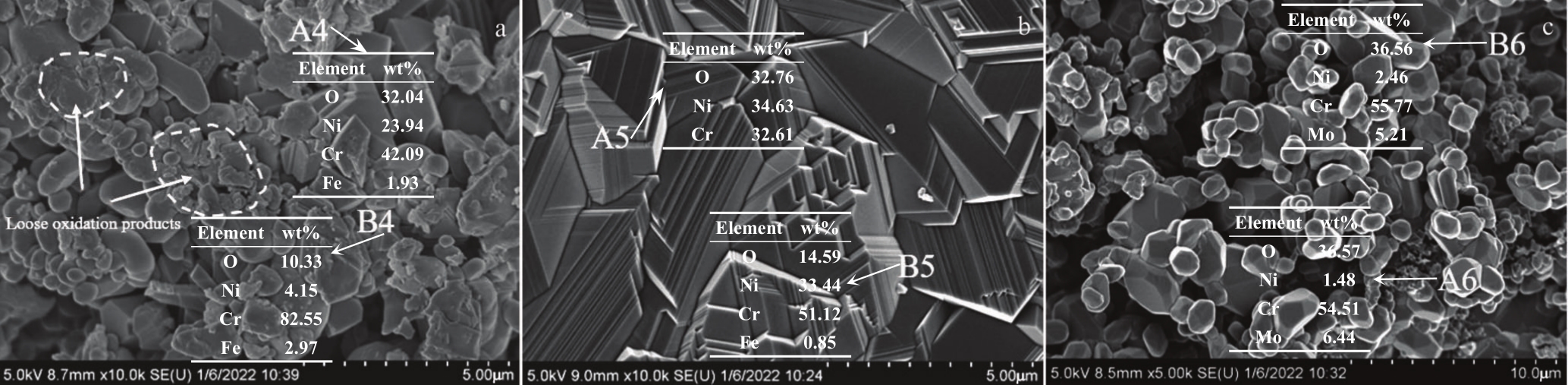

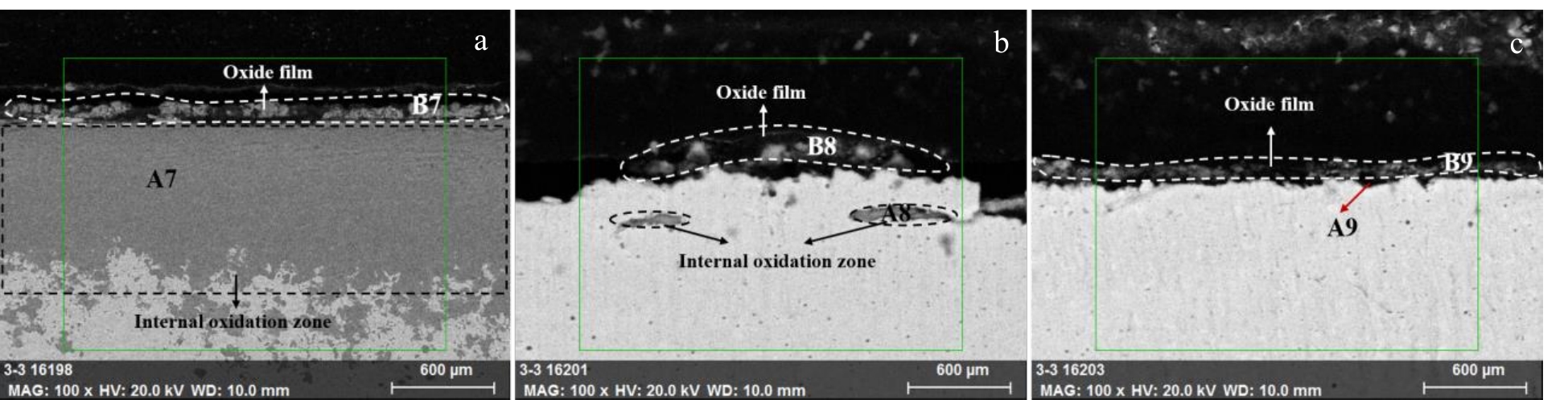

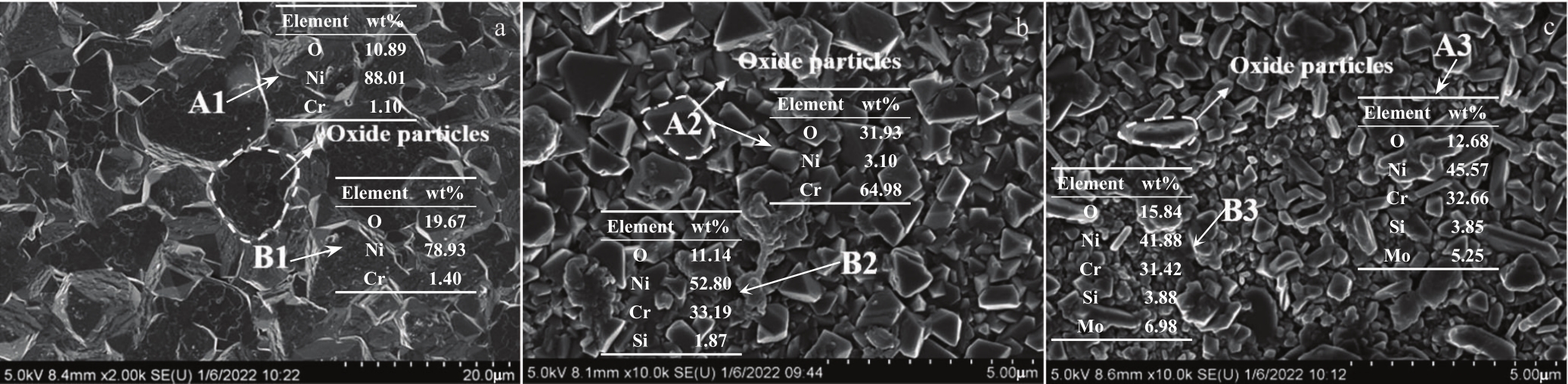

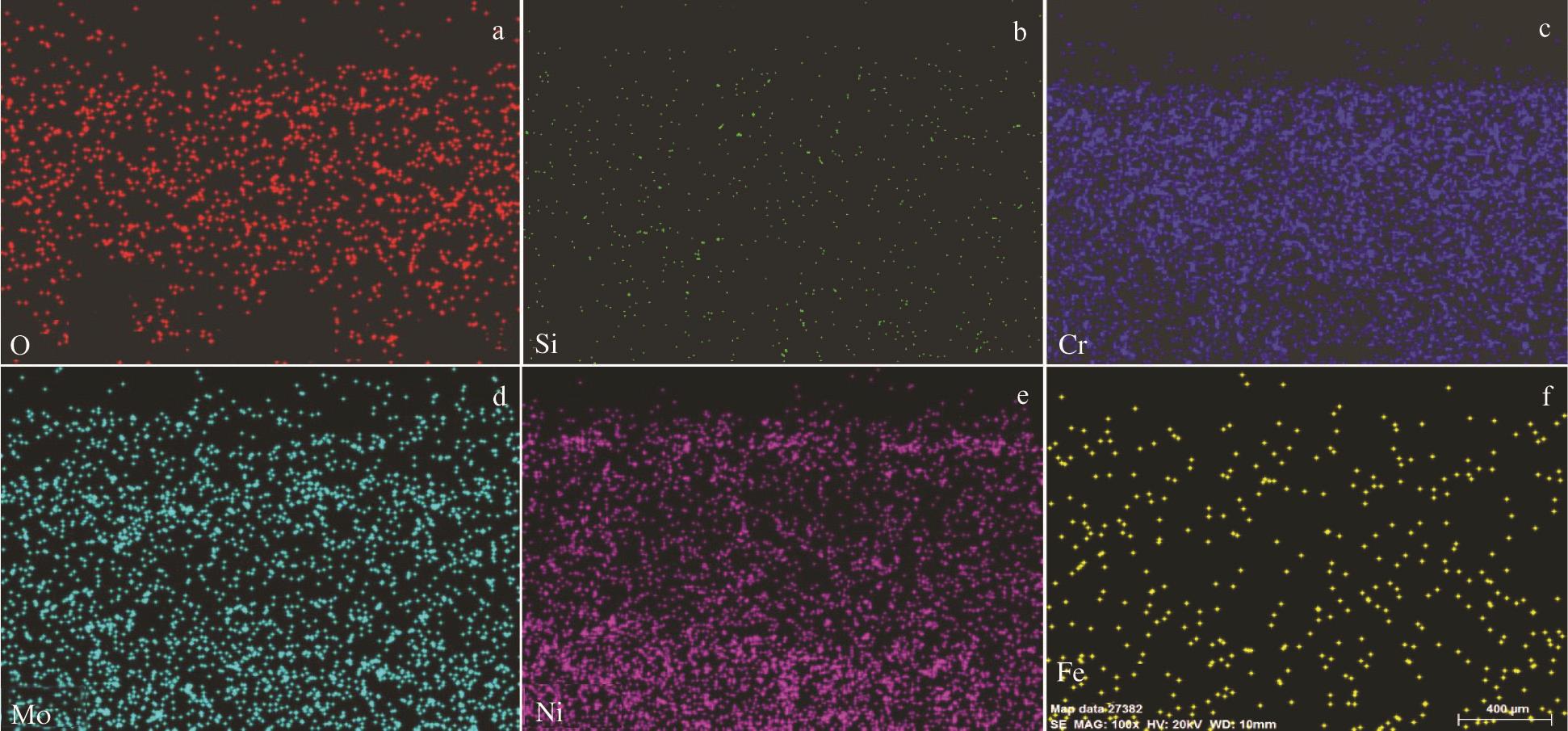

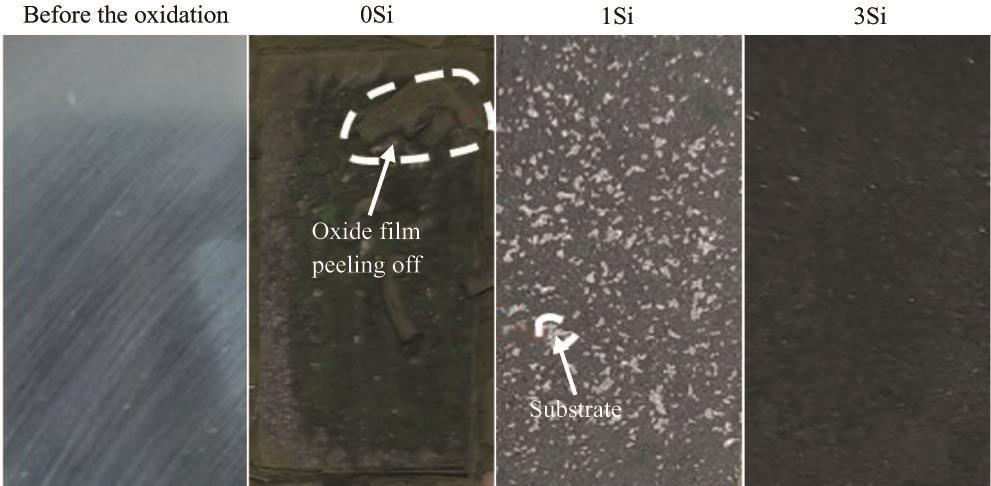

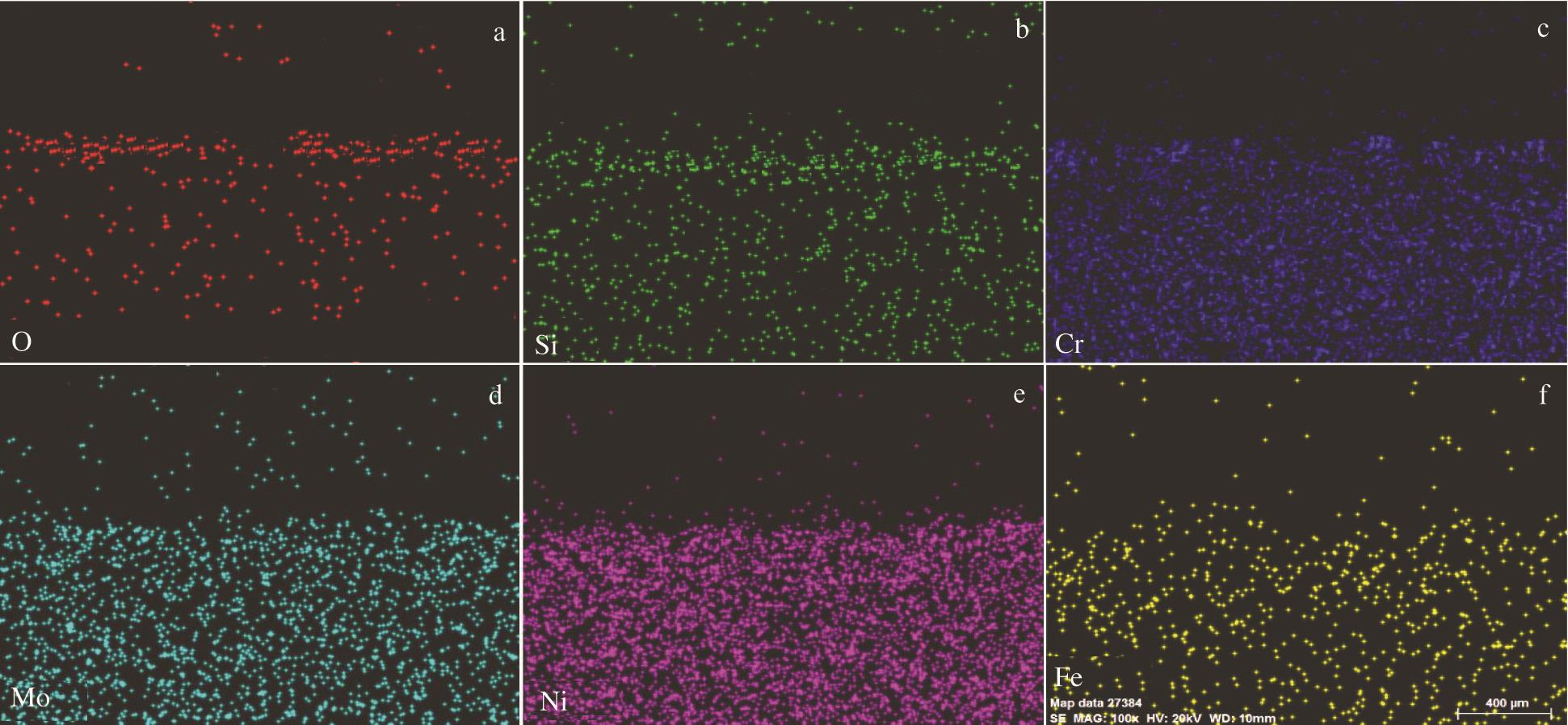

The high temperature oxidation behavior of 625 alloy cladding layer with different Si contents was studied by cyclic oxidation method after 144 h oxidation at 700, 800 and 900 °C. The oxide phase was analyzed by XRD. The surface and cross section morphology, elemental composition and oxide film thickness were studied by SEM/EDS. The results show that the oxidation kinetics of the samples at different temperatures keep a parabolic law, and the oxidation mass gain increases gradually with the increase of temperature. The oxidation film of 0wt% Si 625 alloy cladding sample peels off in a large area at 900 °C, while the oxidation film of 3wt% Si alloy cladding sample remains intact. With the increase of Si content at 700 °C, the oxidation particles on the surface of the oxide film decrease in size and become denser, which promotes the formation of Cr2O3. At 700 °C, a large area of internal oxidation appears in 0wt% Si sample, there are two strip oxides containing Ni, Cr and Mo in the substrate of 1wt% Si sample, while the inner oxidation of 3wt% Si samples is prevented due to the formation of Si-rich inner oxidation layer. The combined effect of the outer layer of Cr2O3 oxide film and the inner layer of SiO2 not only prevents the infiltration of O anions but also inhibits the diffusion of Fe and other metal ions, thus improving the oxidation resistance of the alloy cladding.
The high temperature oxidation behavior of 625 alloy cladding layer with different Si contents was studied by cyclic oxidation method after 144 h oxidation at 700, 800 and 900 °C. The oxide phase was analyzed by XRD. The surface and cross section morphology, elemental composition and oxide film thickness were studied by SEM/EDS. The results show that the oxidation kinetics of the samples at different temperatures keep a parabolic law, and the oxidation mass gain increases gradually with the increase of temperature. The oxidation film of 0wt% Si 625 alloy cladding sample peels off in a large area at 900 °C, while the oxidation film of 3wt% Si alloy cladding sample remains intact. With the increase of Si content at 700 °C, the oxidation particles on the surface of the oxide film decrease in size and become denser, which promotes the formation of Cr2O3. At 700 °C, a large area of internal oxidation appears in 0wt% Si sample, there are two strip oxides containing Ni, Cr and Mo in the substrate of 1wt% Si sample, while the inner oxidation of 3wt% Si samples is prevented due to the formation of Si-rich inner oxidation layer. The combined effect of the outer layer of Cr2O3 oxide film and the inner layer of SiO2 not only prevents the infiltration of O anions but also inhibits the diffusion of Fe and other metal ions, thus improving the oxidation resistance of the alloy cladding.

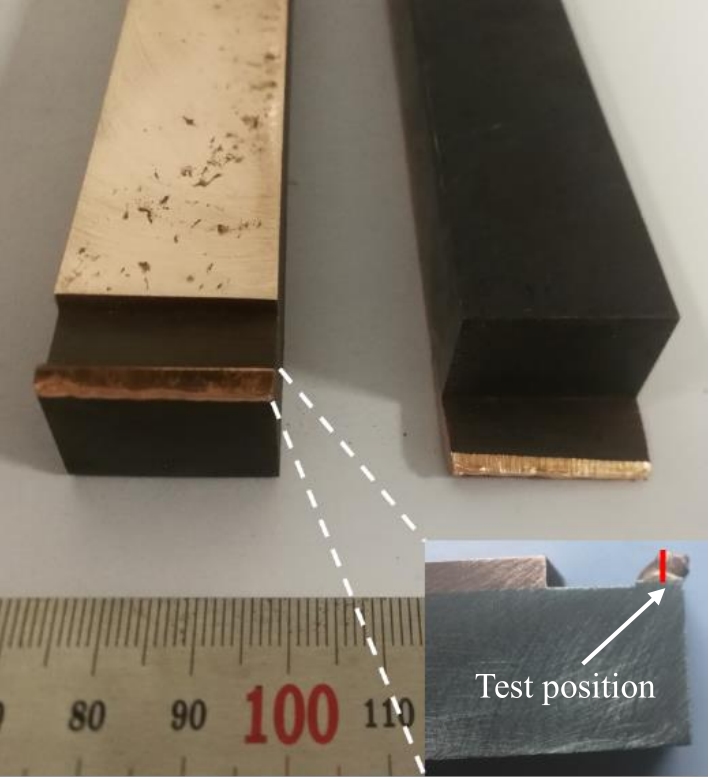

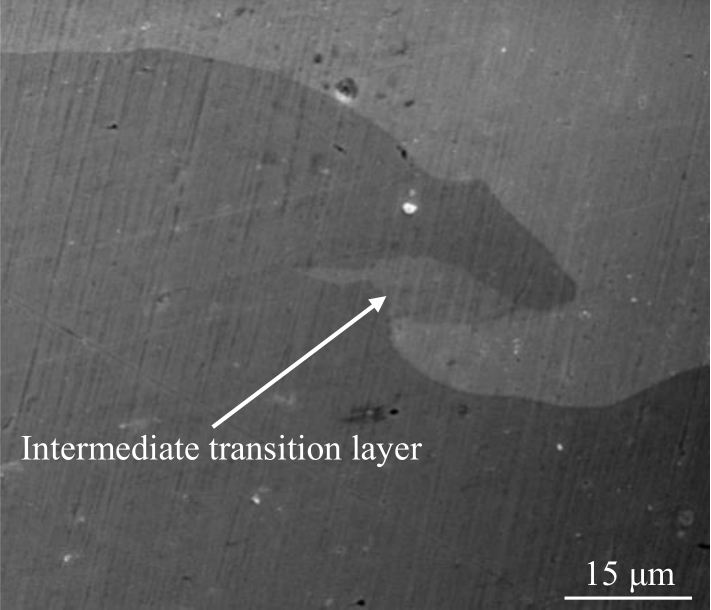

2022, 51(10):3611-3618.
DOI: 10.12442/j.issn.1002-185X.20210854
Abstract:

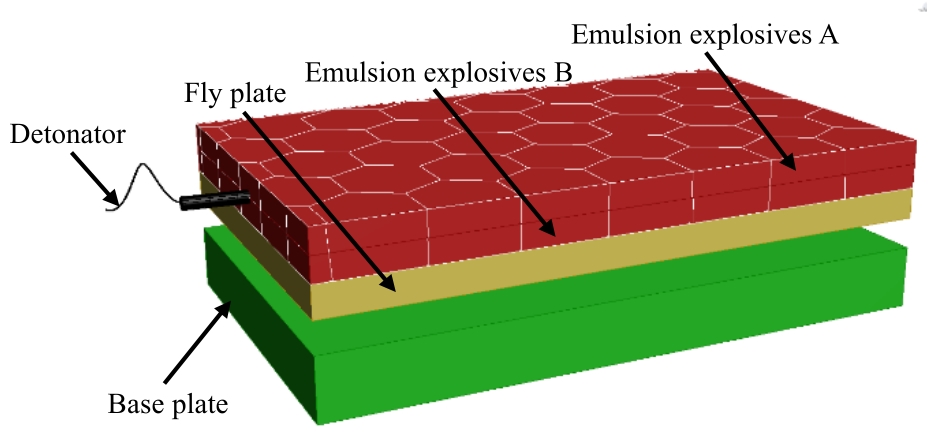

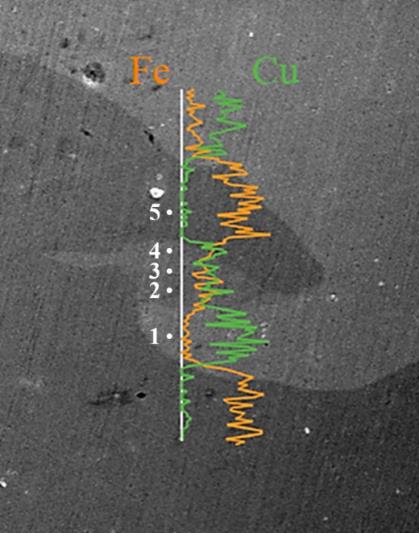

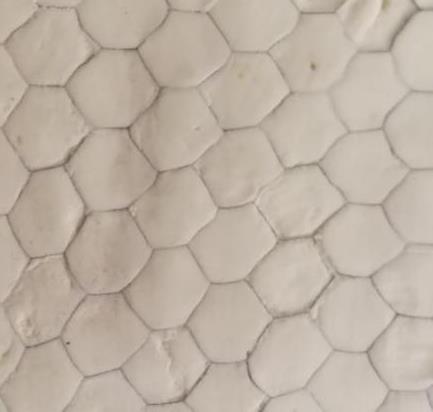

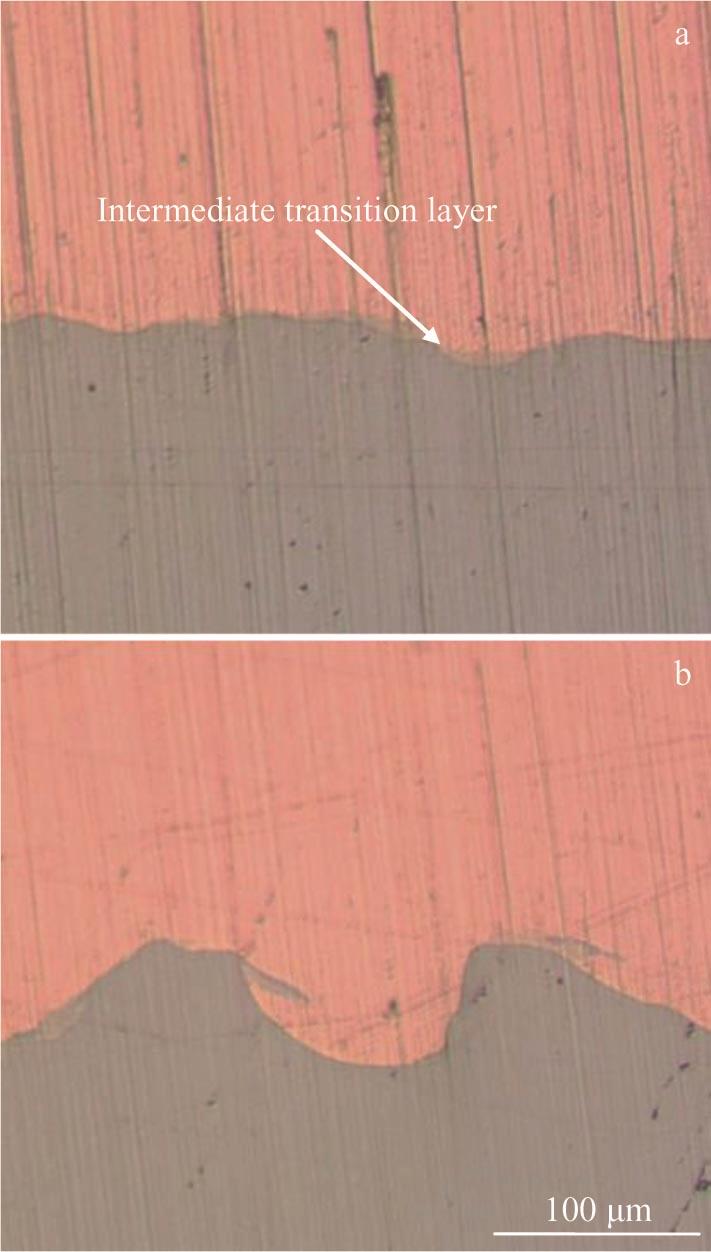

In order to improve the utilization rate of explosive energy and reduce the amount of welding charge, self-constrained structure explosive was proposed to carry out explosive welding. A T2 copper plate and a Q345 steel plate were used as base layer and flyer layer, respectively, and T2/Q345 explosive welding window was obtained through theoretical calculation. An experimental study on explosive welding of T2 copper and Q345 steel was carried out with double-layer honeycomb structure explosive as self-constrained welding energy. The bonding properties of the clad plate were studied by mechanical property testing and microstructure observation. The results show that compared with single-layer explosive with detonation velocity of 2505 and 3512 m·s-1, the charge of double-layer honeycomb structure explosive used in T2/Q345 explosive welding can be saved by 54.4% and 31.4%, respectively. The bonding interface of the clad plate transforms from straight to wavy as the propagation distance increases. The tensile shear strength of the clad plate is 237.0 MPa, meeting the requirements of bonding strength of T2/Q345 clad plate. Explosion hardening occurs near the bonding interface. The T2/Q345 clad plate obtained by explosive welding with double-layer honeycomb structure explosive has good bonding property.
In order to improve the utilization rate of explosive energy and reduce the amount of welding charge, self-constrained structure explosive was proposed to carry out explosive welding. A T2 copper plate and a Q345 steel plate were used as base layer and flyer layer, respectively, and T2/Q345 explosive welding window was obtained through theoretical calculation. An experimental study on explosive welding of T2 copper and Q345 steel was carried out with double-layer honeycomb structure explosive as self-constrained welding energy. The bonding properties of the clad plate were studied by mechanical property testing and microstructure observation. The results show that compared with single-layer explosive with detonation velocity of 2505 and 3512 m·s-1, the charge of double-layer honeycomb structure explosive used in T2/Q345 explosive welding can be saved by 54.4% and 31.4%, respectively. The bonding interface of the clad plate transforms from straight to wavy as the propagation distance increases. The tensile shear strength of the clad plate is 237.0 MPa, meeting the requirements of bonding strength of T2/Q345 clad plate. Explosion hardening occurs near the bonding interface. The T2/Q345 clad plate obtained by explosive welding with double-layer honeycomb structure explosive has good bonding property.

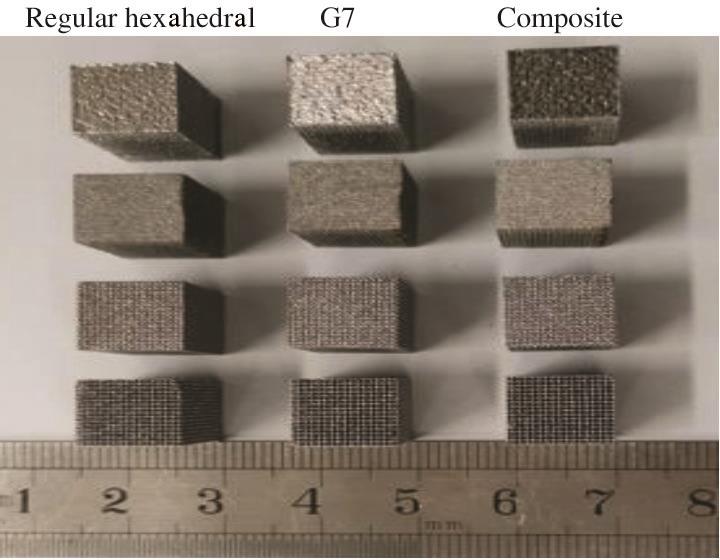

2022, 51(10):3619-3625.
DOI: 10.12442/j.issn.1002-185X.20210830
Abstract:

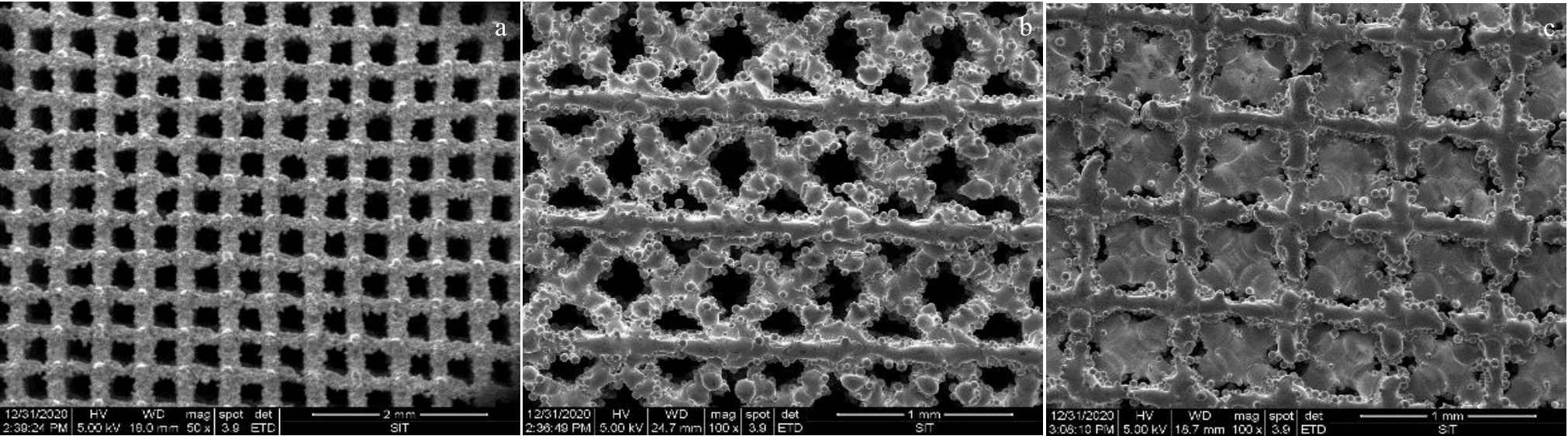

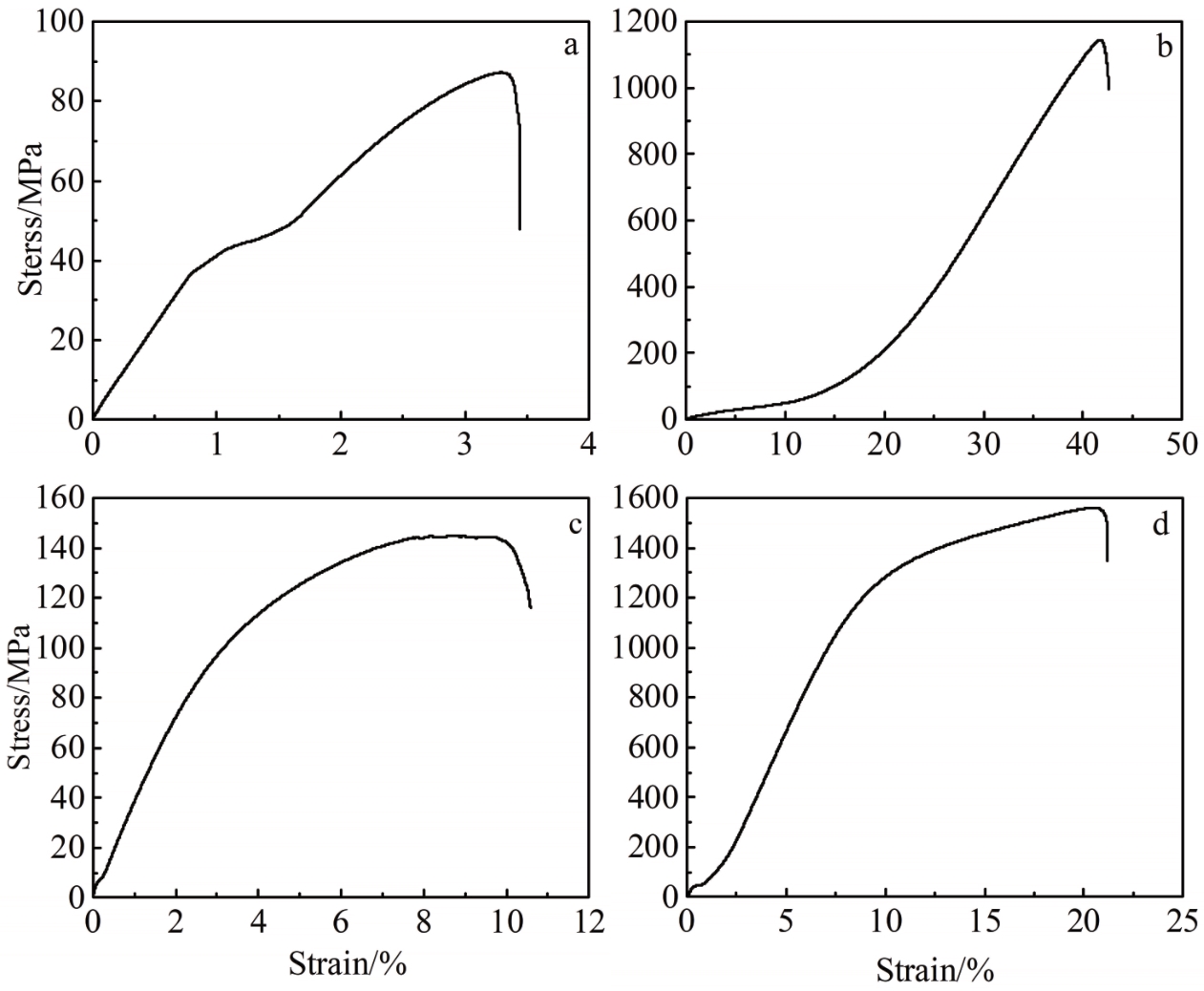

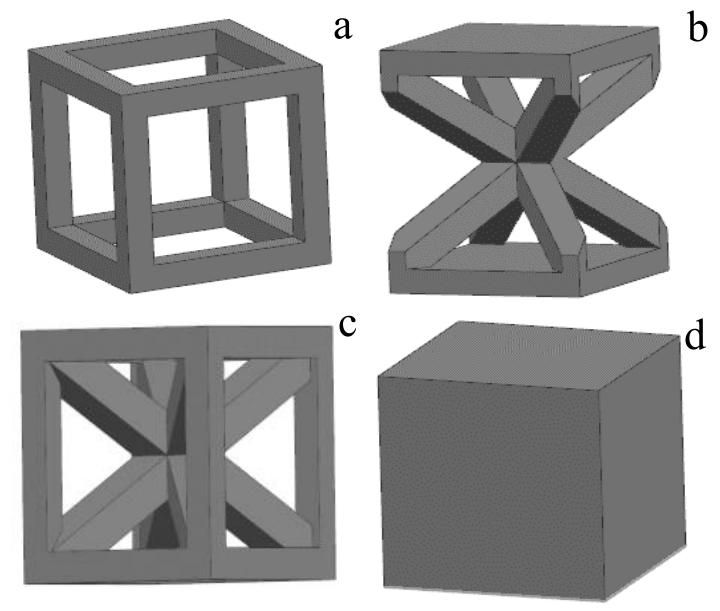

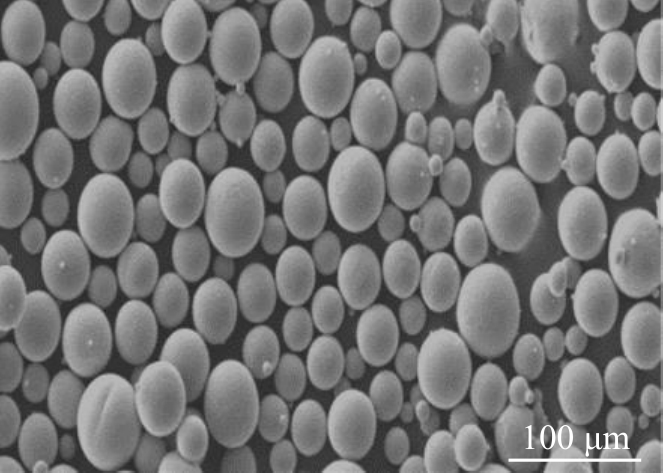

The optimized manufacturing route of selective laser melting (SLM) for Ti6Al4V alloy was simulated by Simufact Additive software through orthogonal experiment. The results show that laser power 200 W, scanning speed 1200 mm/s, spot diameter 0.1 mm and powder thickness 0.03 mm are the optimal processing parameters. Samples with different pore structures were fabricated by SLM according to the optimized parameters, and scanning electron microscopy images show that the porous structures processed by this process have better fidelity. The compressive strength and elastic modulus of solid and different pore structures were compared and analyzed through compression experiments. It is concluded that the composite structure as the structural model of the implant can better meet the requirement for mechanical properties of the implant.
The optimized manufacturing route of selective laser melting (SLM) for Ti6Al4V alloy was simulated by Simufact Additive software through orthogonal experiment. The results show that laser power 200 W, scanning speed 1200 mm/s, spot diameter 0.1 mm and powder thickness 0.03 mm are the optimal processing parameters. Samples with different pore structures were fabricated by SLM according to the optimized parameters, and scanning electron microscopy images show that the porous structures processed by this process have better fidelity. The compressive strength and elastic modulus of solid and different pore structures were compared and analyzed through compression experiments. It is concluded that the composite structure as the structural model of the implant can better meet the requirement for mechanical properties of the implant.
Wan Diqing
,
Han Guoliang
,
Wang Houbin
,
Hu Jiajun
,
Xue Yandan
,
Dong Shaoyun
,
Wang Yu
,
Tang Hao
,
Yang Fan
2022, 51(10):3626-3631.
DOI: 10.12442/j.issn.1002-185X.20210828
Abstract:

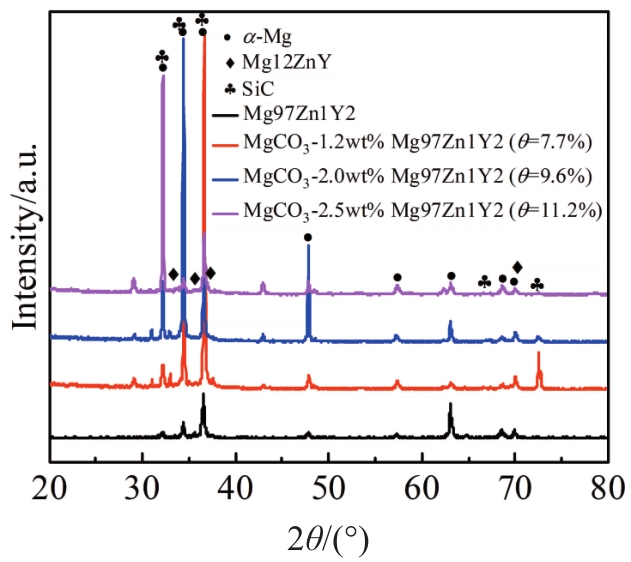

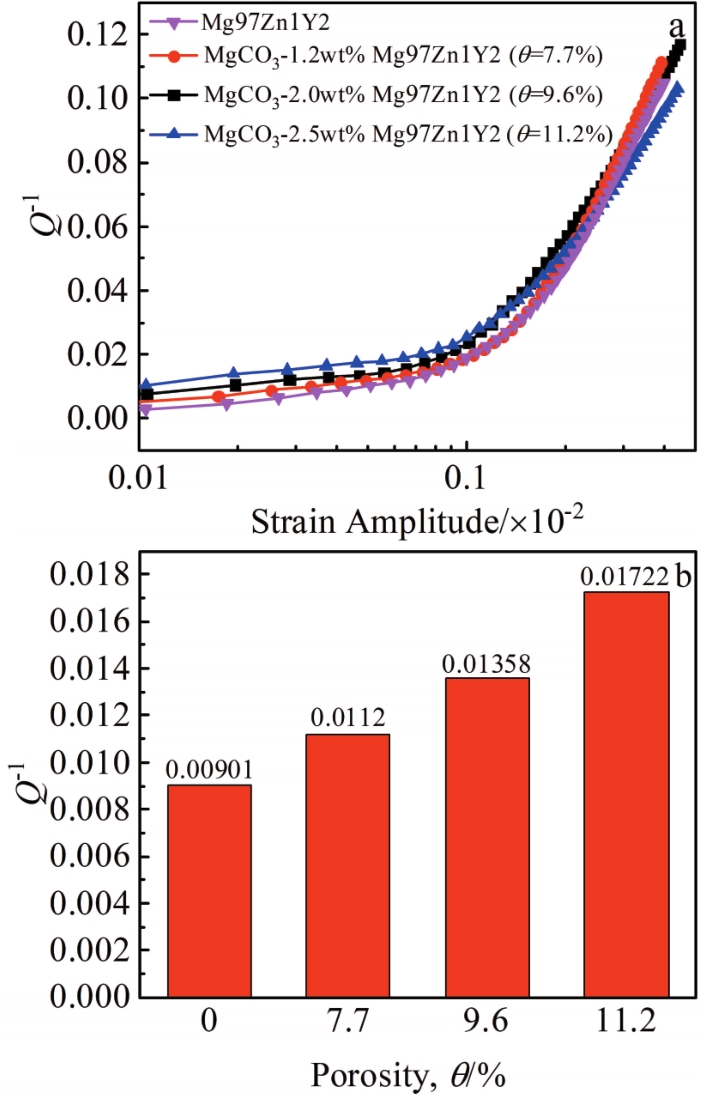

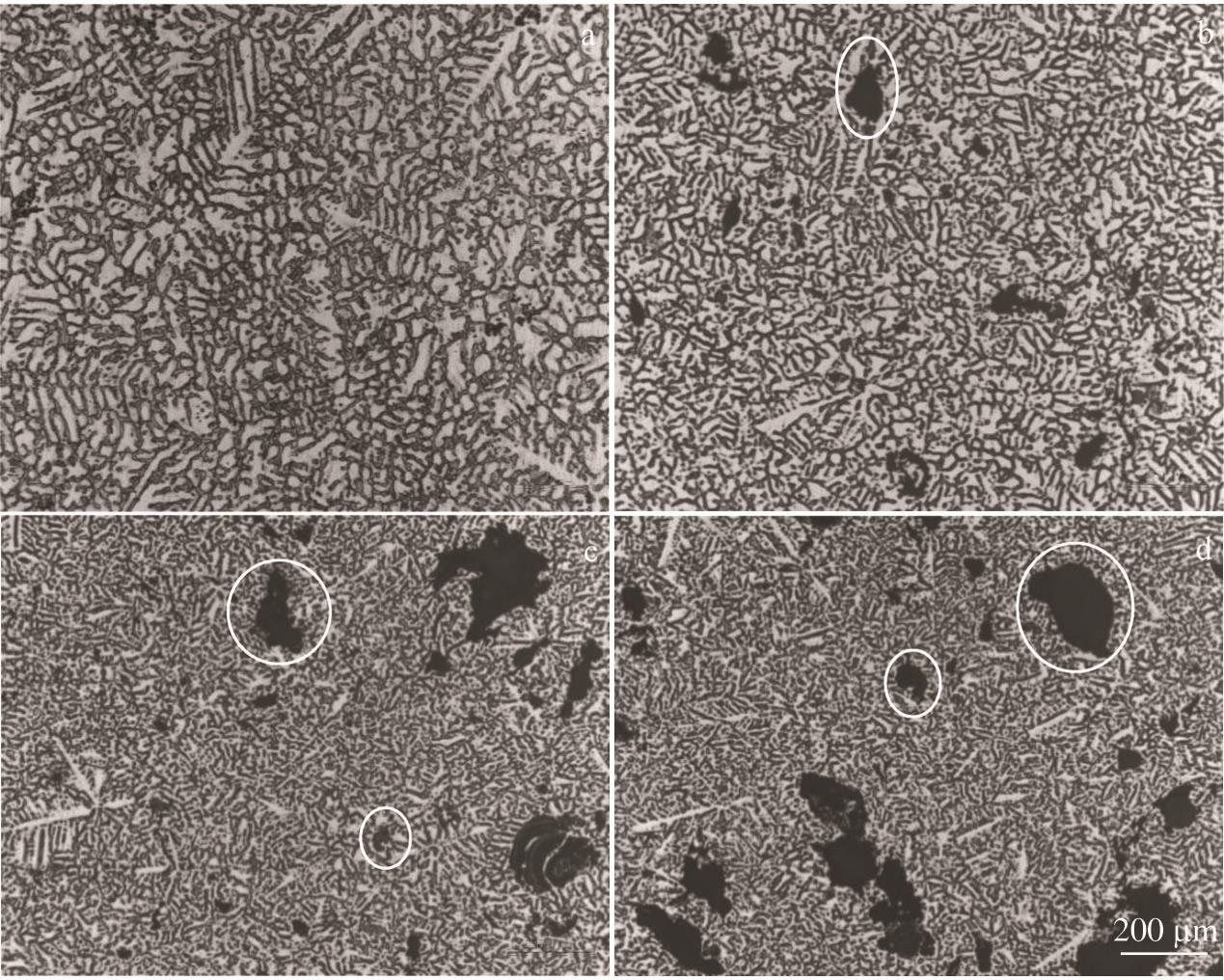

Porous material is a new type of lightweight structure-functional material with high damping performance, low density, light weight, and other characteristics, making it useful in many applications. Mg97Zn1Y2 with long-period stacking ordered phase (LPSO phase) as a matrix, MgCO3 as foaming agent and SiC as tackifier was used to prepare magnesium-based porous materials by melt-foaming method. The mechanical properties and damping properties of the porous Mg97Zn1Y2 were studied by OM, SEM, XRD and DMA technology. Results show that the porous Mg97Zn1Y2 composites are mainly composed of magnesium matrix (α-Mg), LPSO phase and SiC phase. When the strain amplitude is small, the damping value of porous Mg97Zn1Y2 composites is obviously better than that of Mg97Zn1Y2 alloy, and the damping properties are improved as porosity is increased. However, increased porosity decreases the compression properties of porous Mg97Zn1Y2 composites. In addition to the dislocation damping, interface damping, and grain boundary damping of the Mg97Zn1Y2 alloy, “gas phase” damping is found to affect the damping properties of the porous Mg97Zn1Y2 composites jointly.
Porous material is a new type of lightweight structure-functional material with high damping performance, low density, light weight, and other characteristics, making it useful in many applications. Mg97Zn1Y2 with long-period stacking ordered phase (LPSO phase) as a matrix, MgCO3 as foaming agent and SiC as tackifier was used to prepare magnesium-based porous materials by melt-foaming method. The mechanical properties and damping properties of the porous Mg97Zn1Y2 were studied by OM, SEM, XRD and DMA technology. Results show that the porous Mg97Zn1Y2 composites are mainly composed of magnesium matrix (α-Mg), LPSO phase and SiC phase. When the strain amplitude is small, the damping value of porous Mg97Zn1Y2 composites is obviously better than that of Mg97Zn1Y2 alloy, and the damping properties are improved as porosity is increased. However, increased porosity decreases the compression properties of porous Mg97Zn1Y2 composites. In addition to the dislocation damping, interface damping, and grain boundary damping of the Mg97Zn1Y2 alloy, “gas phase” damping is found to affect the damping properties of the porous Mg97Zn1Y2 composites jointly.

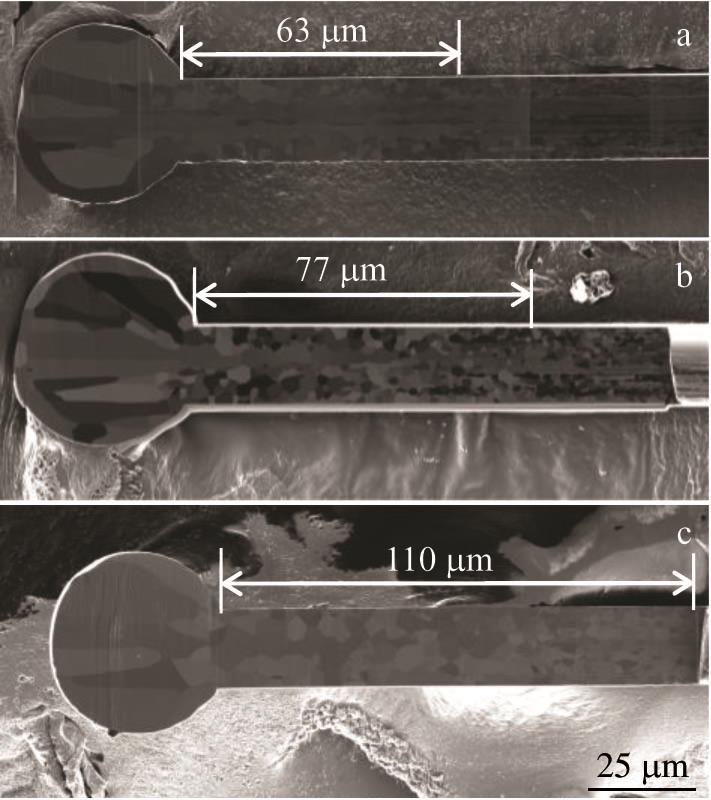

17 Effect of Mechanical Characteristics of Gold Wire on Microstructure and Properties of Ball Bonding
Kang Feifei
,
Zhou Wenyan
,
Jianshu Yu
,
Ji Xingqiao
,
Wang Jia
,
Chen Xubo
,
Luo Jianqiang
,
Liang Chen
,
Wu Yongjin
,
Pei Hongying
2022, 51(10):3632-3637.
DOI: 10.12442/j.issn.1002-185X.20210875
Abstract:

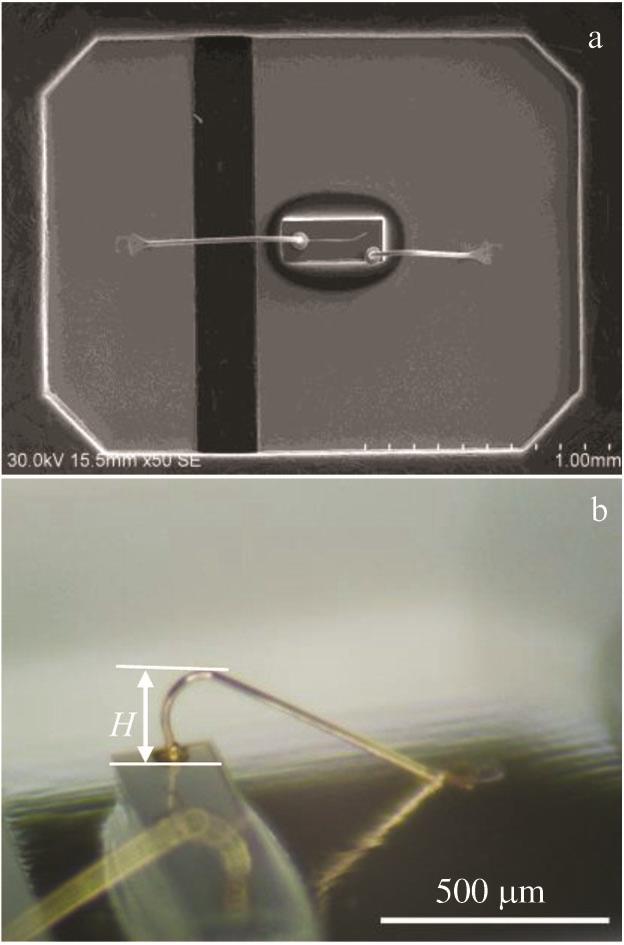

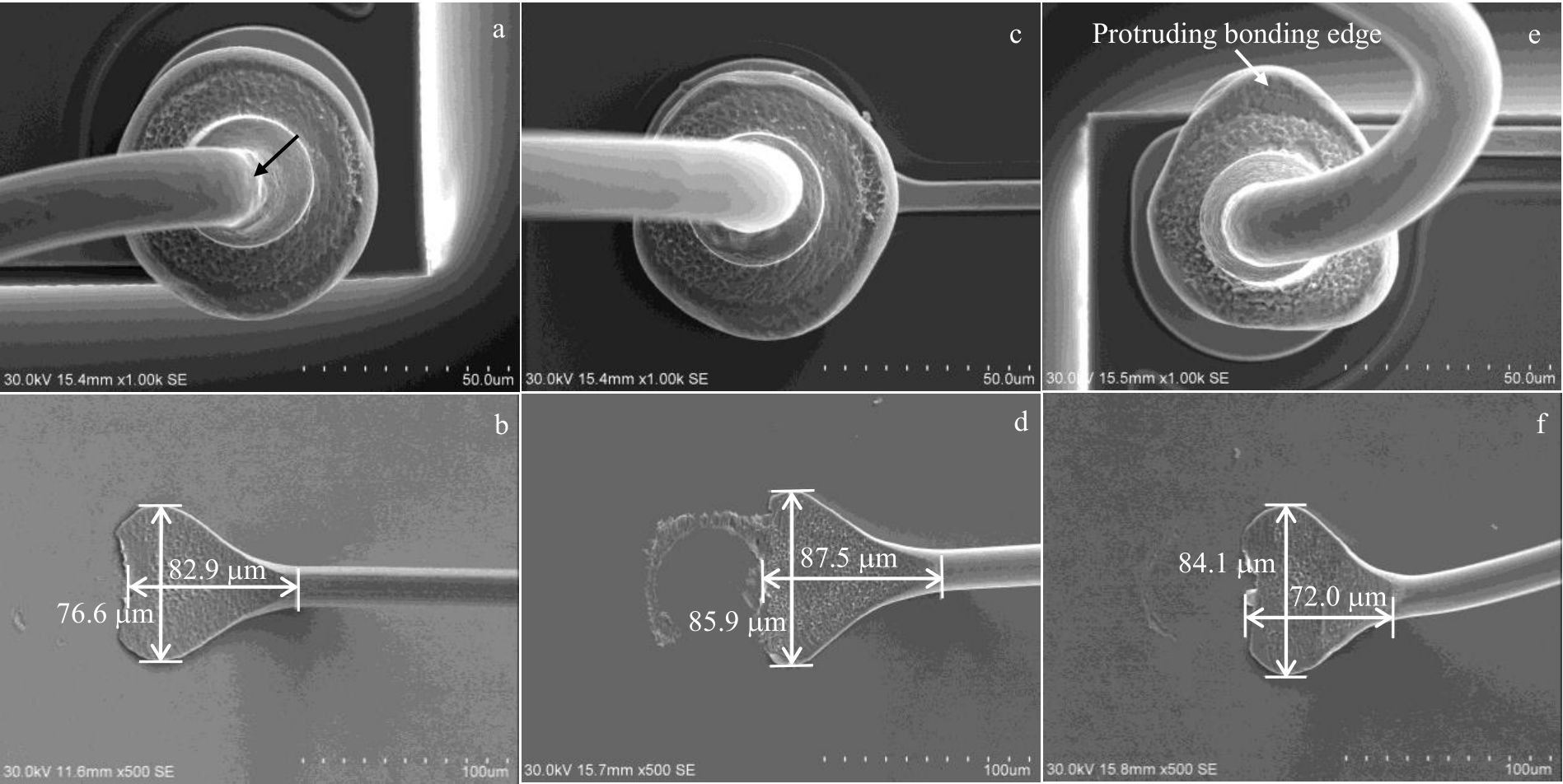

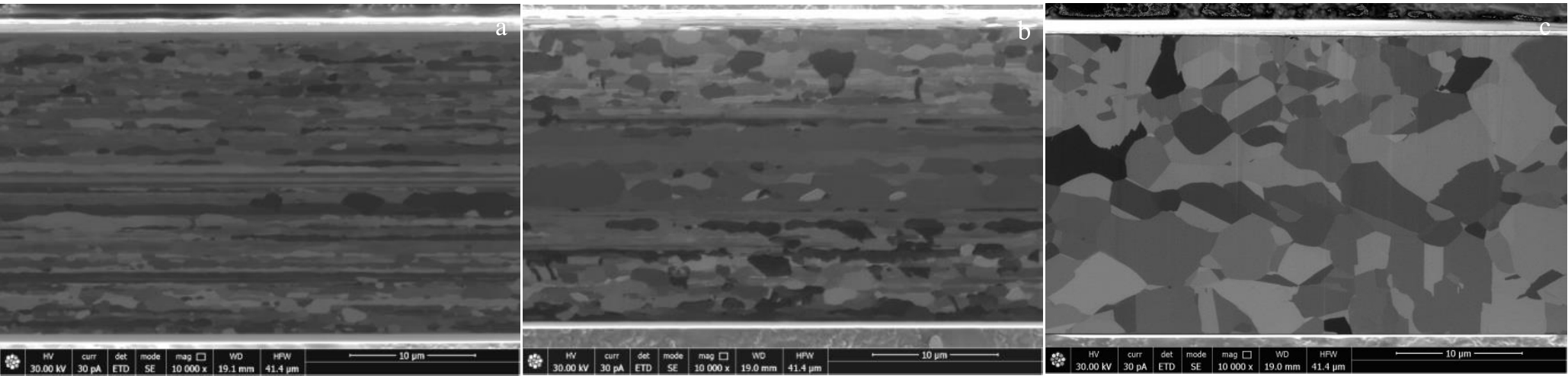

Microstructure of gold wires with different mechanical characteristics was characterized by electron backscattering diffractometer. The loop profile, the heat affected zone and bonding point morphology were observed by scanning electron microscopy and optical microscopy, and the pulling force and ball shear force were measured by push-pull tester. Finally, the influence of mechanical characteristics of gold wires on the ball bonding quality was analyzed. The results show that there is obvious difference in microstructure along the radial direction. The core of the gold wire in semi-hard state 1 and 2 retains fibrous structure, and the edge grains are fine equiaxed grains. The length of the heat affected zone (HAZ) formed after forming the ball is short, the structure of the ball neck has obvious step, and the loop height after bonding is small compared with the soft state. The soft gold wire shows coarser equiaxed crystal, lower pulling force, and is prone to ball slip. The gold wire in semi-hard 2 state has strong bonding force to the pad, high pulling force and excellent overall bonding quality, which is the most suitable for the ball bonding process.
Microstructure of gold wires with different mechanical characteristics was characterized by electron backscattering diffractometer. The loop profile, the heat affected zone and bonding point morphology were observed by scanning electron microscopy and optical microscopy, and the pulling force and ball shear force were measured by push-pull tester. Finally, the influence of mechanical characteristics of gold wires on the ball bonding quality was analyzed. The results show that there is obvious difference in microstructure along the radial direction. The core of the gold wire in semi-hard state 1 and 2 retains fibrous structure, and the edge grains are fine equiaxed grains. The length of the heat affected zone (HAZ) formed after forming the ball is short, the structure of the ball neck has obvious step, and the loop height after bonding is small compared with the soft state. The soft gold wire shows coarser equiaxed crystal, lower pulling force, and is prone to ball slip. The gold wire in semi-hard 2 state has strong bonding force to the pad, high pulling force and excellent overall bonding quality, which is the most suitable for the ball bonding process.
Diao Shulin
,
Luo Yang
,
Peng Haijun
,
Lin Xiao
,
Dong Yi
,
Yi Haibo
,
Wu Shujie
,
Zhang Shuai
,
Yu Dunbo

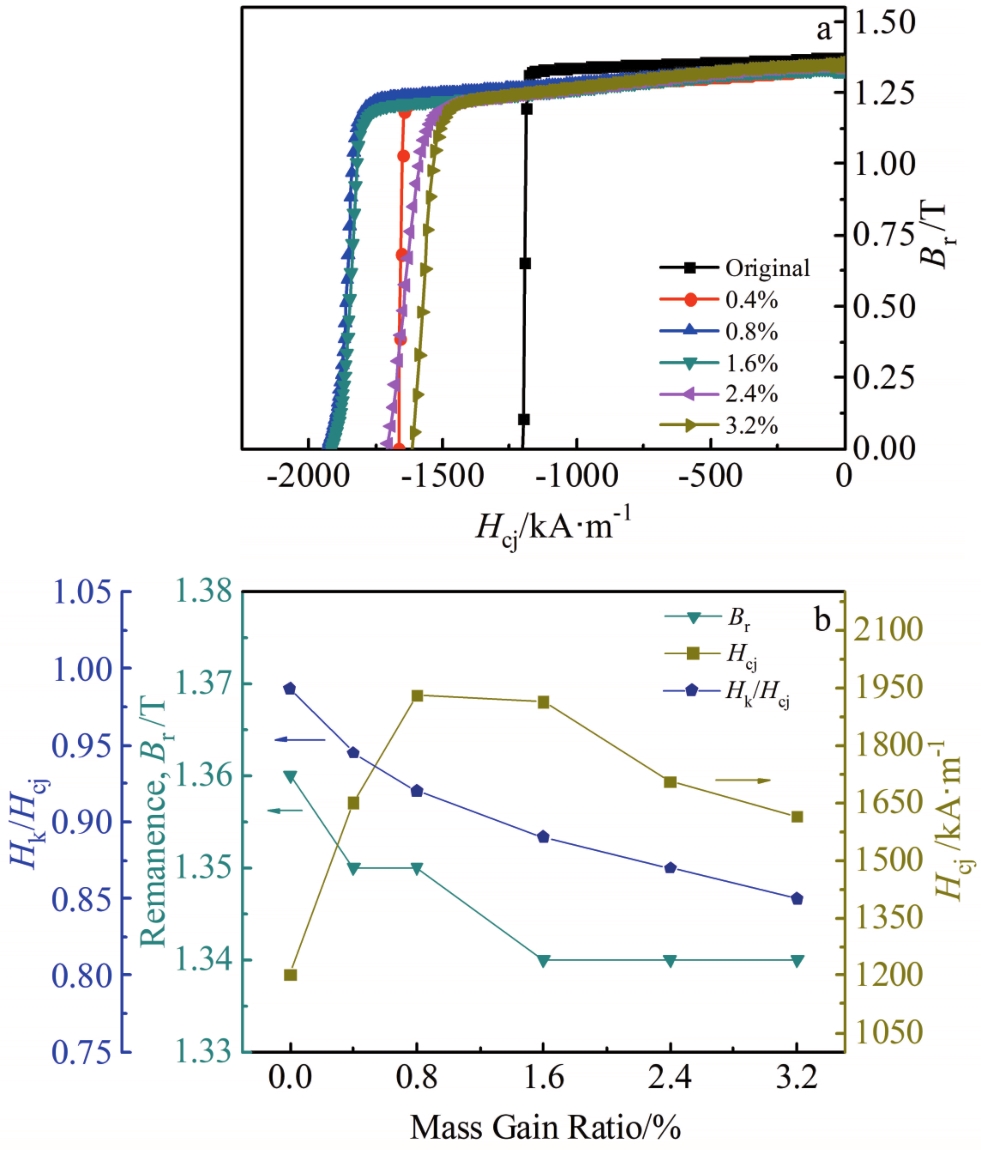

2022, 51(10):3638-3645.
DOI: 10.12442/j.issn.1002-185X.E20210028
Abstract:

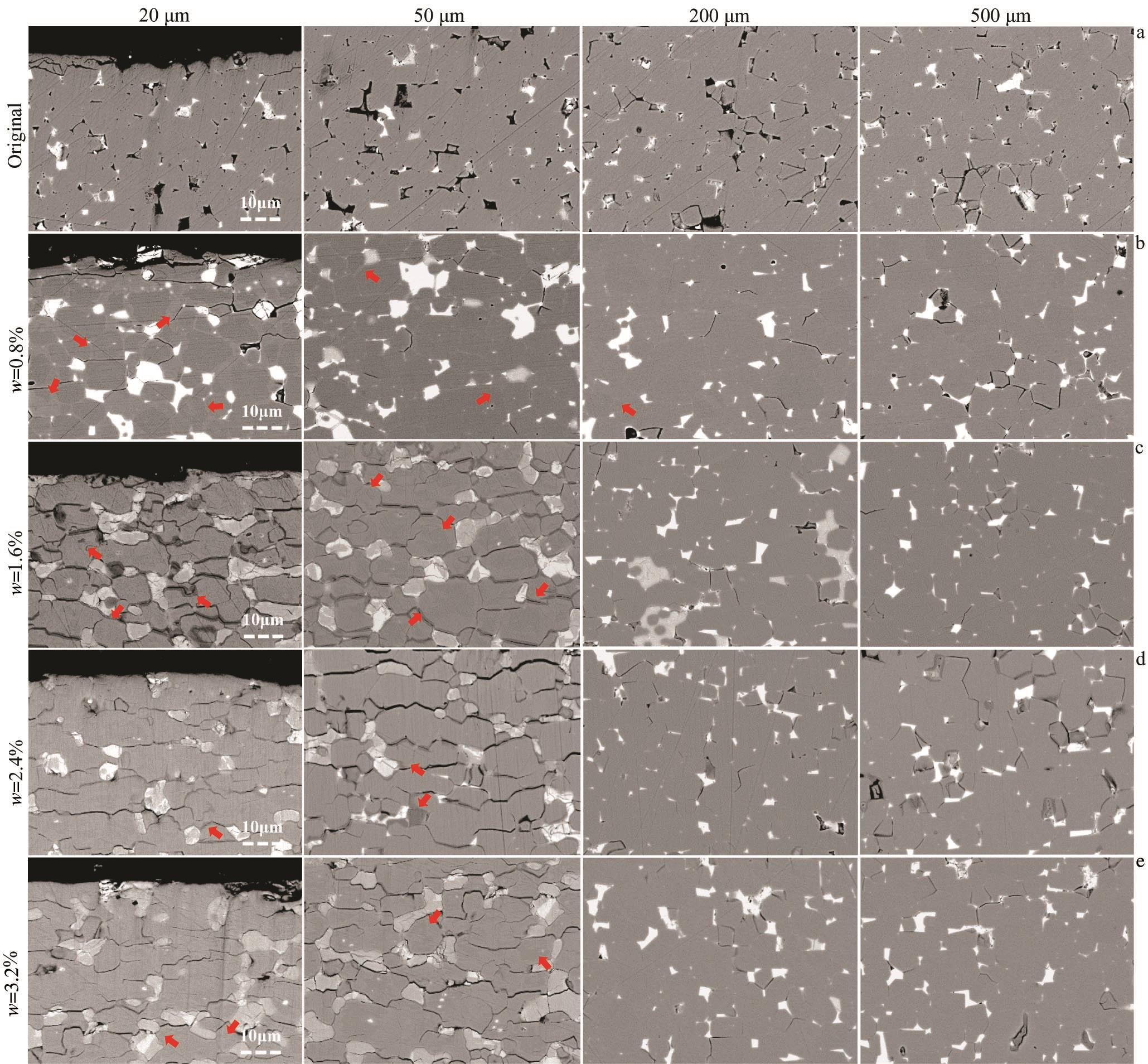

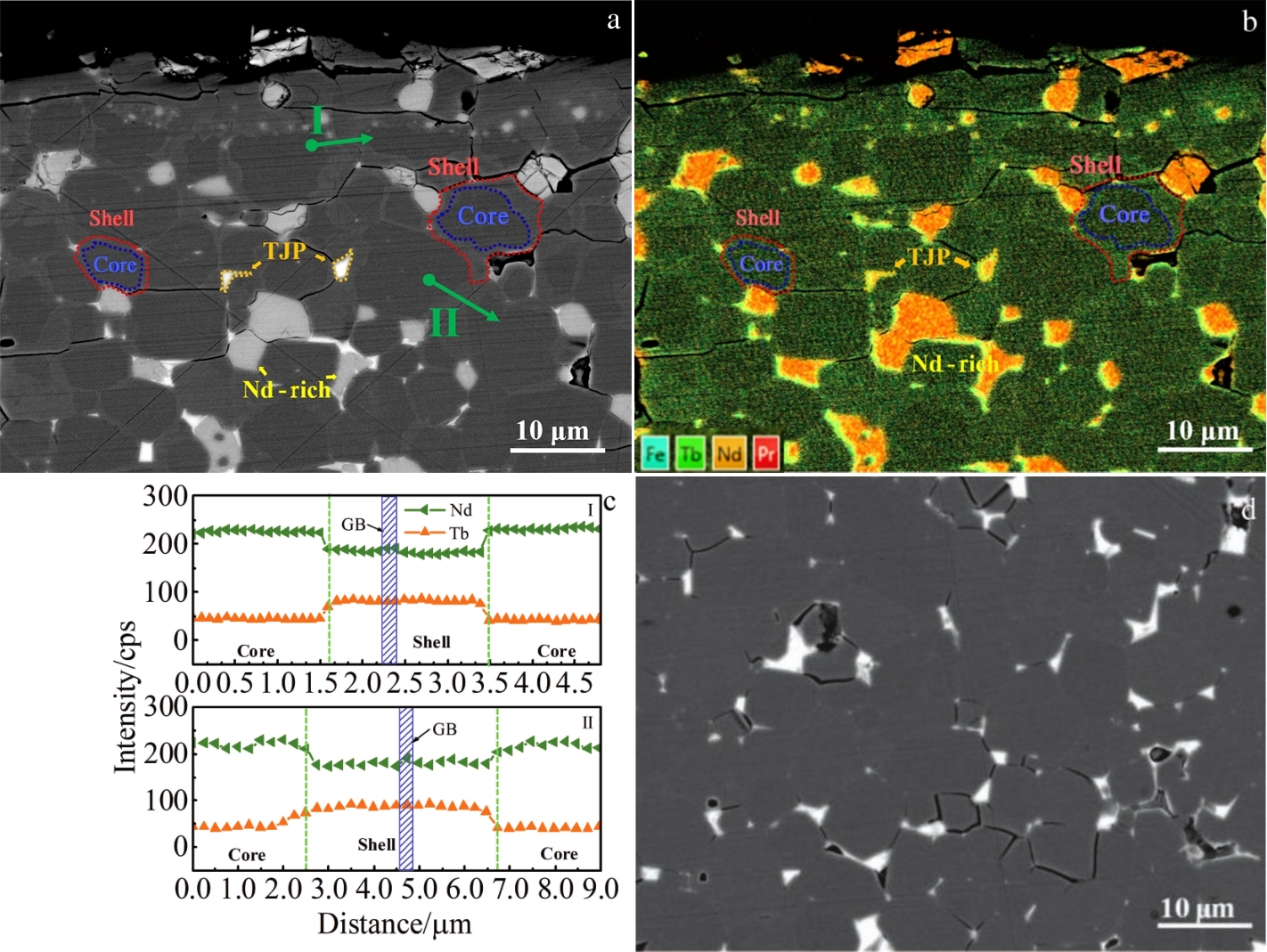

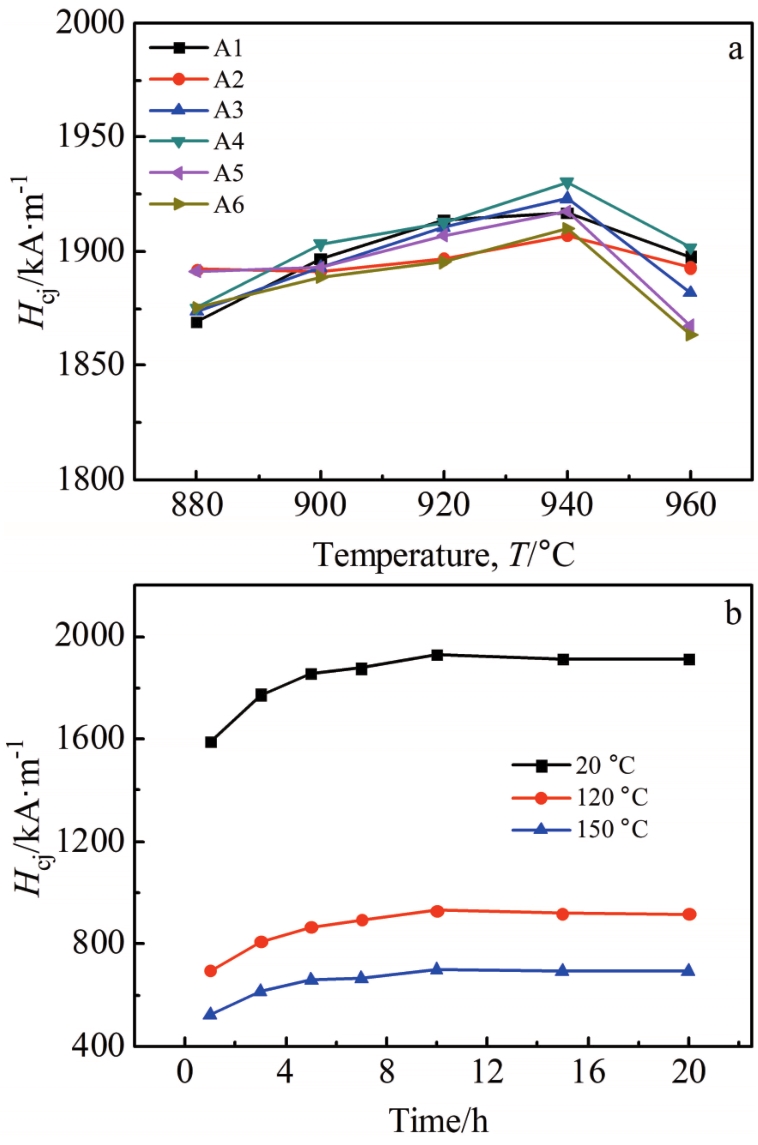

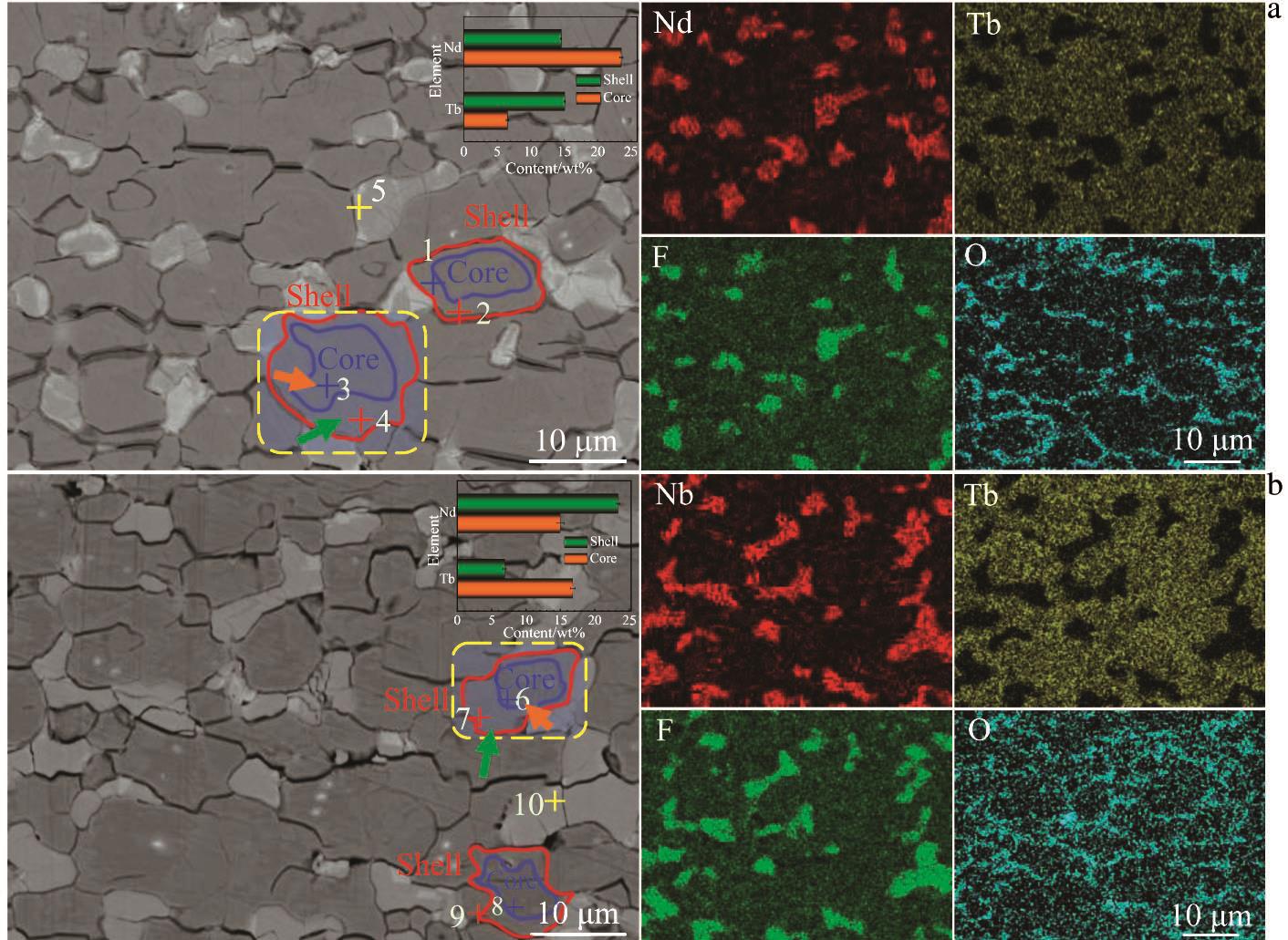

A novel method of spray coating deposition (SCD) was proposed to deposit TbF3 powder solution uniformly onto the surface of Nd-Fe-B magnets, and then the Tb element was introduced into the magnets through the grain boundary diffusion process (GBDP). Nd-Fe-B magnets with thickness up to 5 mm were treated with this method (SCD+GBDP). The effects of mass gain ratio (w) of TbF3 coatings, diffusion time and the diffusion temperature on the microstructure and magnetic properties of the sintered magnets were investigated. The samples were diffused at 940 °C for 10 h and then annealed at 480 °C for 5 h. Results show that when the TbF3 mass gain ratio increases from 0% to 0.8%, the coercivity of the magnets increases from 1201 to 1930 kA/m and the remanence is only decreased by 0.01 T. With increasing the mass gain ratio of TbF3, the coercivity of the magnets increases firstly and then decreases obviously. SEM results show that the (Nd, Tb)2Fe14B core-shell phases can be formed by Tb which replaces the Nd in the boundary region among Nd2Fe14B grains. The improved decoupling effect by the continuous grain boundary phase and the higher magnetocrystalline anisotropy of the core-shell phase plays a positive role in the coercivity enhancement. The distribution and concentration of core-shell phase have a close influence on the coercivity. When the TbF3 mass gain ratio is more than 2.4%, the grain boundary diffusion is obviously enhanced in the region close to the magnet surface. The SEM image of the element shows that the more Tb enters the inside of the grain, the higher the Tb concentration in the core than in the shell. Furthermore, the formation of a large amount of Nd-F/Nd-O-F phase causes the grain boundary phase not being as continuous as that of the sample with w=0.8%, which may be the main reason for the decrease in coercivity.
A novel method of spray coating deposition (SCD) was proposed to deposit TbF3 powder solution uniformly onto the surface of Nd-Fe-B magnets, and then the Tb element was introduced into the magnets through the grain boundary diffusion process (GBDP). Nd-Fe-B magnets with thickness up to 5 mm were treated with this method (SCD+GBDP). The effects of mass gain ratio (w) of TbF3 coatings, diffusion time and the diffusion temperature on the microstructure and magnetic properties of the sintered magnets were investigated. The samples were diffused at 940 °C for 10 h and then annealed at 480 °C for 5 h. Results show that when the TbF3 mass gain ratio increases from 0% to 0.8%, the coercivity of the magnets increases from 1201 to 1930 kA/m and the remanence is only decreased by 0.01 T. With increasing the mass gain ratio of TbF3, the coercivity of the magnets increases firstly and then decreases obviously. SEM results show that the (Nd, Tb)2Fe14B core-shell phases can be formed by Tb which replaces the Nd in the boundary region among Nd2Fe14B grains. The improved decoupling effect by the continuous grain boundary phase and the higher magnetocrystalline anisotropy of the core-shell phase plays a positive role in the coercivity enhancement. The distribution and concentration of core-shell phase have a close influence on the coercivity. When the TbF3 mass gain ratio is more than 2.4%, the grain boundary diffusion is obviously enhanced in the region close to the magnet surface. The SEM image of the element shows that the more Tb enters the inside of the grain, the higher the Tb concentration in the core than in the shell. Furthermore, the formation of a large amount of Nd-F/Nd-O-F phase causes the grain boundary phase not being as continuous as that of the sample with w=0.8%, which may be the main reason for the decrease in coercivity.
2022, 51(10):3646-3654.
DOI: 10.12442/j.issn.1002-185X.20220103
Abstract:

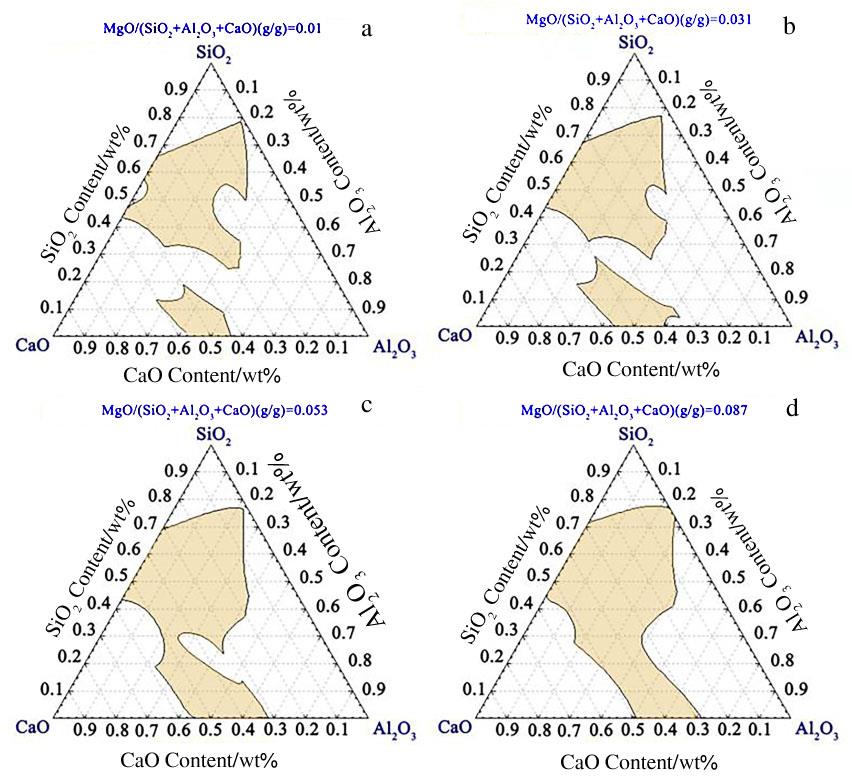

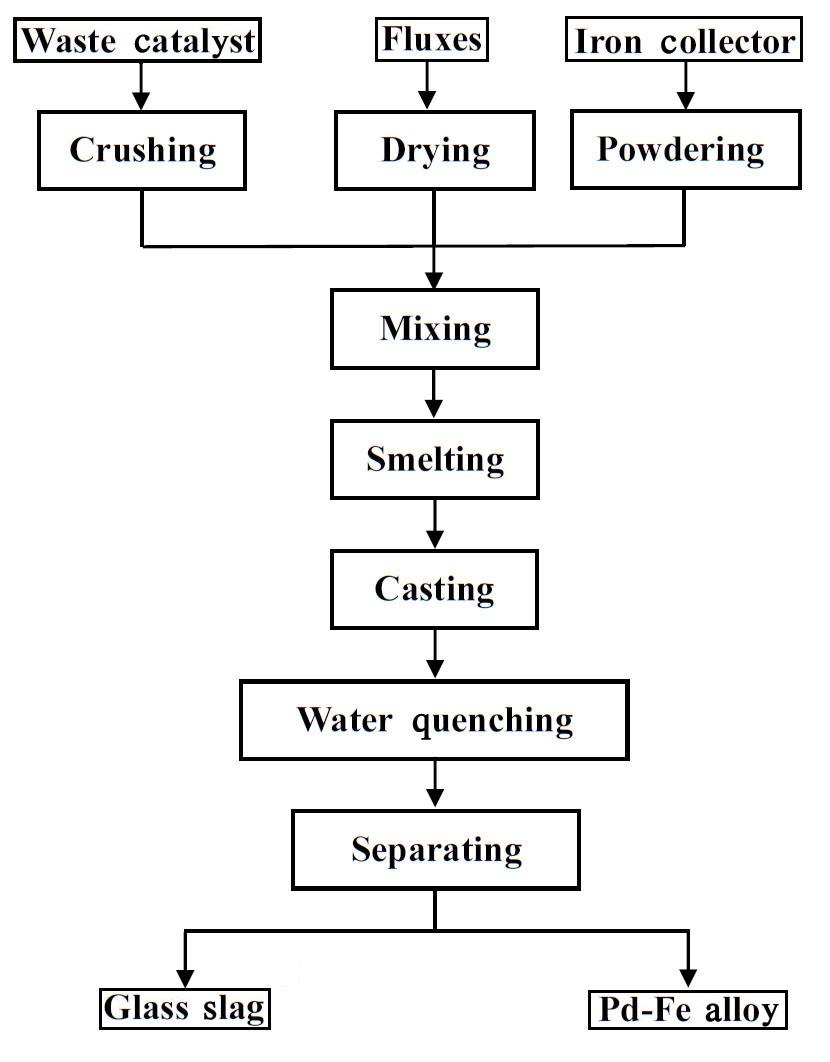

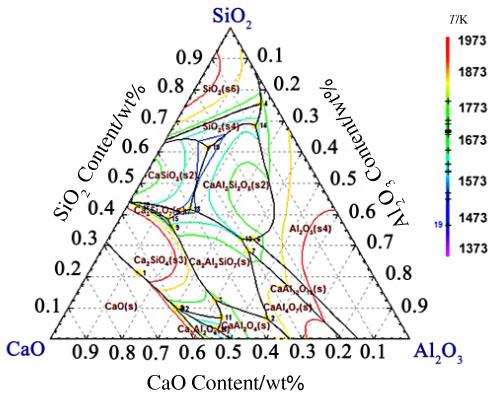

The isothermal phase diagram of SiO2-CaO-Al2O3 slag system was calculated by FactSage6.4. By fixing the agent MgO content at 8wt% and controlling Al2O3 content lower than 35wt%, a reasonable liquidus temperature and mineralogical phase of the glass slag were obtained. The effects of temperature, binary basicity wCaO/wSiO2 and Al2O3 content on viscosity of the feasible SiO2-CaO-Al2O3-MgO slag were investigated by the rotating spindle method and simulating calculation. Results show that with increasing the temperature, the slag viscosity decreases, Al2O3 content increases from 15wt% to 35wt% and binary basicity wCaO/wSiO2 increases from 0.3 to 1.0 according to the univariate investigation. It is known from the smelting experiment using iron as collector that the recovery rate of palladium increases with increasing the mass fraction of waste catalyst in material system, and it increases first and then decreases with continuously increasing the basicity and temperature. With the waste Pd/Al2O3 catalyst used in this study and using the optimized slag ingredients of about 30wt% Al2O3, 8wt% MgO and binary basicity wCaO/wSiO2=0.5, the recovery rate of palladium reaches 99% and the residual palladium in glass tailing is less than 4.50 g/t.
The isothermal phase diagram of SiO2-CaO-Al2O3 slag system was calculated by FactSage6.4. By fixing the agent MgO content at 8wt% and controlling Al2O3 content lower than 35wt%, a reasonable liquidus temperature and mineralogical phase of the glass slag were obtained. The effects of temperature, binary basicity wCaO/wSiO2 and Al2O3 content on viscosity of the feasible SiO2-CaO-Al2O3-MgO slag were investigated by the rotating spindle method and simulating calculation. Results show that with increasing the temperature, the slag viscosity decreases, Al2O3 content increases from 15wt% to 35wt% and binary basicity wCaO/wSiO2 increases from 0.3 to 1.0 according to the univariate investigation. It is known from the smelting experiment using iron as collector that the recovery rate of palladium increases with increasing the mass fraction of waste catalyst in material system, and it increases first and then decreases with continuously increasing the basicity and temperature. With the waste Pd/Al2O3 catalyst used in this study and using the optimized slag ingredients of about 30wt% Al2O3, 8wt% MgO and binary basicity wCaO/wSiO2=0.5, the recovery rate of palladium reaches 99% and the residual palladium in glass tailing is less than 4.50 g/t.

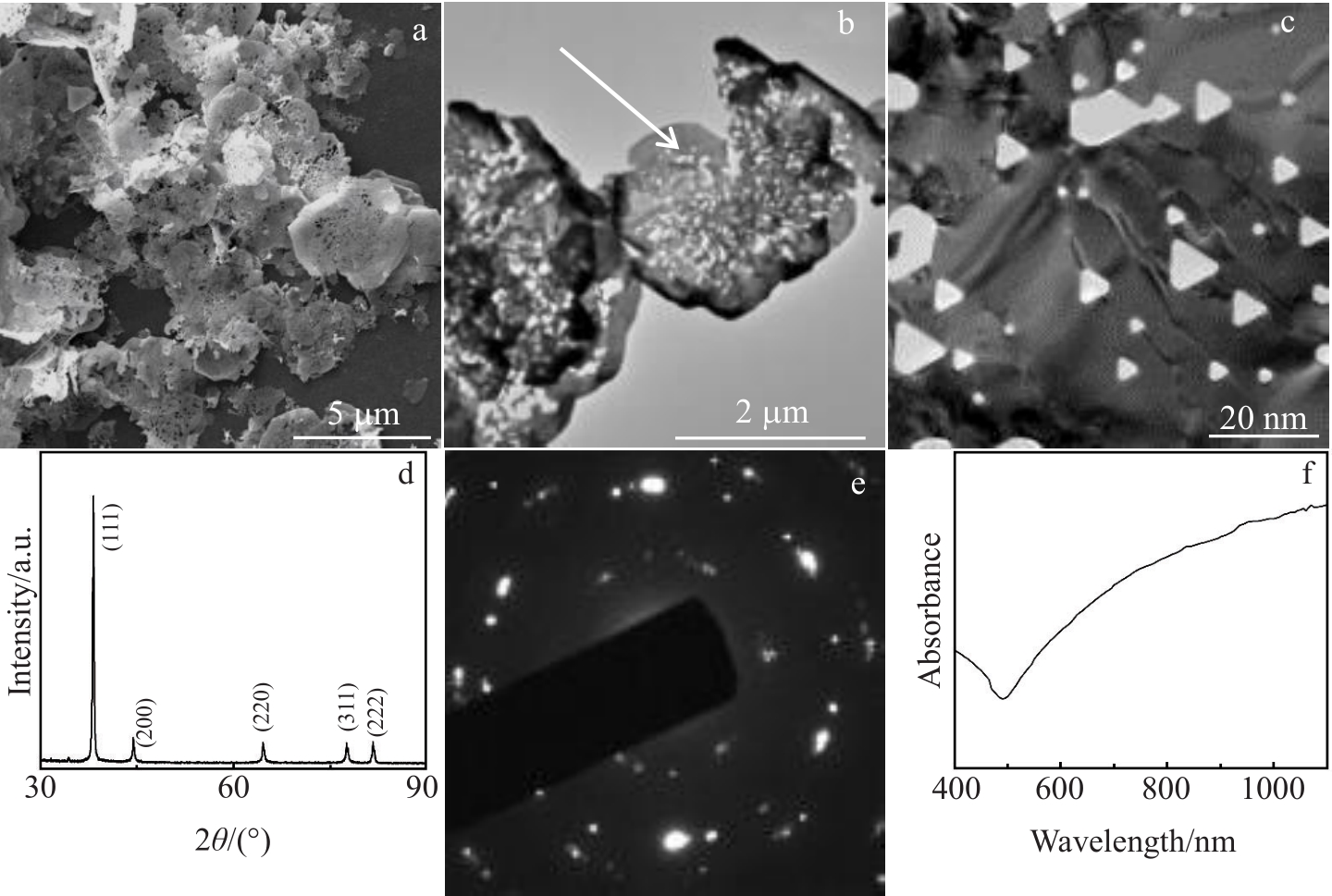

2022, 51(10):3655-3662.
DOI: 10.12442/j.issn.1002-185X.20210813
Abstract:

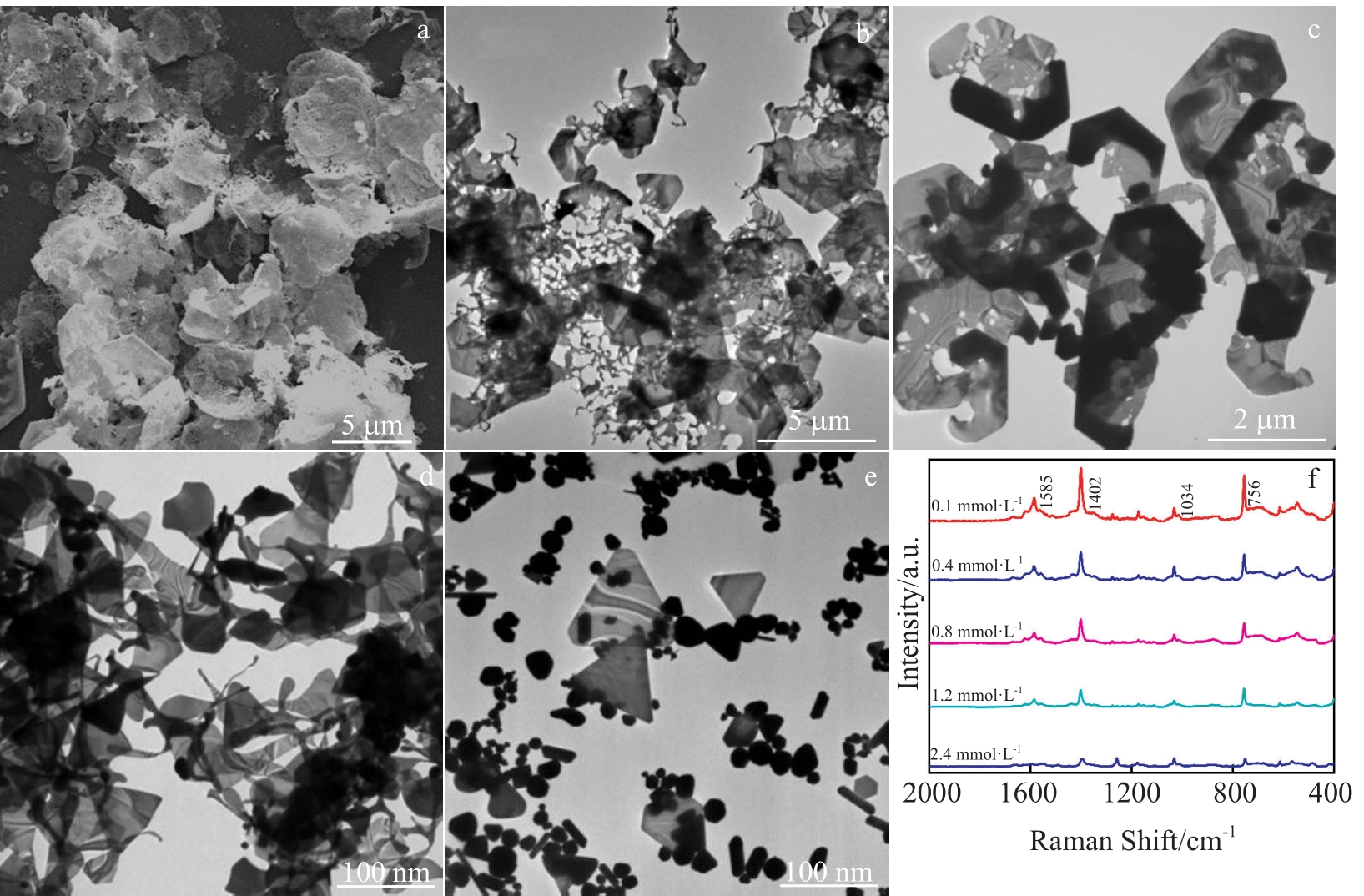

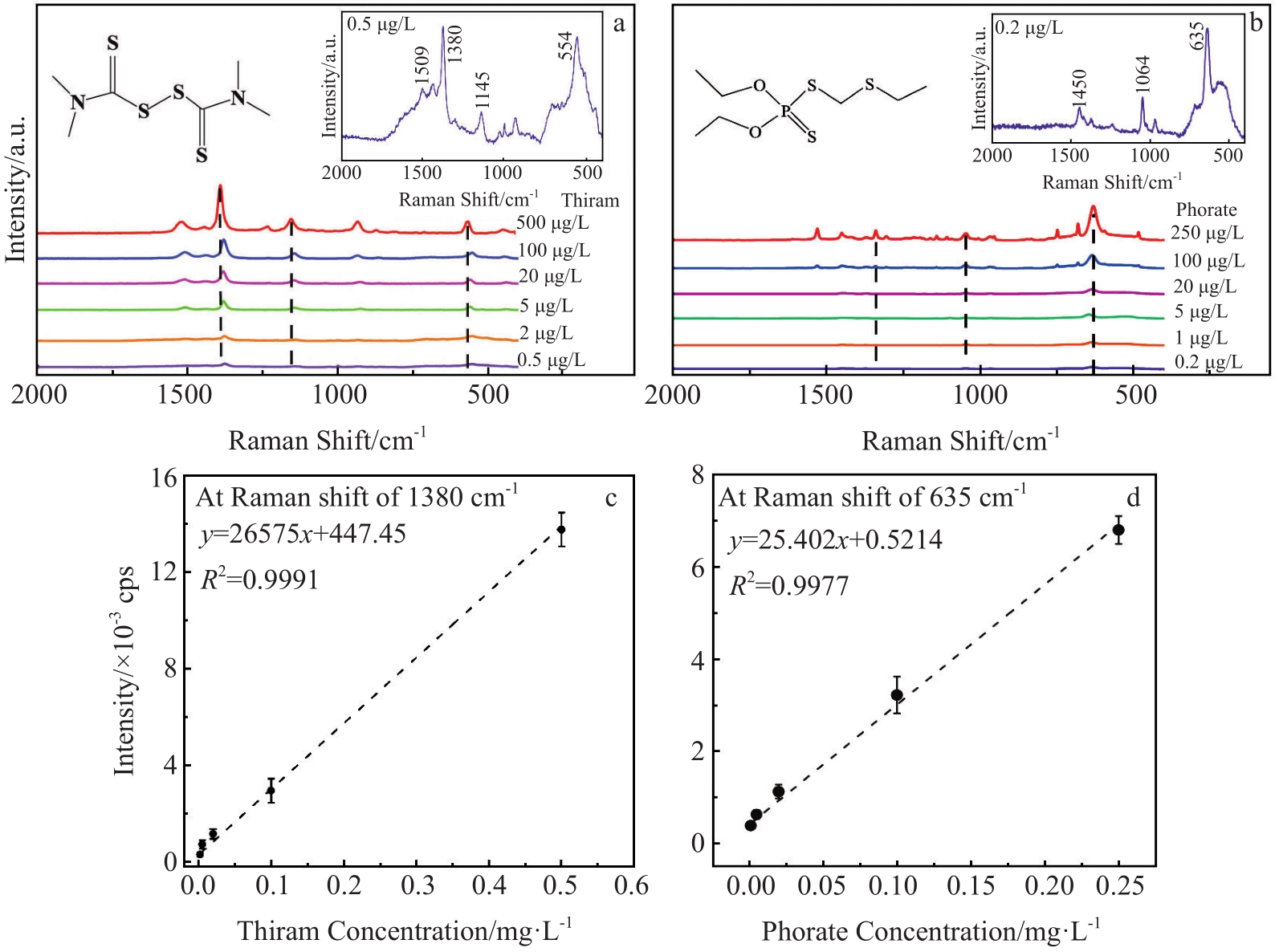

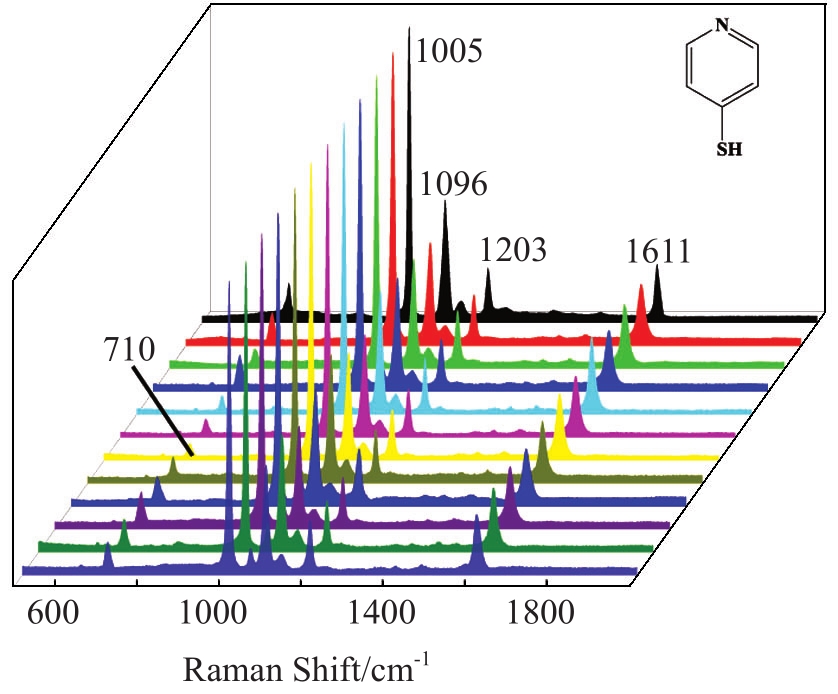

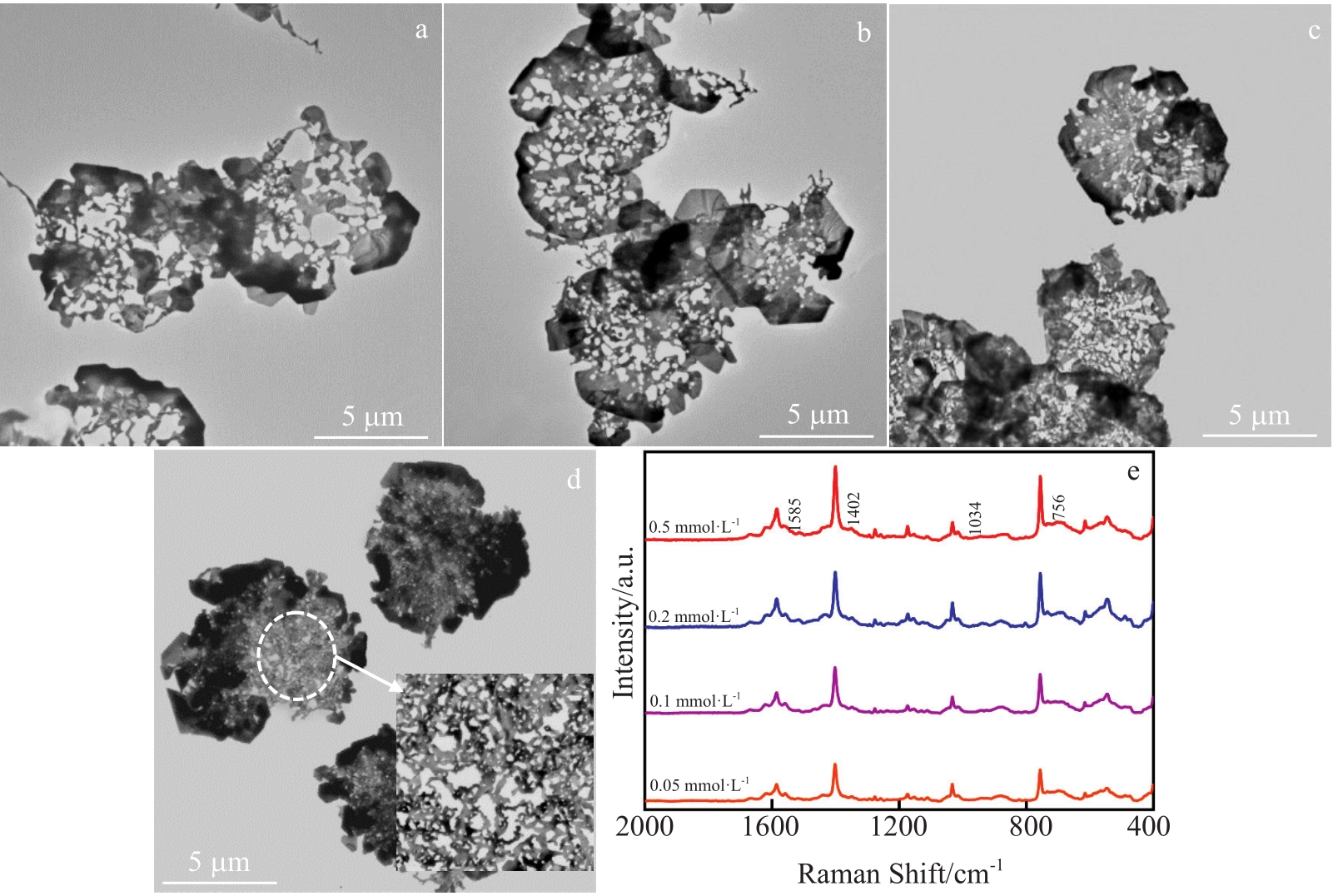

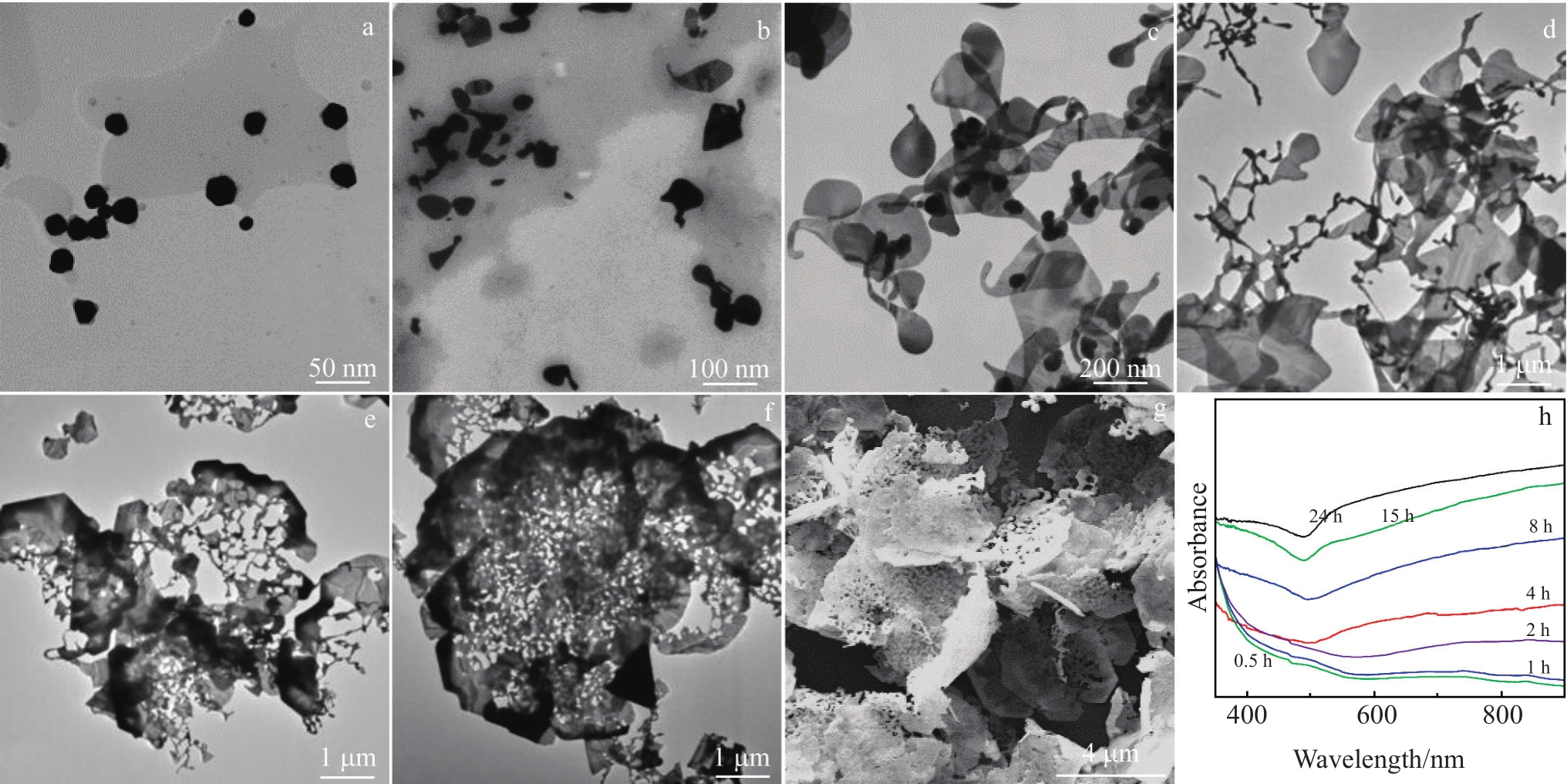

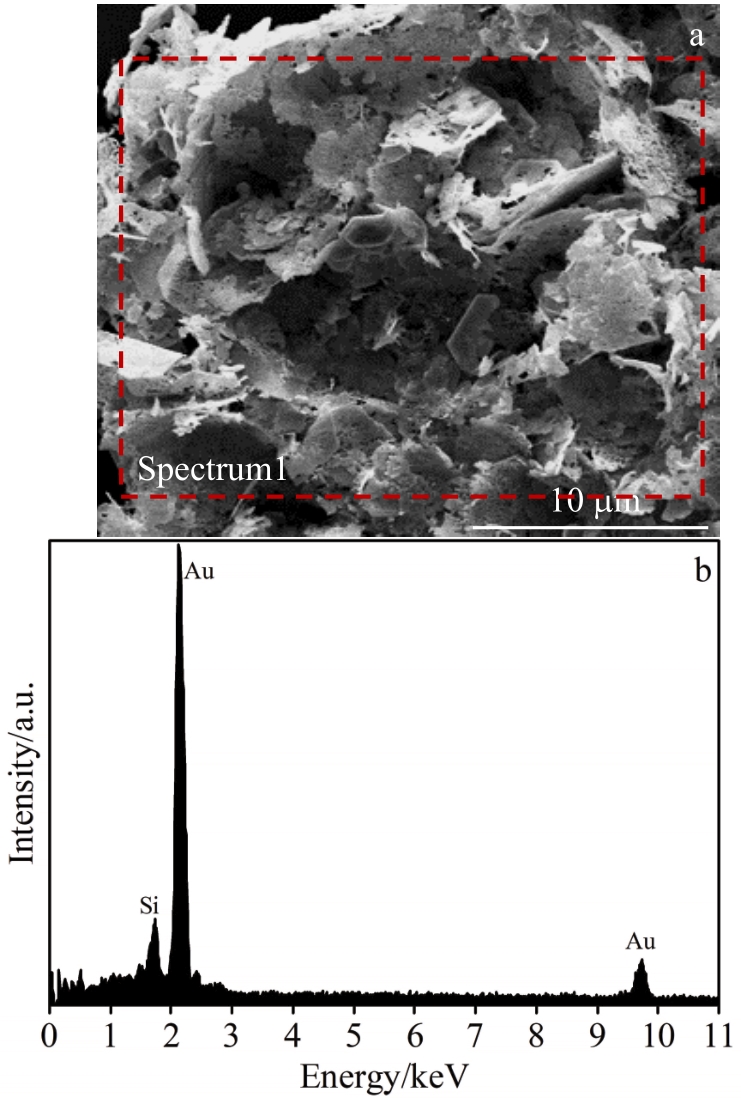

Design and fabrication of various gold micro- and nanostructures is a promising way to amplify surface enhanced Raman scattering (SERS) signals. Gold porous nanoplates were produced by simple heating aqueous solutions of HAuCl4 and polyethylene glycol (PEG). The reaction was carried out in a one-pot, by one-step process at mild temperature, and PEG was used as capping agent and reducing agent in this cost-effective and environmentally benign fabrication strategy. Results show that the gold porous plates are about several micrometers in size and can be modified by experimental parameters such as growth time, PEG concentration, and gold ion concentration. The EDS measurements confirm the metallic nature of the cleaned gold porous nanoplates with no organic contaminants on the surface. The gold porous nanoplate substrate offers an excellent SERS-effect and exhibits a good reproducibility in SERS detection. Importantly, the as prepared gold porous plate substrates can be used for rapid and highly sensitive determination of organic pesticides such as thiram and phorate.
Design and fabrication of various gold micro- and nanostructures is a promising way to amplify surface enhanced Raman scattering (SERS) signals. Gold porous nanoplates were produced by simple heating aqueous solutions of HAuCl4 and polyethylene glycol (PEG). The reaction was carried out in a one-pot, by one-step process at mild temperature, and PEG was used as capping agent and reducing agent in this cost-effective and environmentally benign fabrication strategy. Results show that the gold porous plates are about several micrometers in size and can be modified by experimental parameters such as growth time, PEG concentration, and gold ion concentration. The EDS measurements confirm the metallic nature of the cleaned gold porous nanoplates with no organic contaminants on the surface. The gold porous nanoplate substrate offers an excellent SERS-effect and exhibits a good reproducibility in SERS detection. Importantly, the as prepared gold porous plate substrates can be used for rapid and highly sensitive determination of organic pesticides such as thiram and phorate.

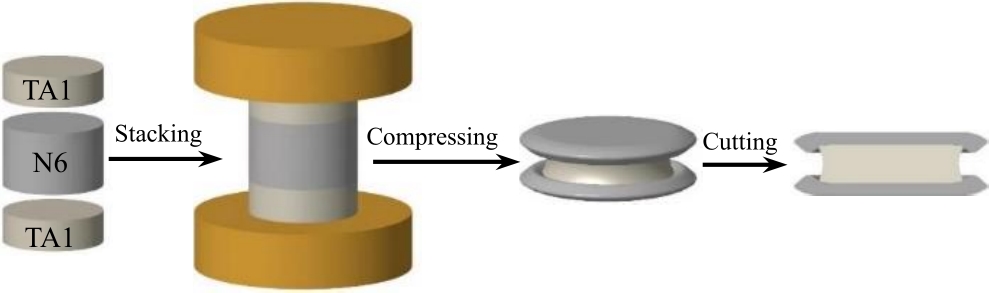

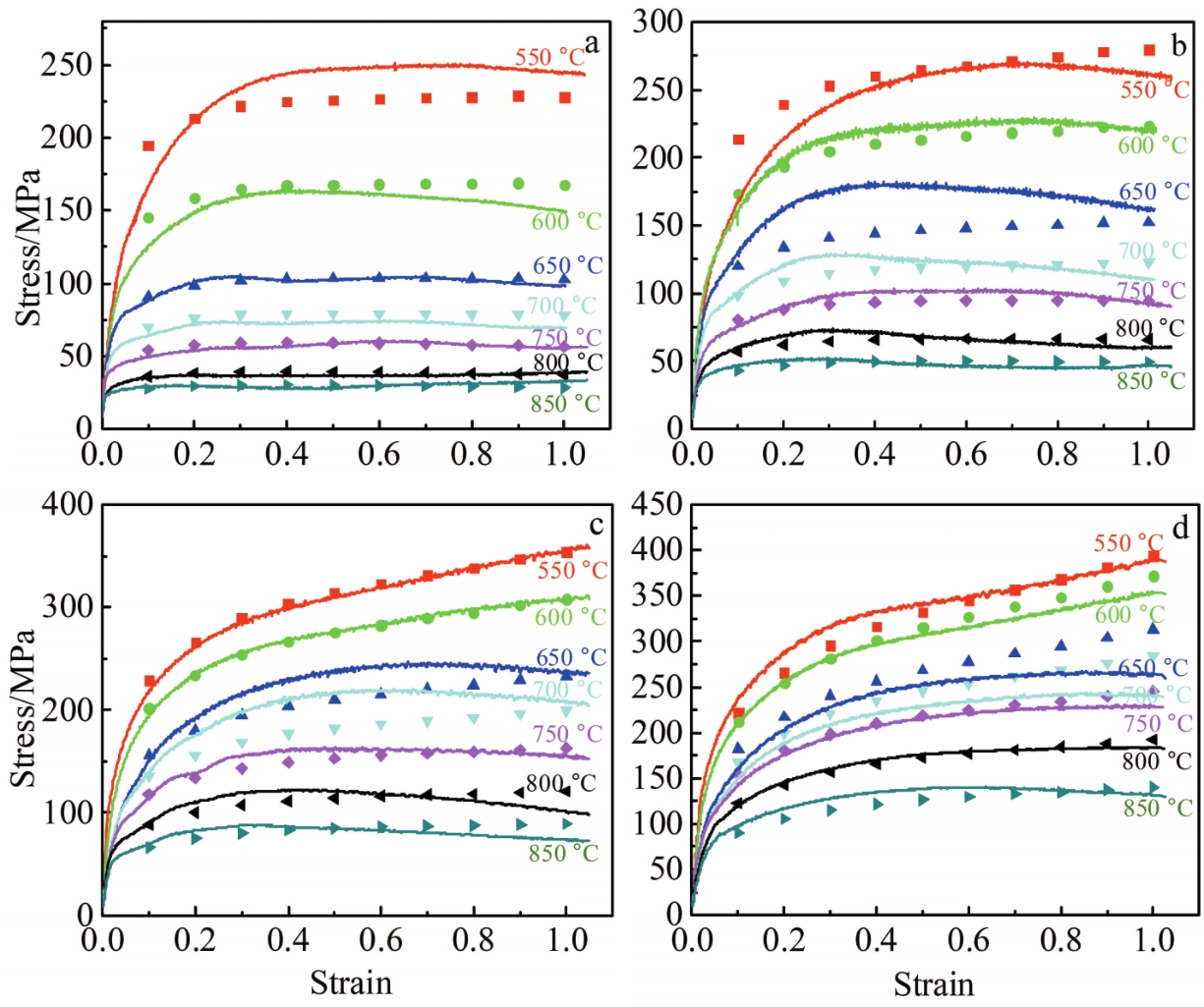

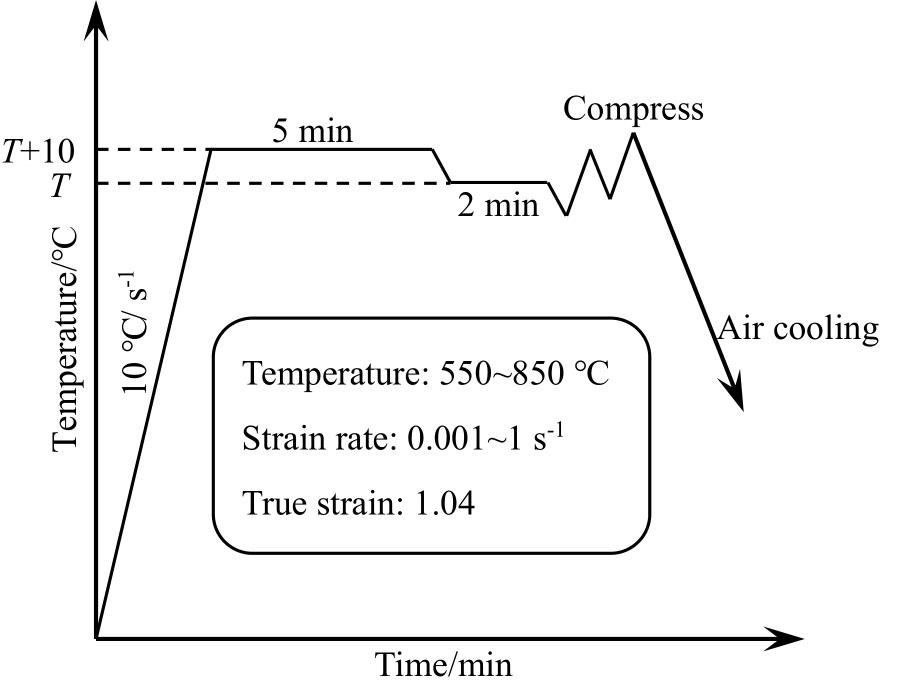

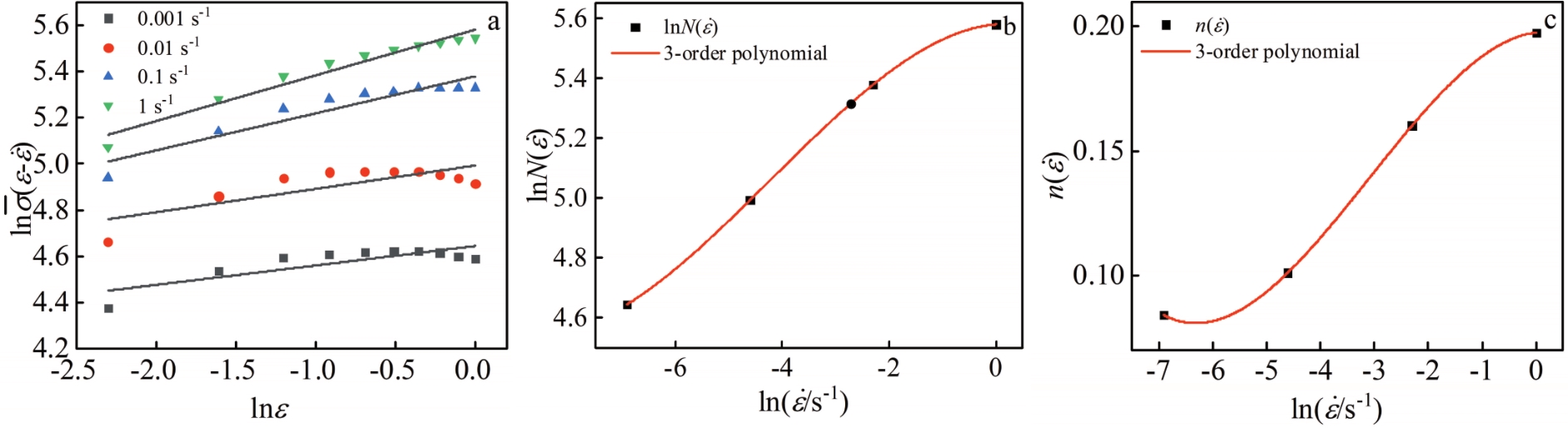

2022, 51(10):3663-3678.
DOI: 10.12442/j.issn.1002-185X.20210858
Abstract:

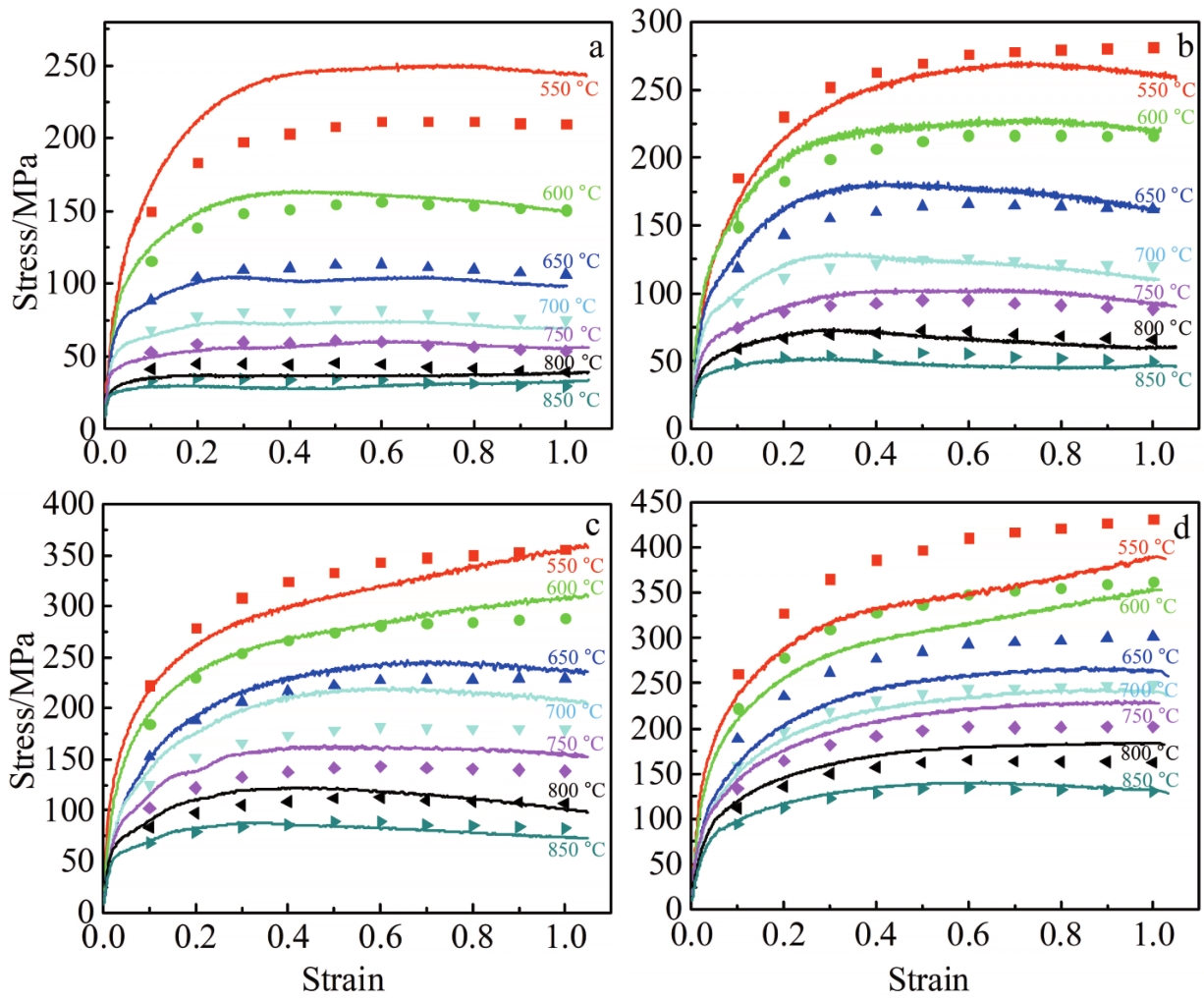

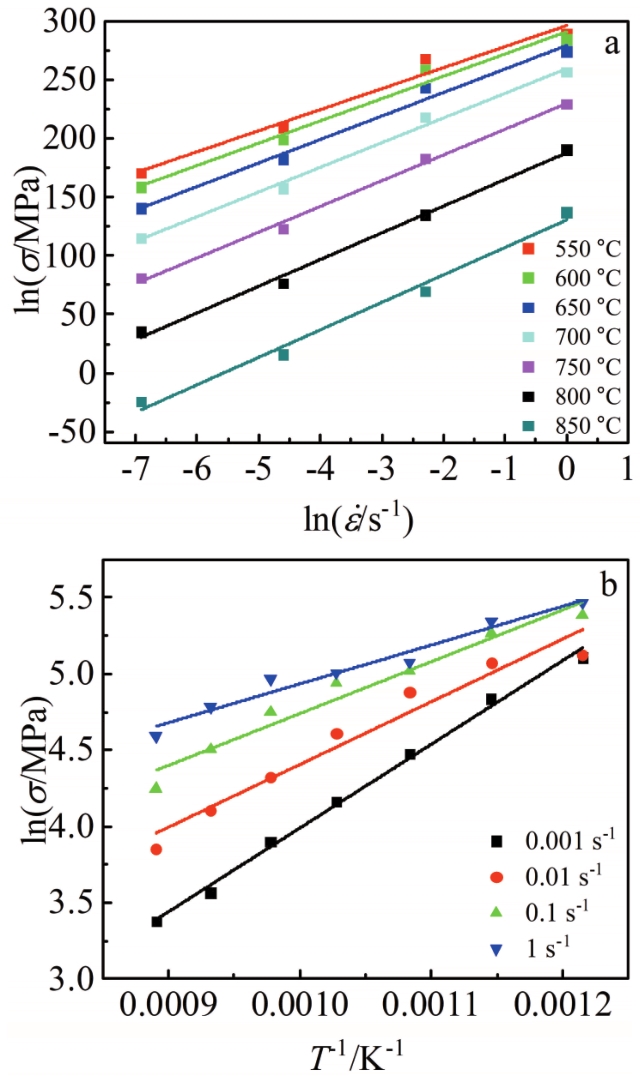

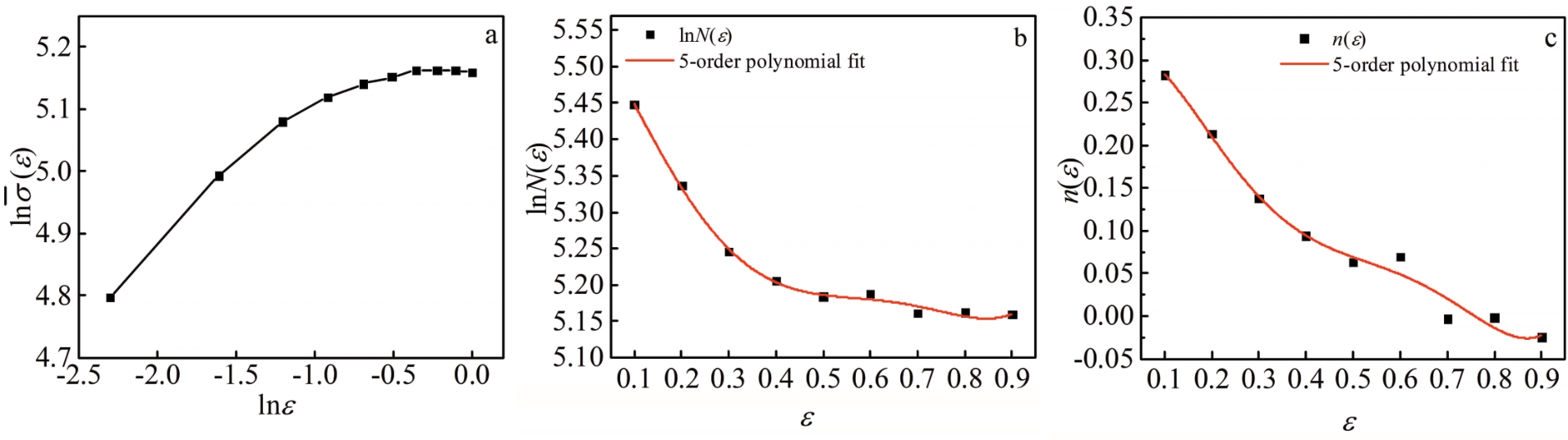

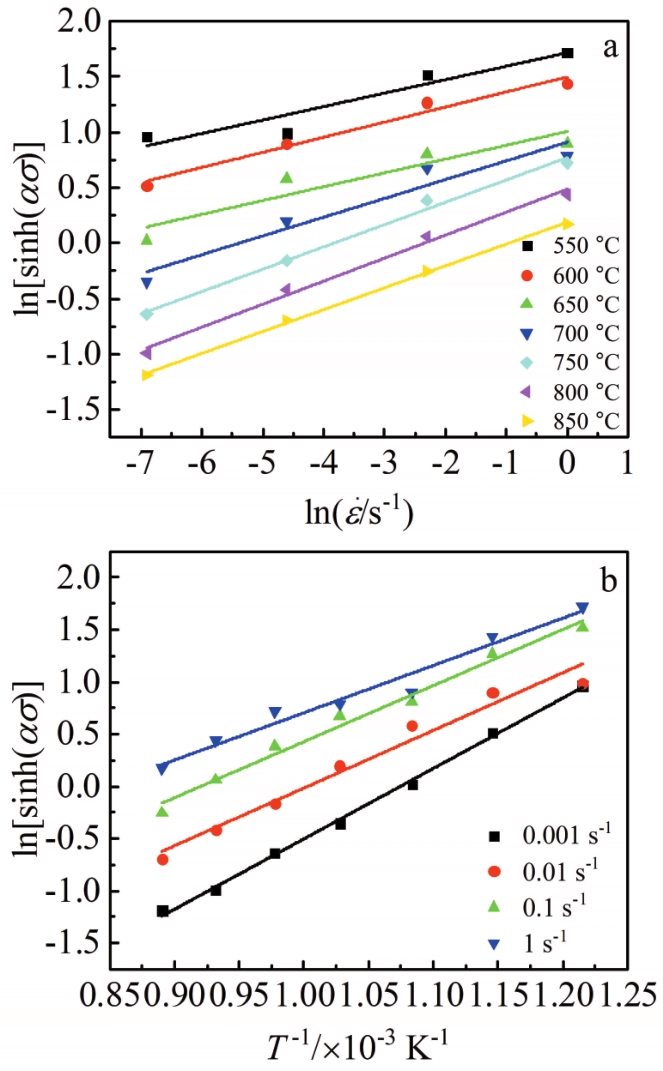

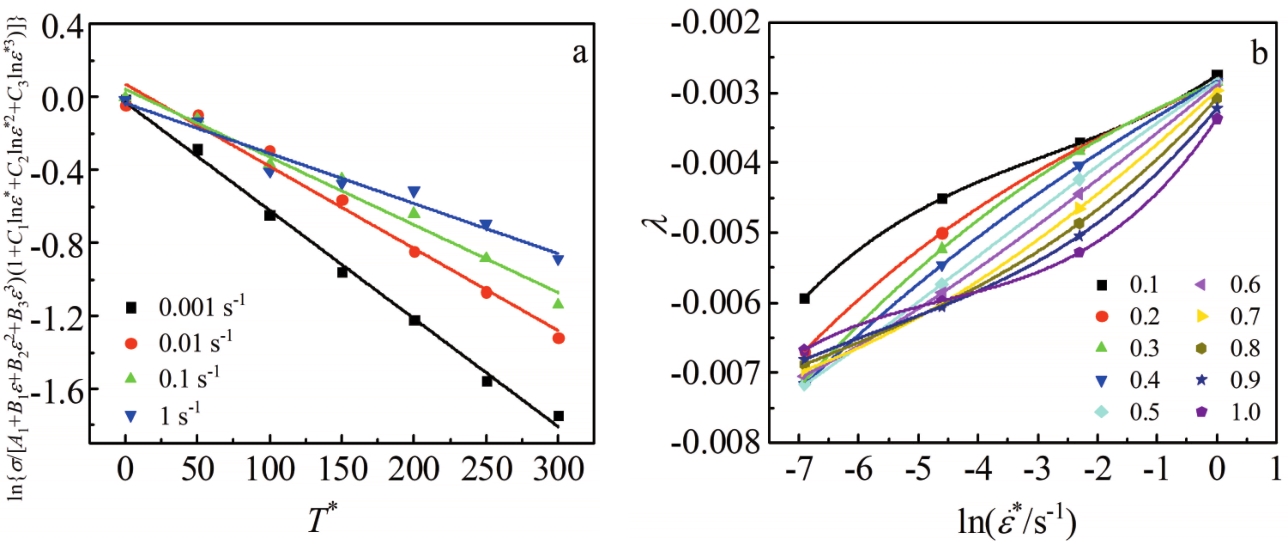

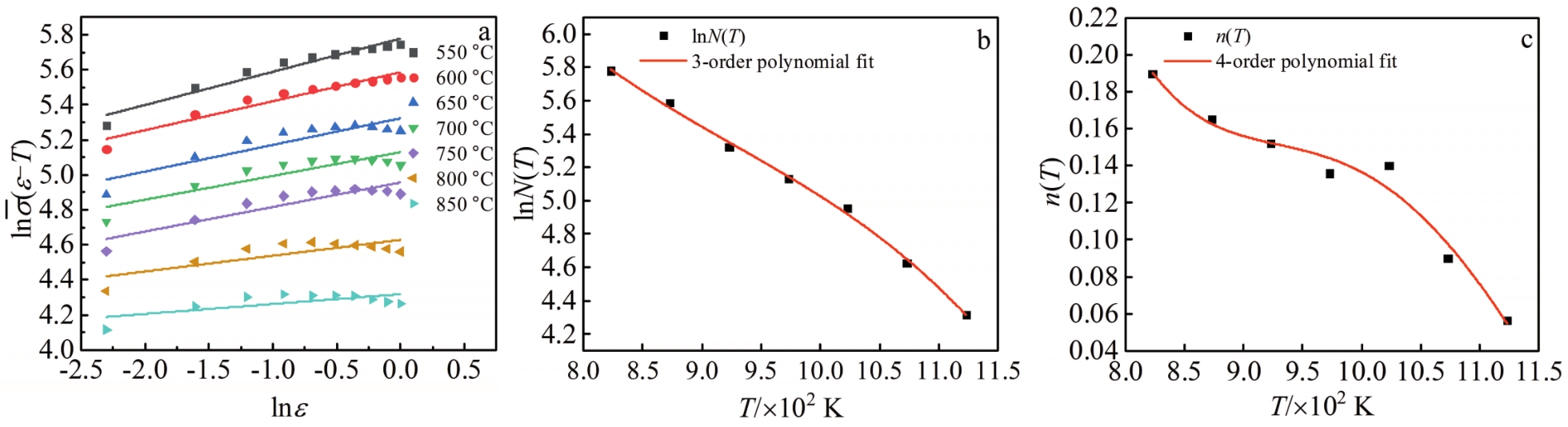

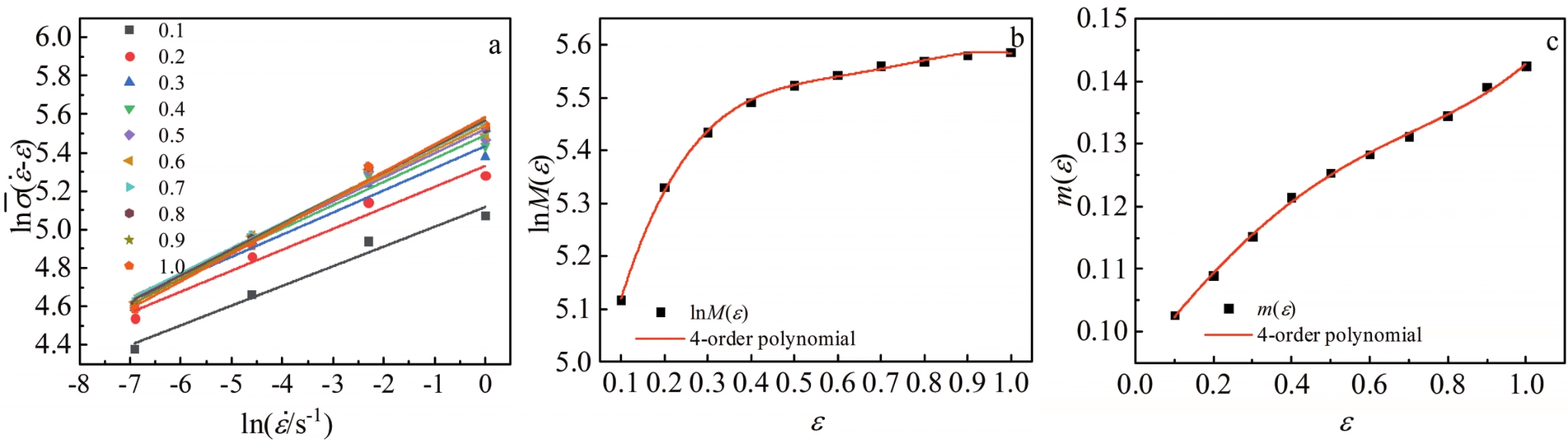

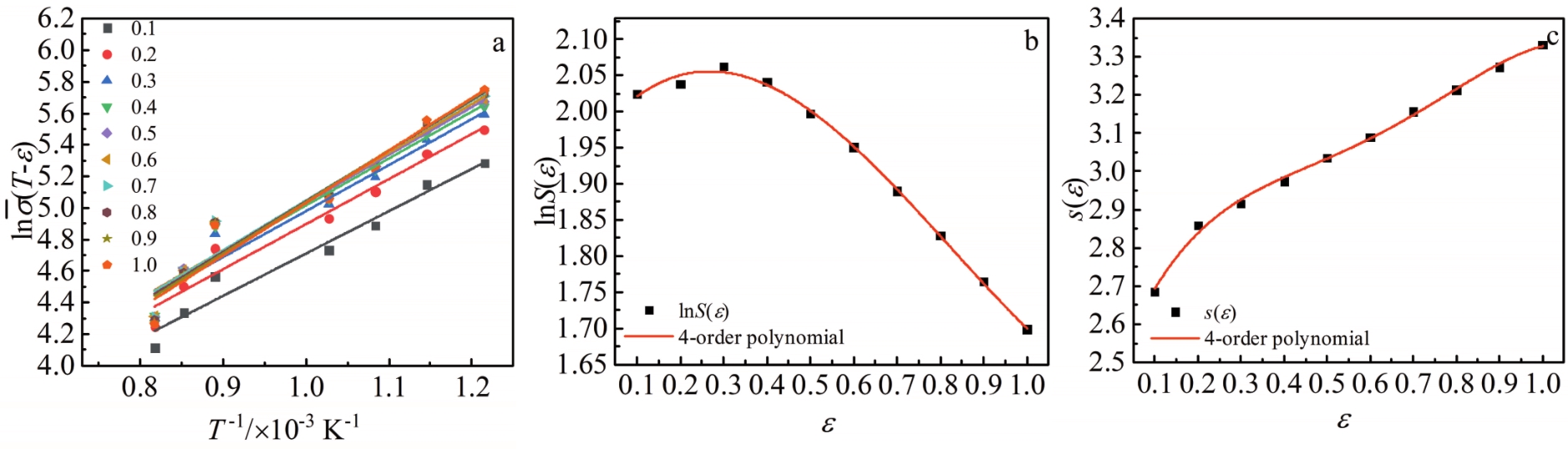

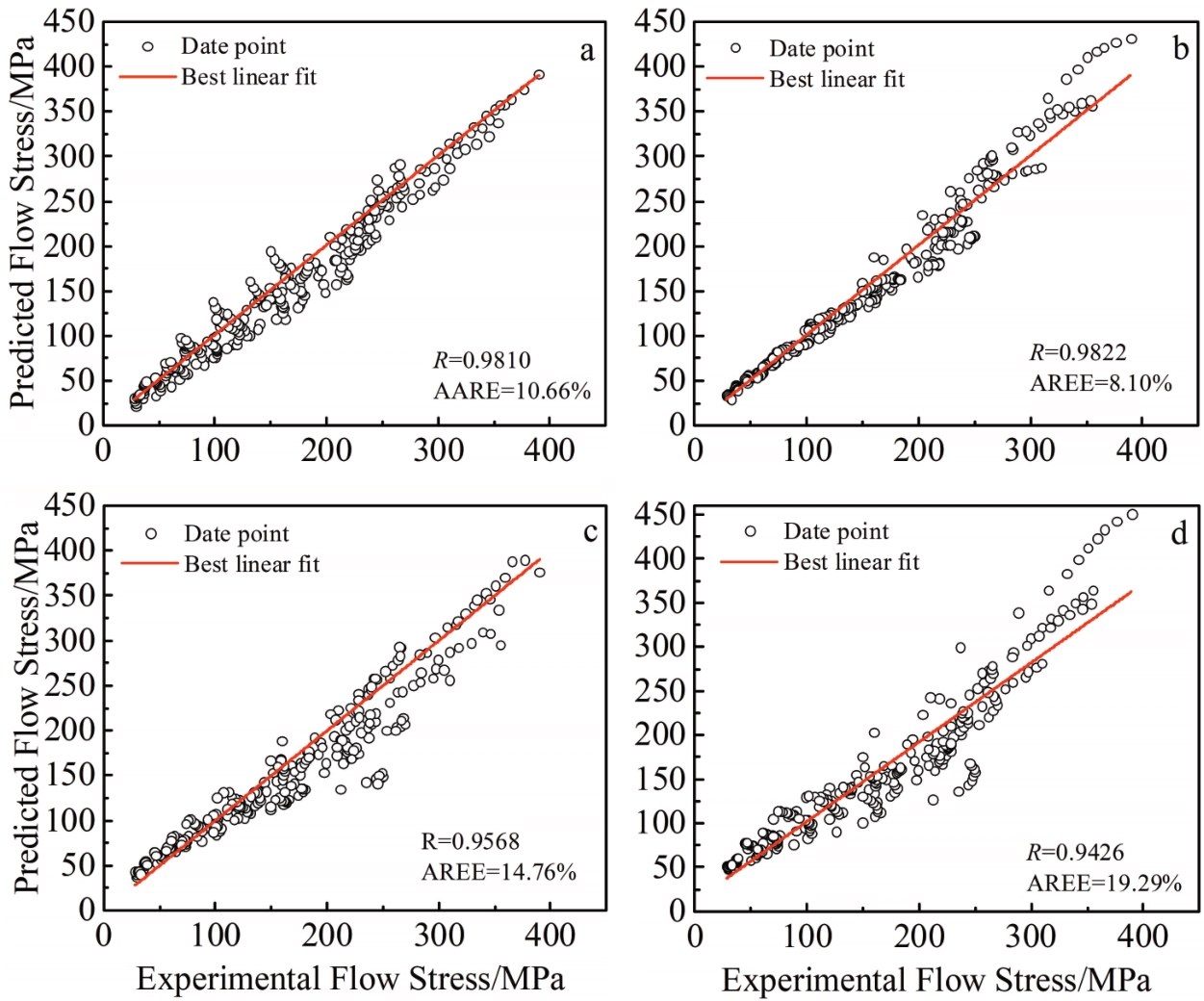

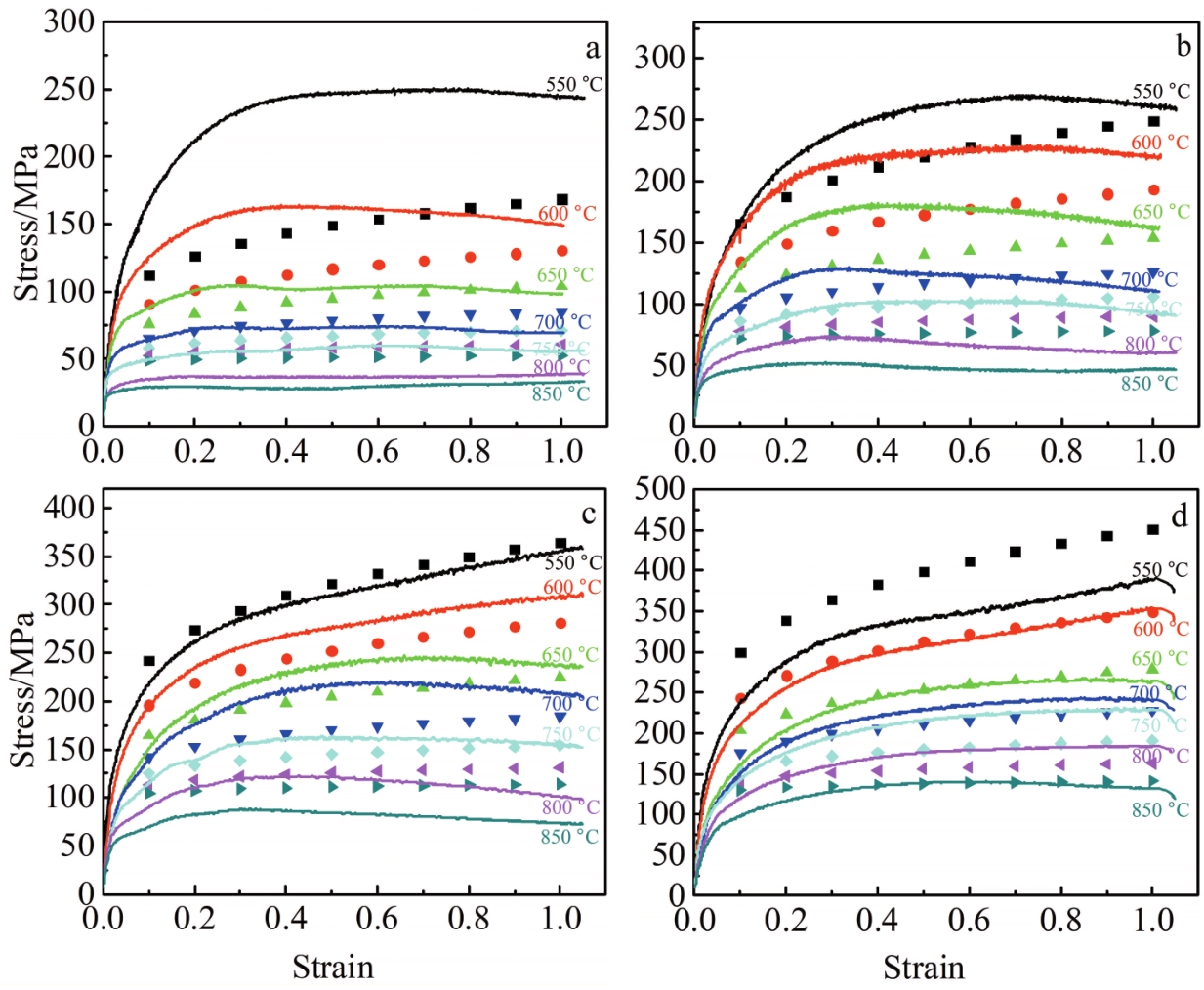

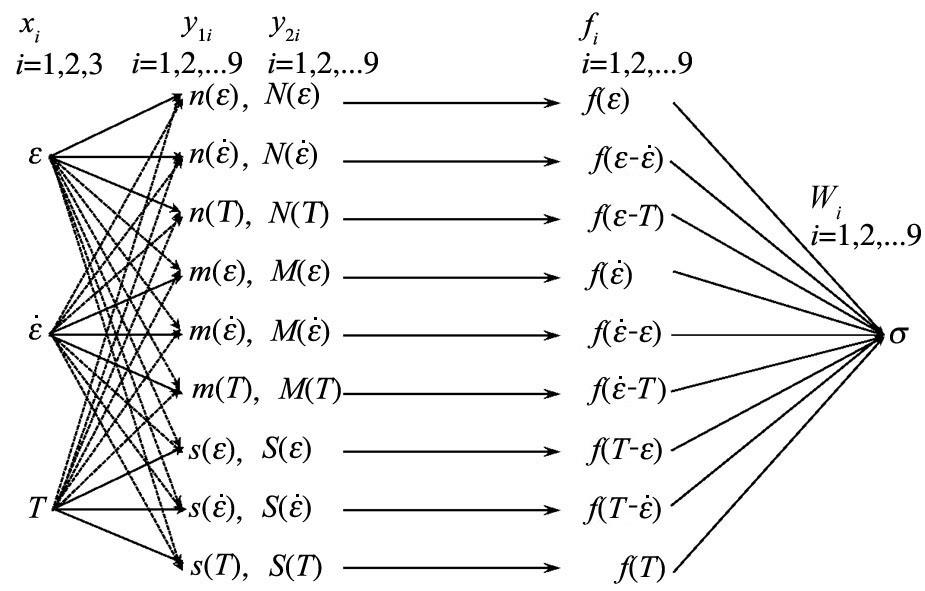

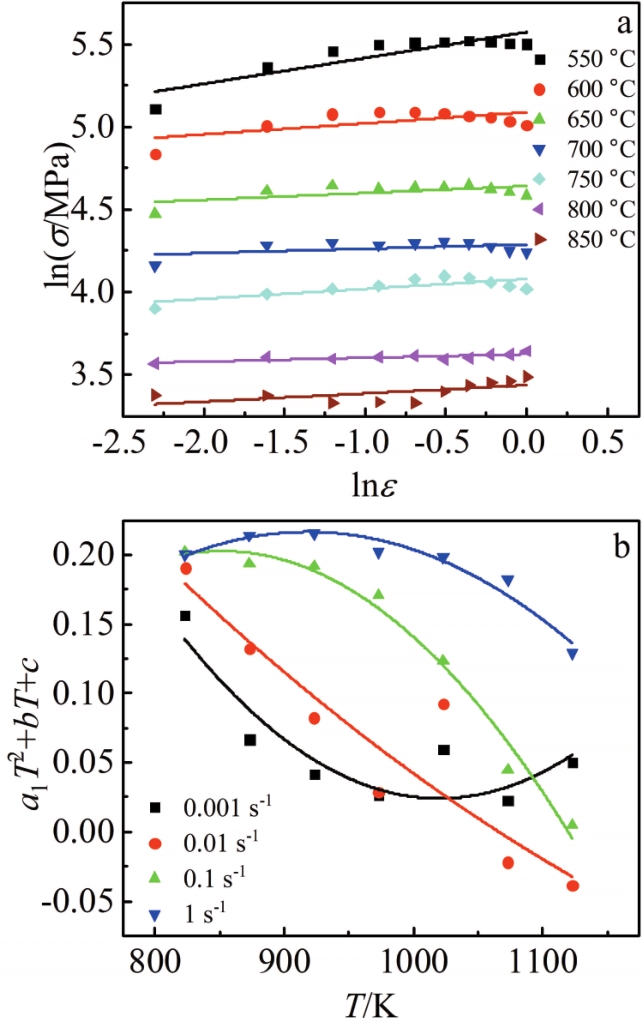

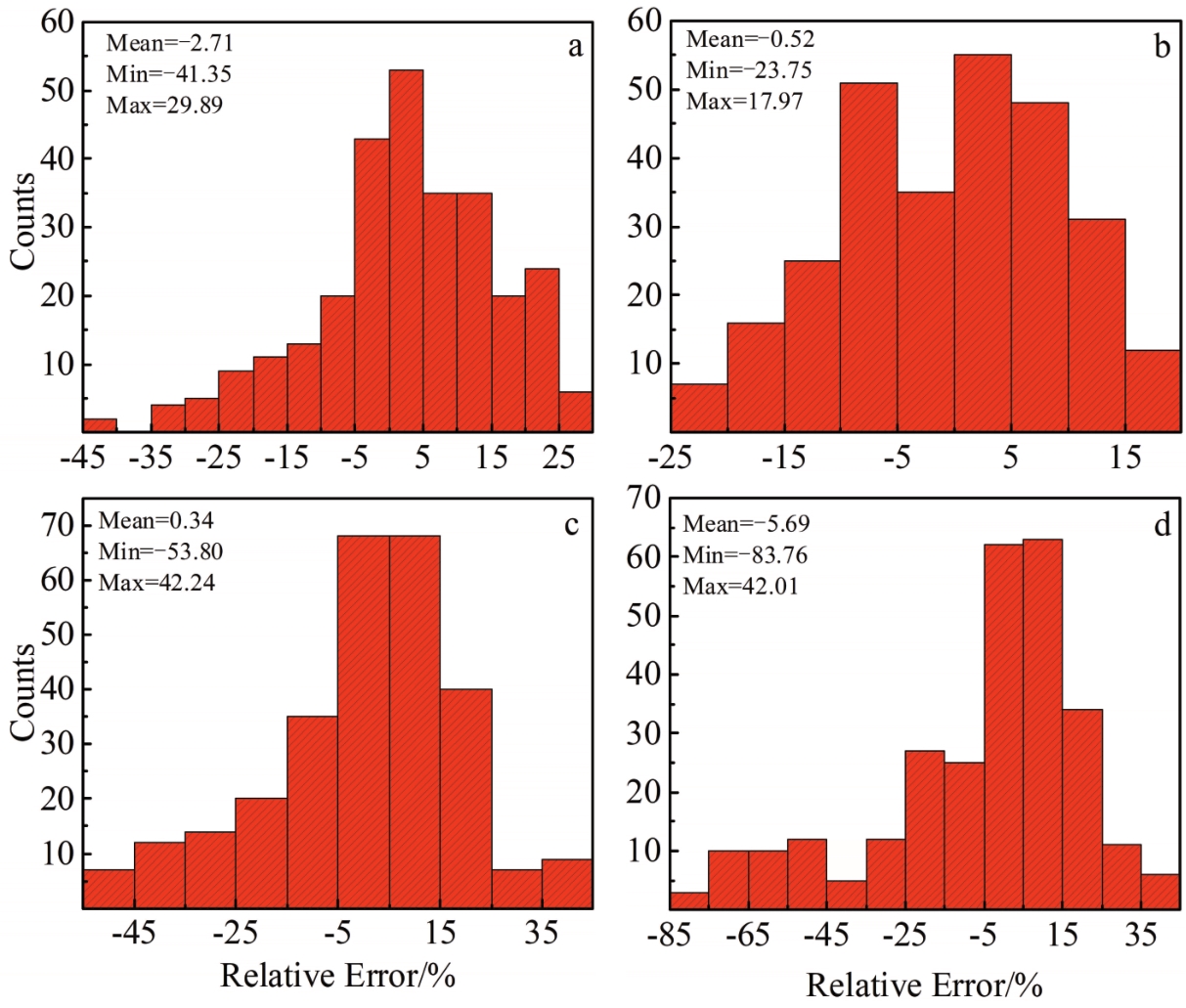

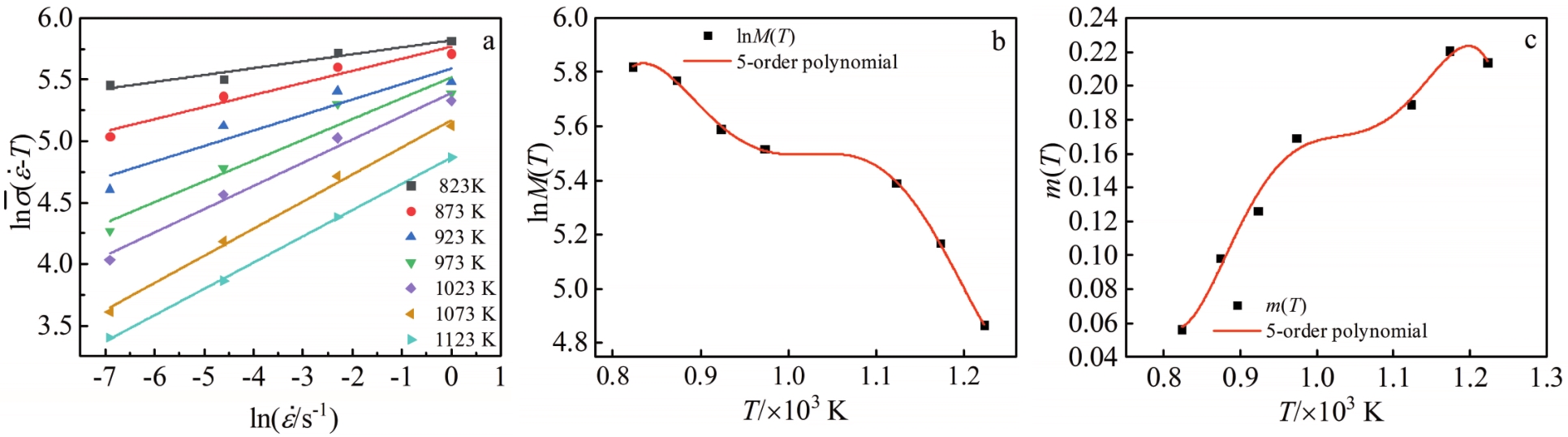

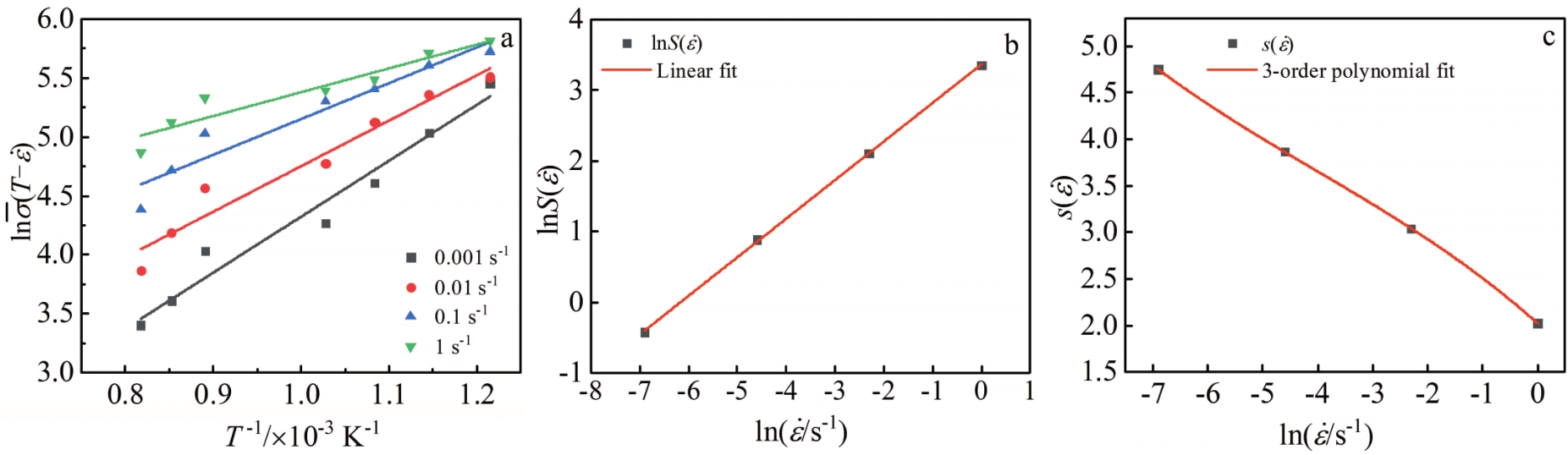

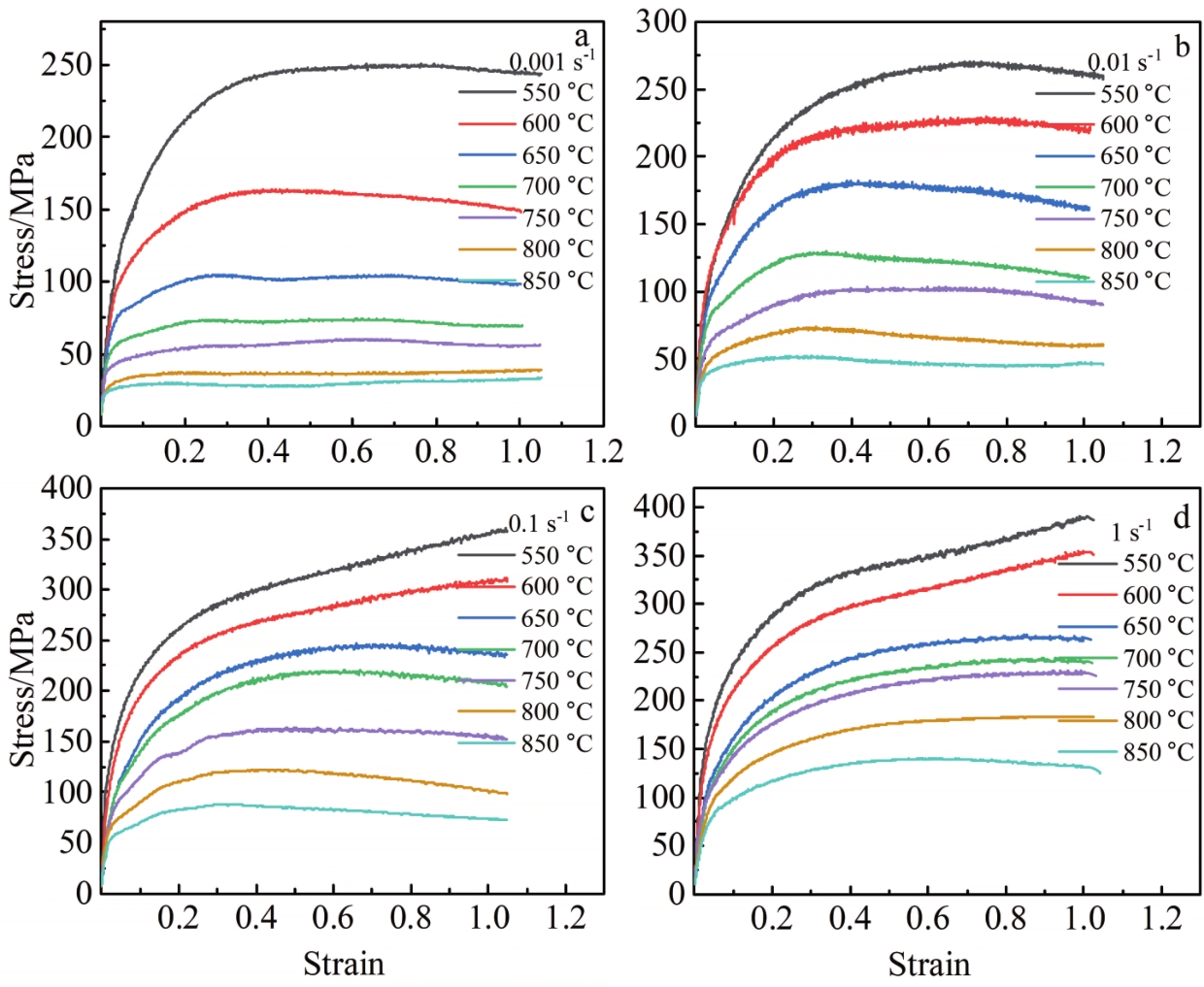

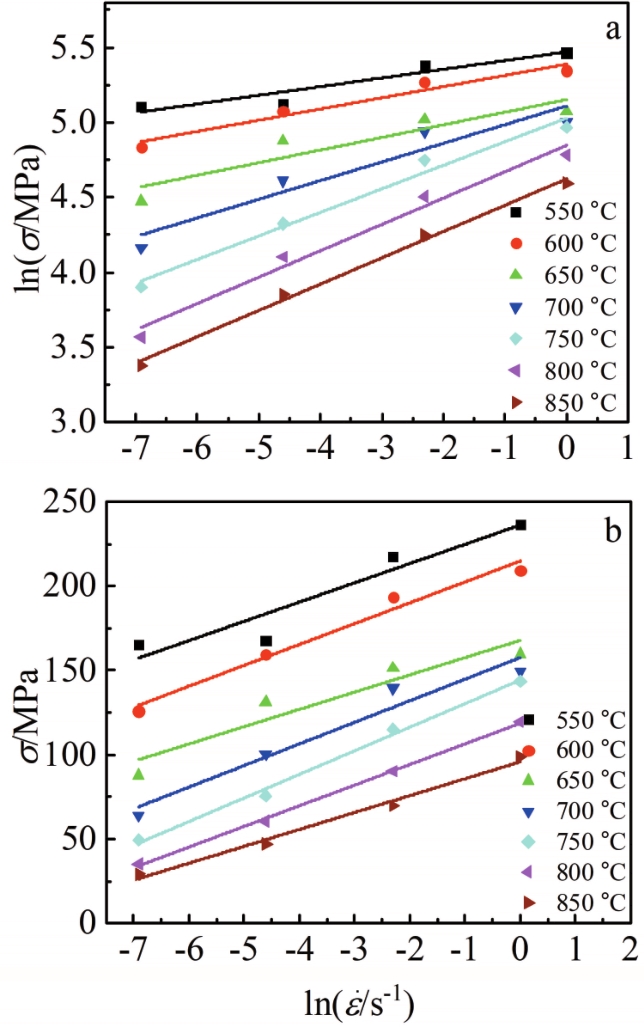

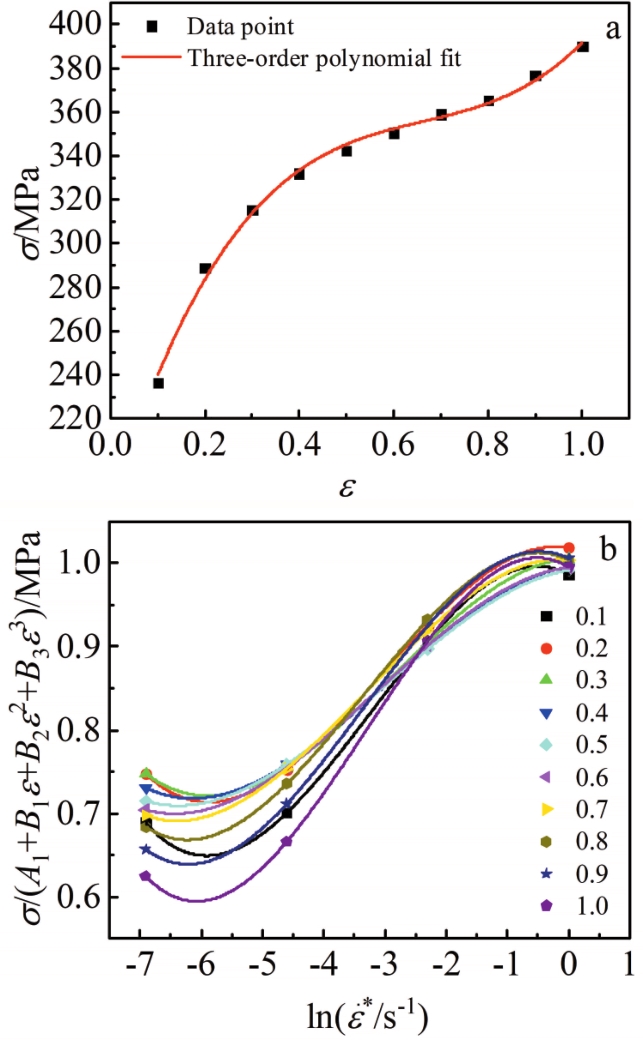

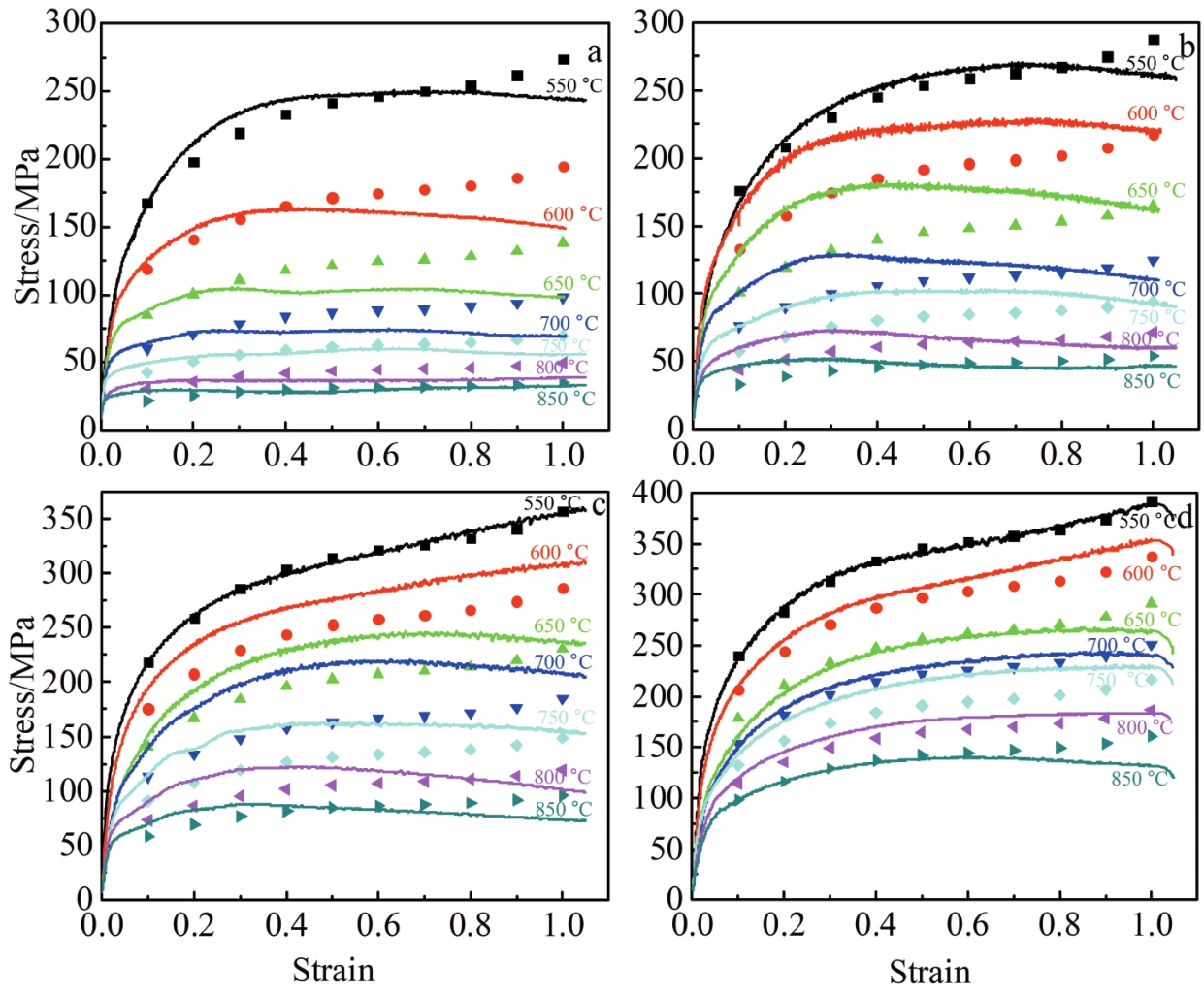

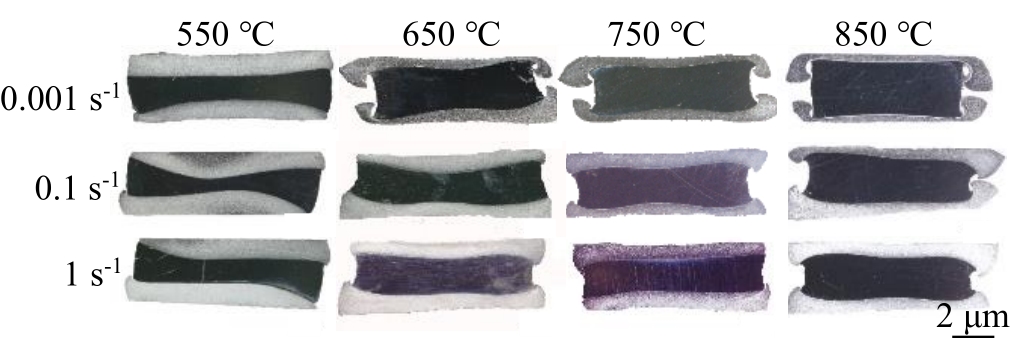

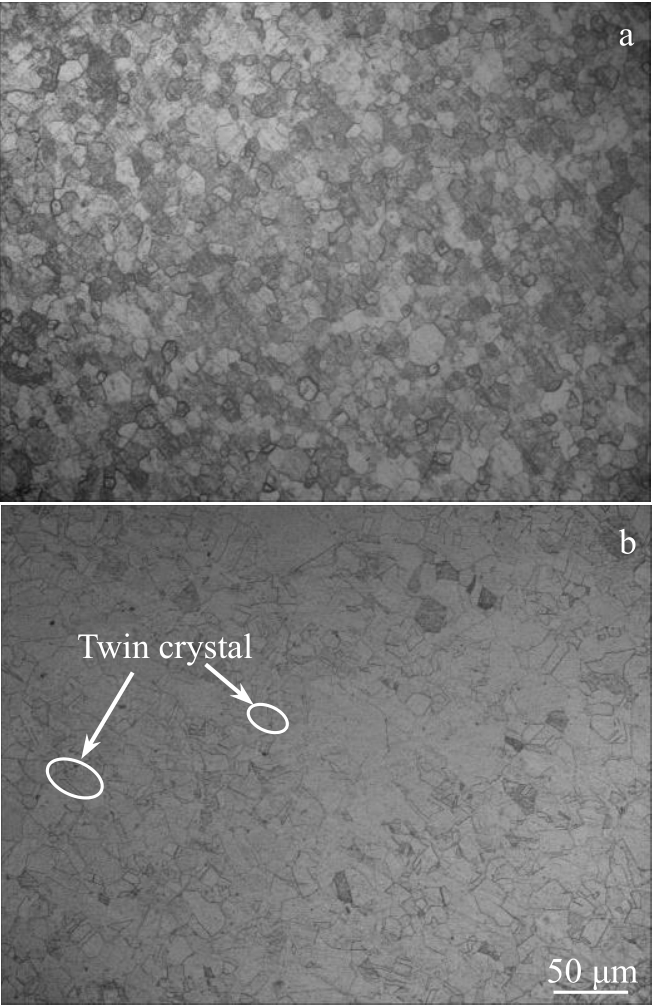

In order to establish a constitutive equation which can reasonably describe the Ti/Ni/Ti laminated composites process, the hot deformation behavior of Ti/Ni/Ti laminated composite during the bonding process was studied on Gleeble-3500 thermo-mechanical simulator at the temperature of 550~850 °C, strain rate of 0.001~1 s-1, and deformation of 65%. Four constitutive models, including modified Johnson-Cook (MJC) model, train compensated Arrhenius (SCA) model, multivariate nonlinear regression (DMNR) model, and modified Inoue Sin (MIS) model were used to predict the elevated temperature flow behavior of laminated composite. A comparative research on the experimental values and the predicted values of the four models was conducted. Besides, the accuracy of the average absolute relative error (AARE), correlation coefficient (R) and the relative error was compared to confirm the reasonability of these four models. Results show that the MJC, DMNR and MIS model are not suitable for the description of flow behavior of Ti/Ni/Ti laminated composites, while the predicted values of SCA model agree well with the experimental values except under some deformation conditions.
In order to establish a constitutive equation which can reasonably describe the Ti/Ni/Ti laminated composites process, the hot deformation behavior of Ti/Ni/Ti laminated composite during the bonding process was studied on Gleeble-3500 thermo-mechanical simulator at the temperature of 550~850 °C, strain rate of 0.001~1 s-1, and deformation of 65%. Four constitutive models, including modified Johnson-Cook (MJC) model, train compensated Arrhenius (SCA) model, multivariate nonlinear regression (DMNR) model, and modified Inoue Sin (MIS) model were used to predict the elevated temperature flow behavior of laminated composite. A comparative research on the experimental values and the predicted values of the four models was conducted. Besides, the accuracy of the average absolute relative error (AARE), correlation coefficient (R) and the relative error was compared to confirm the reasonability of these four models. Results show that the MJC, DMNR and MIS model are not suitable for the description of flow behavior of Ti/Ni/Ti laminated composites, while the predicted values of SCA model agree well with the experimental values except under some deformation conditions.
2022, 51(10):3679-3688.
DOI: 10.12442/j.issn.1002-185X.20210800
Abstract:
First-principles calculations with supercell (SC) method and virtual crystal approximation (VCA) method were preformed to study the formation energy, mixing energy, lattice constant, volume, elastic constants, melting points, elastic modulus, vickers hardness, fracture toughness and density of states of (Ti/Zr)1-x(Ta/Nb)xB2 (0≤x≤1) solid solutions. The formation energy results show that the structural stability of the diboride solid solution of (Ti/Zr)1-x(Ta/Nb)xB2 decreases with the increase of the concentration of doped atoms. The volume of Ti1-x(Ta/Nb)xB2 increases with the increase of the concentration of doped atoms, because the atomic radii of Ta and Nb are larger than Ti. While the volume of Zr1-x(Ta/Nb)xB2 becomes smaller, since the atomic radius of Ta and Nb is smaller than that of Zr. Moreover, the diboride solid solution of (Ti/Zr)1-x(Ta/Nb)xB2 are mechanically stable and brittle materials. In particular, Ta and Nb dopants can significantly improve the brittleness, bulk modulus and fracture toughness of the solid solution (Ti/Zr)1-x(Ta/Nb)xB2, and reduce their vickers hardness.
First-principles calculations with supercell (SC) method and virtual crystal approximation (VCA) method were preformed to study the formation energy, mixing energy, lattice constant, volume, elastic constants, melting points, elastic modulus, vickers hardness, fracture toughness and density of states of (Ti/Zr)1-x(Ta/Nb)xB2 (0≤x≤1) solid solutions. The formation energy results show that the structural stability of the diboride solid solution of (Ti/Zr)1-x(Ta/Nb)xB2 decreases with the increase of the concentration of doped atoms. The volume of Ti1-x(Ta/Nb)xB2 increases with the increase of the concentration of doped atoms, because the atomic radii of Ta and Nb are larger than Ti. While the volume of Zr1-x(Ta/Nb)xB2 becomes smaller, since the atomic radius of Ta and Nb is smaller than that of Zr. Moreover, the diboride solid solution of (Ti/Zr)1-x(Ta/Nb)xB2 are mechanically stable and brittle materials. In particular, Ta and Nb dopants can significantly improve the brittleness, bulk modulus and fracture toughness of the solid solution (Ti/Zr)1-x(Ta/Nb)xB2, and reduce their vickers hardness.
2022, 51(10):3689-3698.
DOI: 10.12442/j.issn.1002-185X.20210841
Abstract:
The anomalous flow behavior of Ni3Alat high temperature is closely related to the cross-slip of super-partial dislocations. Using a first-principles calculation, an impact of Re-effect on dislocation slip mediated creeps in the Ni3Al is investigated. The analysis of energy factors associated with the formation enthalpy of point defects reveals Re prefers to occupy Al sites, and the Re-Re pair prefers to occupy Al-Al sites in γ′-Ni3Al phase. By calculating the generalized stacking fault energies for and systems in Ni3Al, it is found that the Re occupying Al sites can promote the cross-slip of screw dislocations. A longitudinal arrangement of and defects should be able to effectively impede the nucleation and movement of dislocations compared with their horizontal layout. As their interaction is characterized and assessed by a correlation energy function between and point defects, a weak correlation is demonstrated to be favorable for the improvement of the anomalous flow of γ′ phases at high temperature. Re atoms preferentially occupy Al sites for the improvement of yield strengths of Ni3Al can be attributed to a weak repulsive interaction between and defects.
The anomalous flow behavior of Ni3Alat high temperature is closely related to the cross-slip of super-partial dislocations. Using a first-principles calculation, an impact of Re-effect on dislocation slip mediated creeps in the Ni3Al is investigated. The analysis of energy factors associated with the formation enthalpy of point defects reveals Re prefers to occupy Al sites, and the Re-Re pair prefers to occupy Al-Al sites in γ′-Ni3Al phase. By calculating the generalized stacking fault energies for and systems in Ni3Al, it is found that the Re occupying Al sites can promote the cross-slip of screw dislocations. A longitudinal arrangement of and defects should be able to effectively impede the nucleation and movement of dislocations compared with their horizontal layout. As their interaction is characterized and assessed by a correlation energy function between and point defects, a weak correlation is demonstrated to be favorable for the improvement of the anomalous flow of γ′ phases at high temperature. Re atoms preferentially occupy Al sites for the improvement of yield strengths of Ni3Al can be attributed to a weak repulsive interaction between and defects.
2022, 51(10):3699-3706.
DOI: 10.12442/j.issn.1002-185X.20210848
Abstract:
Doping the third element is an important method to promote ordering transition of FePt and reduce the ordering transition temperature. However, it is a great challenge to explore the mechanism of the third element promoting FePt ordering and clarify the role of the third element in FePt ordering transition. Therefore, this work has investigated the effects of Bi element on the lattice constant, formation energy, differential charge density, saturation magnetization and ordering transition temperature of FePt with the first principle density functional theory. The results show that the substitution formation energy of Bi atom replacing Fe atom is lower than that of Pt atom. Bi atom is easier to replace Fe atom. The substitution formation energy of Bi atoms replacing near neighbors is lower than that of far neighbors. Bi atoms tend to aggregate in the lattice. Fe atoms are the main source of magnetism of FePt system. Bi atoms have little effect on the electronic structure and magnetism of FePt. The ordering transition temperature of FePt can obviously be reduced after doping Bi element. In the case of double doping, the lowest ordering transition temperature of FePt system is 623.32 K. The vacancy mechanism plays a leading role in the ordering transition. Bi element reduces the vacancy formation energy of FePt, increases the vacancy concentration of Fe and Pt atoms in the system, and promotes the diffusion and migration of Fe and Pt atoms, so as to promote the ordering transition of FePt.
Doping the third element is an important method to promote ordering transition of FePt and reduce the ordering transition temperature. However, it is a great challenge to explore the mechanism of the third element promoting FePt ordering and clarify the role of the third element in FePt ordering transition. Therefore, this work has investigated the effects of Bi element on the lattice constant, formation energy, differential charge density, saturation magnetization and ordering transition temperature of FePt with the first principle density functional theory. The results show that the substitution formation energy of Bi atom replacing Fe atom is lower than that of Pt atom. Bi atom is easier to replace Fe atom. The substitution formation energy of Bi atoms replacing near neighbors is lower than that of far neighbors. Bi atoms tend to aggregate in the lattice. Fe atoms are the main source of magnetism of FePt system. Bi atoms have little effect on the electronic structure and magnetism of FePt. The ordering transition temperature of FePt can obviously be reduced after doping Bi element. In the case of double doping, the lowest ordering transition temperature of FePt system is 623.32 K. The vacancy mechanism plays a leading role in the ordering transition. Bi element reduces the vacancy formation energy of FePt, increases the vacancy concentration of Fe and Pt atoms in the system, and promotes the diffusion and migration of Fe and Pt atoms, so as to promote the ordering transition of FePt.
2022, 51(10):3707-3715.
DOI: 10.12442/j.issn.1002-185X.20210798
Abstract:
The mechanical properties of metals are closely related to the microstructure. As the most common solidified microstructure, dendrite has a great influence on the microstructure, and the change of temperature has a significant influence on the microstructure. Domestic and foreign scholar have carried out a lot of studies on the relationship between dendrite growth state and the properties of alloys, however, the study of microstructure growth in uniform temperature field usually ignores the effect of temperature on dendrite growth, which has certain limitations. Therefore, an improved cellular automata model was used to study the effect of temperature variation on dendrite growth in a non-uniform temperature field. The dendrite morphology, dendrite tip growth rate and solute distribution in melt were compared and analyzed under non-uniform temperature field and uniform temperature field. The results show that the dendrite morphology and solute distribution in melt are significantly changed with the change of temperature during the growth process of single dendrite. When the initial undercooling degree is 10K in the undercooled melt, the dendritic arm length of the solidification terminal reaches 1030μm at a cooling rate of 10K/s, which is increased by 49.3% compared with the dendritic arm length of uniform temperature field under the same conditions. When the cooling rate reaches 30K/s, the length of dendrite arm reaches 1460μm, which increases by 111.6%. As the cooling rate increases, the concentration of solid solute in the dendrite increases, but the solute fluctuated at the solid-liquid interface, which results in the non-conservation of solute concentration at the solid-liquid interface and irregular distribution, and more lateral dendrite arms appear. For the growth of multi-dendrite, the solid fraction of the alloy reaches 45% at the cooling rate of 10K/s, which is 15.9% higher than that at isothermal condition. When the cooling rate is up to 30K/s, the solidification area of the alloy accounts for 65%, an increase of 35.9% compared with that in the isothermal state. At the same time, several dendrite arms and the coarsening of dendrite arms are observed in the model domain.
The mechanical properties of metals are closely related to the microstructure. As the most common solidified microstructure, dendrite has a great influence on the microstructure, and the change of temperature has a significant influence on the microstructure. Domestic and foreign scholar have carried out a lot of studies on the relationship between dendrite growth state and the properties of alloys, however, the study of microstructure growth in uniform temperature field usually ignores the effect of temperature on dendrite growth, which has certain limitations. Therefore, an improved cellular automata model was used to study the effect of temperature variation on dendrite growth in a non-uniform temperature field. The dendrite morphology, dendrite tip growth rate and solute distribution in melt were compared and analyzed under non-uniform temperature field and uniform temperature field. The results show that the dendrite morphology and solute distribution in melt are significantly changed with the change of temperature during the growth process of single dendrite. When the initial undercooling degree is 10K in the undercooled melt, the dendritic arm length of the solidification terminal reaches 1030μm at a cooling rate of 10K/s, which is increased by 49.3% compared with the dendritic arm length of uniform temperature field under the same conditions. When the cooling rate reaches 30K/s, the length of dendrite arm reaches 1460μm, which increases by 111.6%. As the cooling rate increases, the concentration of solid solute in the dendrite increases, but the solute fluctuated at the solid-liquid interface, which results in the non-conservation of solute concentration at the solid-liquid interface and irregular distribution, and more lateral dendrite arms appear. For the growth of multi-dendrite, the solid fraction of the alloy reaches 45% at the cooling rate of 10K/s, which is 15.9% higher than that at isothermal condition. When the cooling rate is up to 30K/s, the solidification area of the alloy accounts for 65%, an increase of 35.9% compared with that in the isothermal state. At the same time, several dendrite arms and the coarsening of dendrite arms are observed in the model domain.
2022, 51(10):3716-3721.
DOI: 10.12442/j.issn.1002-185X.20210822
Abstract:

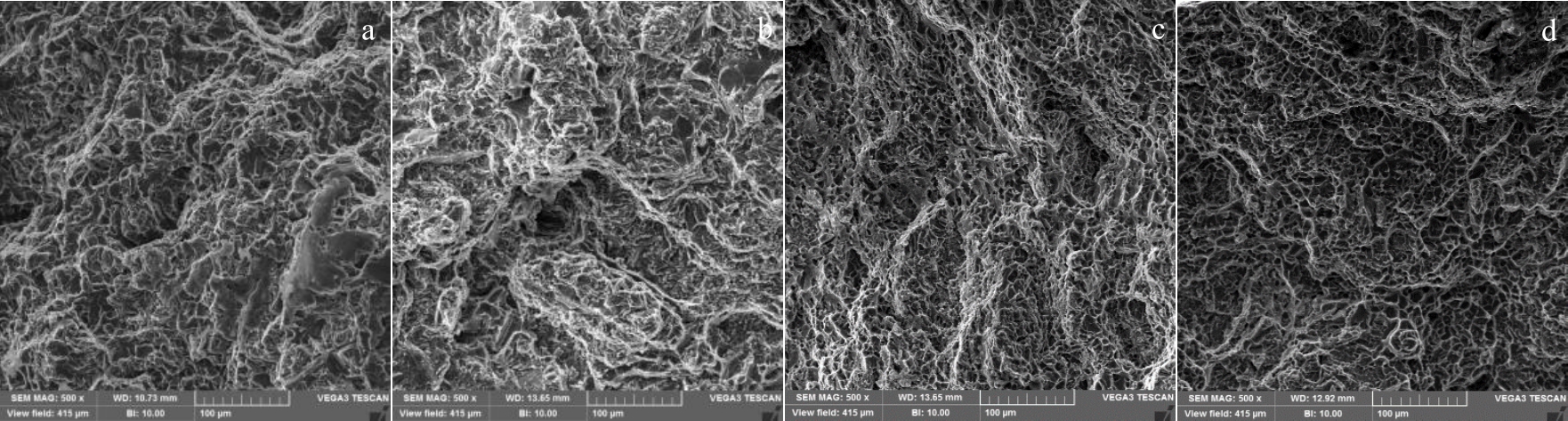

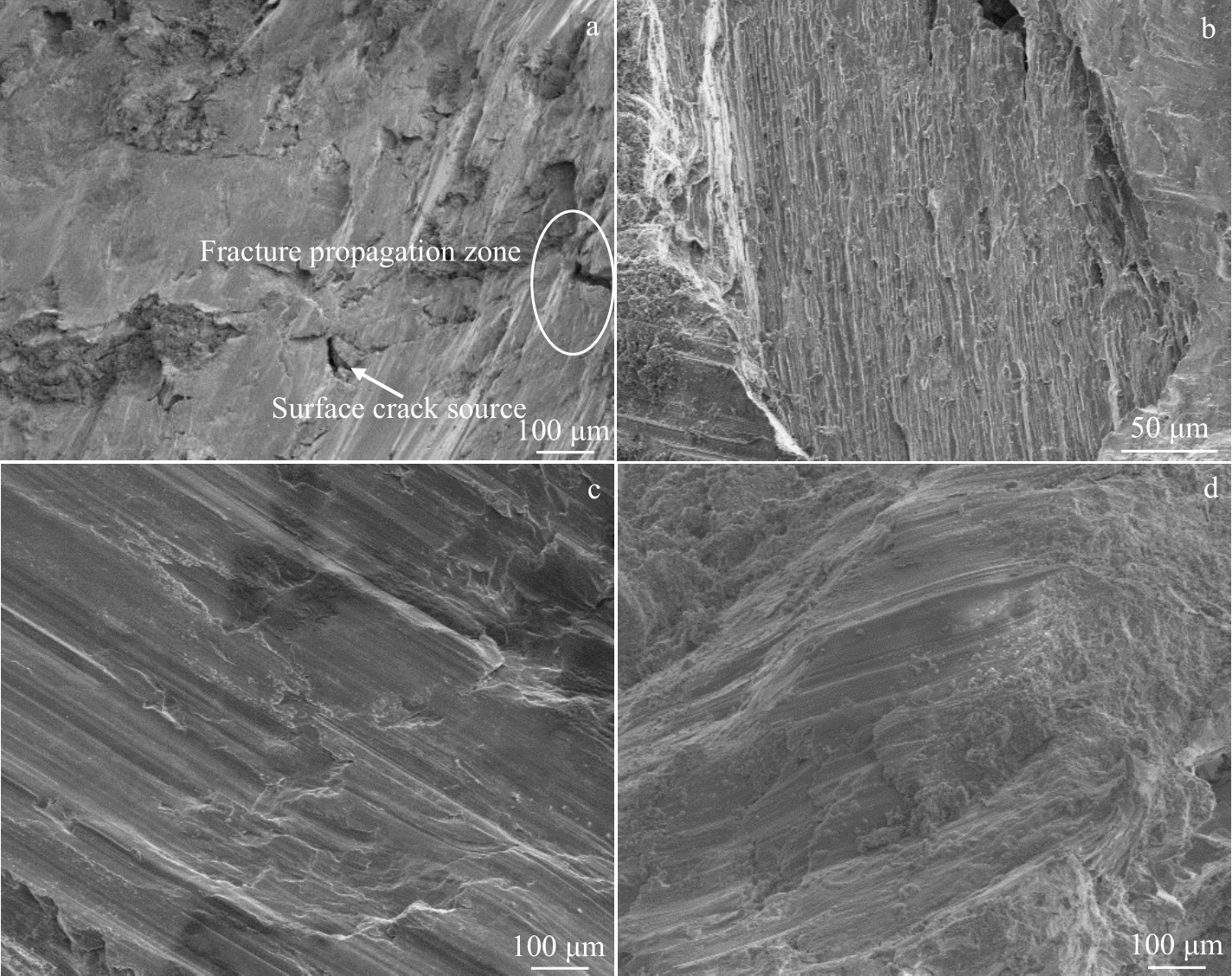

Ti-44Al-3Ta-0.3(Cr,W) (at%) bars were prepared by the hot canned extrusion. The as-extruded (AE)and heat-treatment structure（HT）microstructure, the tensile properties and fracture morphology of the bars were investigated by SEM、XRD、TEM . The results show that the yield strength of the two kinds of microstructure decreases with the increase of the tensile temperature, and the peak stress value increases with the increase of the temperature from room temperature to 600℃. The ultimate strain value of the extrusion microstructure is slightly higher than that of the heat treatment. The brittle-toughness transition (BDT) temperature of the alloy is around 800℃. The room temperature fracture of the extruded microstructure is mainly controlled by the mixed fracture modes of inter-lamellar and tans-lamellar fracture, and there are secondary cracks on the fracture surface. The tensile temperature has affected the size, the lamellar thickness, twin and phase transformation in the two kinds of the microstructure.
Ti-44Al-3Ta-0.3(Cr,W) (at%) bars were prepared by the hot canned extrusion. The as-extruded (AE)and heat-treatment structure（HT）microstructure, the tensile properties and fracture morphology of the bars were investigated by SEM、XRD、TEM . The results show that the yield strength of the two kinds of microstructure decreases with the increase of the tensile temperature, and the peak stress value increases with the increase of the temperature from room temperature to 600℃. The ultimate strain value of the extrusion microstructure is slightly higher than that of the heat treatment. The brittle-toughness transition (BDT) temperature of the alloy is around 800℃. The room temperature fracture of the extruded microstructure is mainly controlled by the mixed fracture modes of inter-lamellar and tans-lamellar fracture, and there are secondary cracks on the fracture surface. The tensile temperature has affected the size, the lamellar thickness, twin and phase transformation in the two kinds of the microstructure.
